10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

Walk-Behind Mower

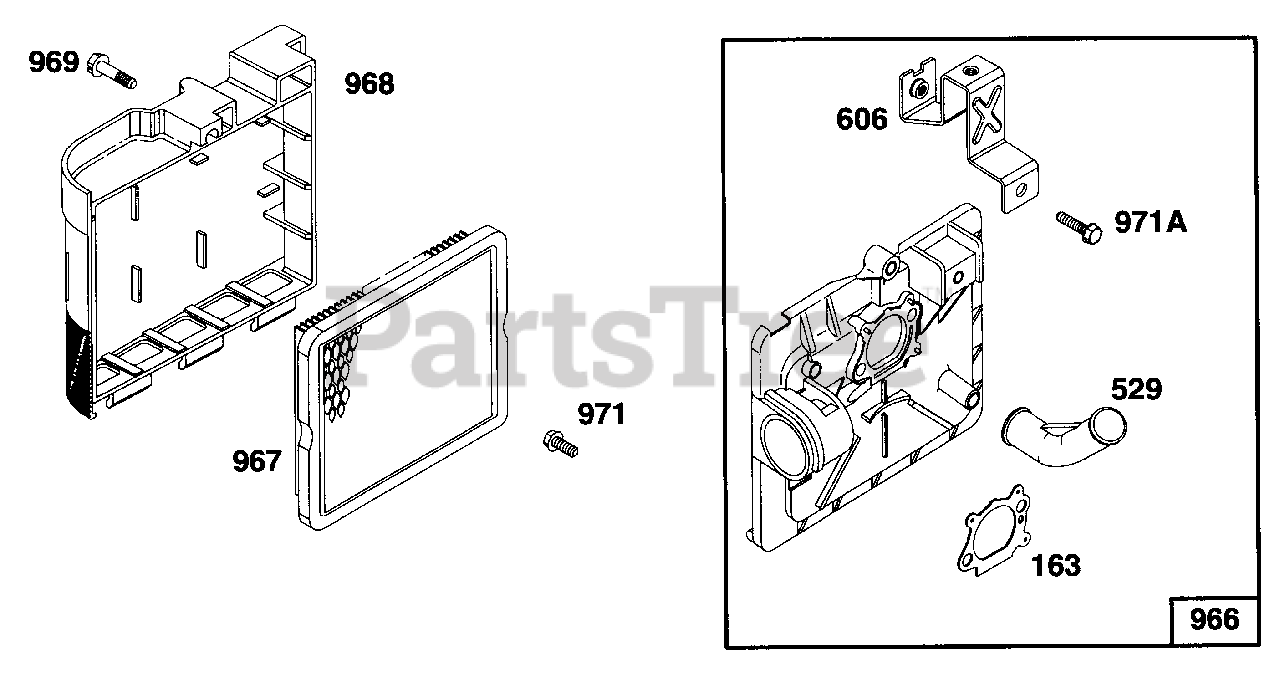

ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

  • Title
121

Lawn-Boy 493762

Carburetor Kit

$

$

Currently unavailable

163

Lawn-Boy 272653

Gasket-Air Cleaner

$

$

Currently unavailable

358

Lawn-Boy 496117

Gasket Set

$

$

Currently unavailable

529

Lawn-Boy 281299

Grommet-Breather

$

$

Currently unavailable

606

Lawn-Boy 224815

Strap-Bracket

$

$

Currently unavailable

966

Lawn-Boy 496116

Base-Air Cleaner

$

$

Currently unavailable

967

Lawn-Boy 491588

Filter-Air

$

$

Currently unavailable

968

Lawn-Boy 281340

Cover-Air Cleaner

$

$

Currently unavailable

969

Lawn-Boy 94120

Screw-Cover Mtg.

$

$

Currently unavailable

971

Lawn-Boy 94121

Screw-Air Cleaner

$

$

Currently unavailable

971A

Lawn-Boy 94749

Screw-Hex. Head

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable

1058

Lawn-Boy 272262

Owner's Manual

$

$

Currently unavailable

977

Lawn-Boy 490937

Gasket Set-Carburetor

$

$

Currently unavailable
