10761 B - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

Walk-Behind Mower

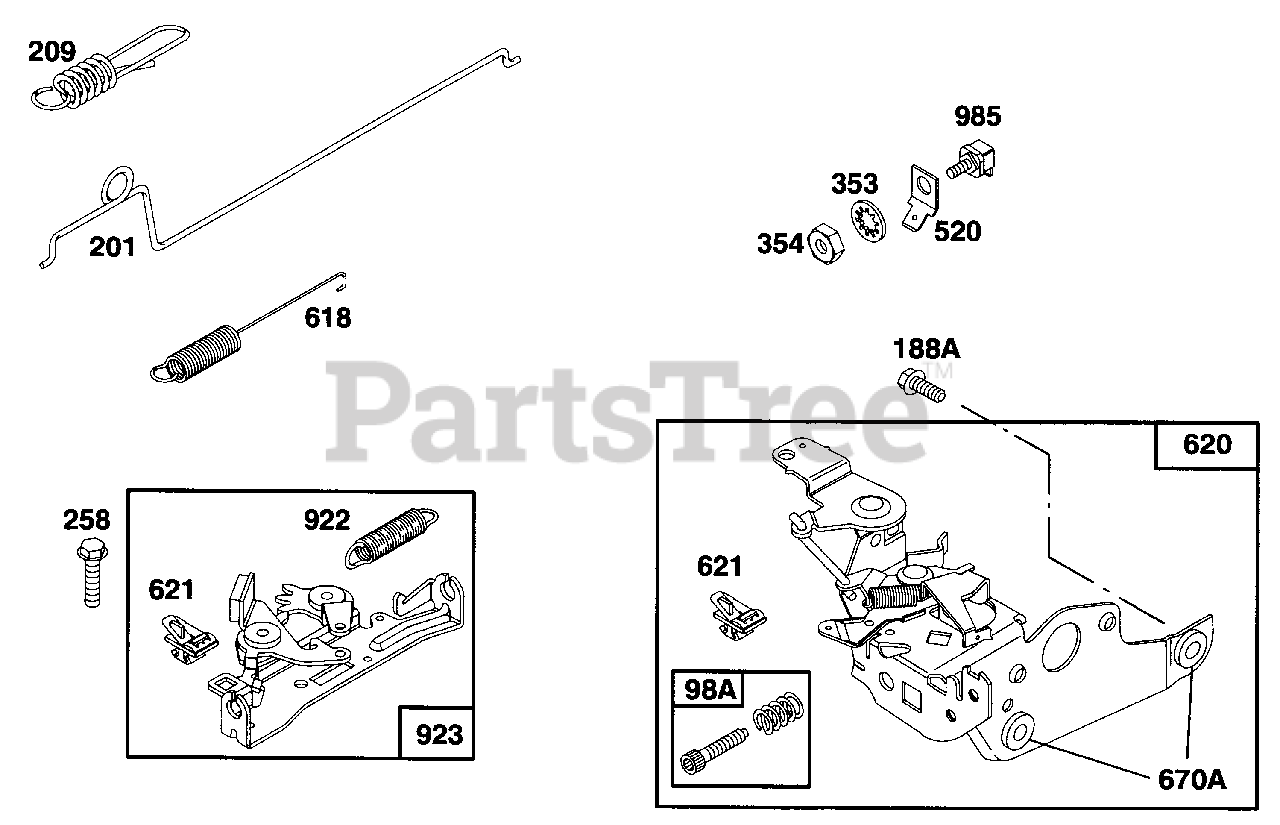

ENGINE BRIGGS & STRATTON MODEL 124802-3242-01 Parts Diagram

  • Title
98A

Lawn-Boy 493280

Screw-Speed Adjust

$

$

Currently unavailable

121

Lawn-Boy 493762

Carburetor Kit

$

$

Currently unavailable

188A

Lawn-Boy 94644

Screw-Hex. Head

$

$

Currently unavailable

201

Lawn-Boy 262579

Link-Governor

$

$

Currently unavailable

209

Lawn-Boy 262662

Spring-Governor

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

$

$

Currently unavailable

353

Lawn-Boy 92791

Washer-Lock

$

$

Currently unavailable

354

Lawn-Boy 90576

Nut-Hex.

$

$

Currently unavailable

358

Lawn-Boy 496117

Gasket Set

$

$

Currently unavailable

520

Lawn-Boy 93722

Terminal-Spade

$

$

Currently unavailable

618

Lawn-Boy 262749

Spring-Return

$

$

Currently unavailable

620

Lawn-Boy 495975

Bracket-Carburetor

$

$

Currently unavailable

621

Lawn-Boy 396847

Switch-Stop

$

$

Currently unavailable

670A

Lawn-Boy 493823

Spacer-Bracket

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

$

$

Currently unavailable

923

Lawn-Boy 493442

Brake Assembly

$

$

Currently unavailable

977

Lawn-Boy 490937

Gasket Set-Carburetor

$

$

Currently unavailable

985

Lawn-Boy 398525

Insulator

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

$

$

Currently unavailable

1058

Lawn-Boy 272262

Owner's Manual

$

$

Currently unavailable
