10760 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ELECTRIC STARTER ASSEMBLY Parts Diagram

Walk-Behind Mower

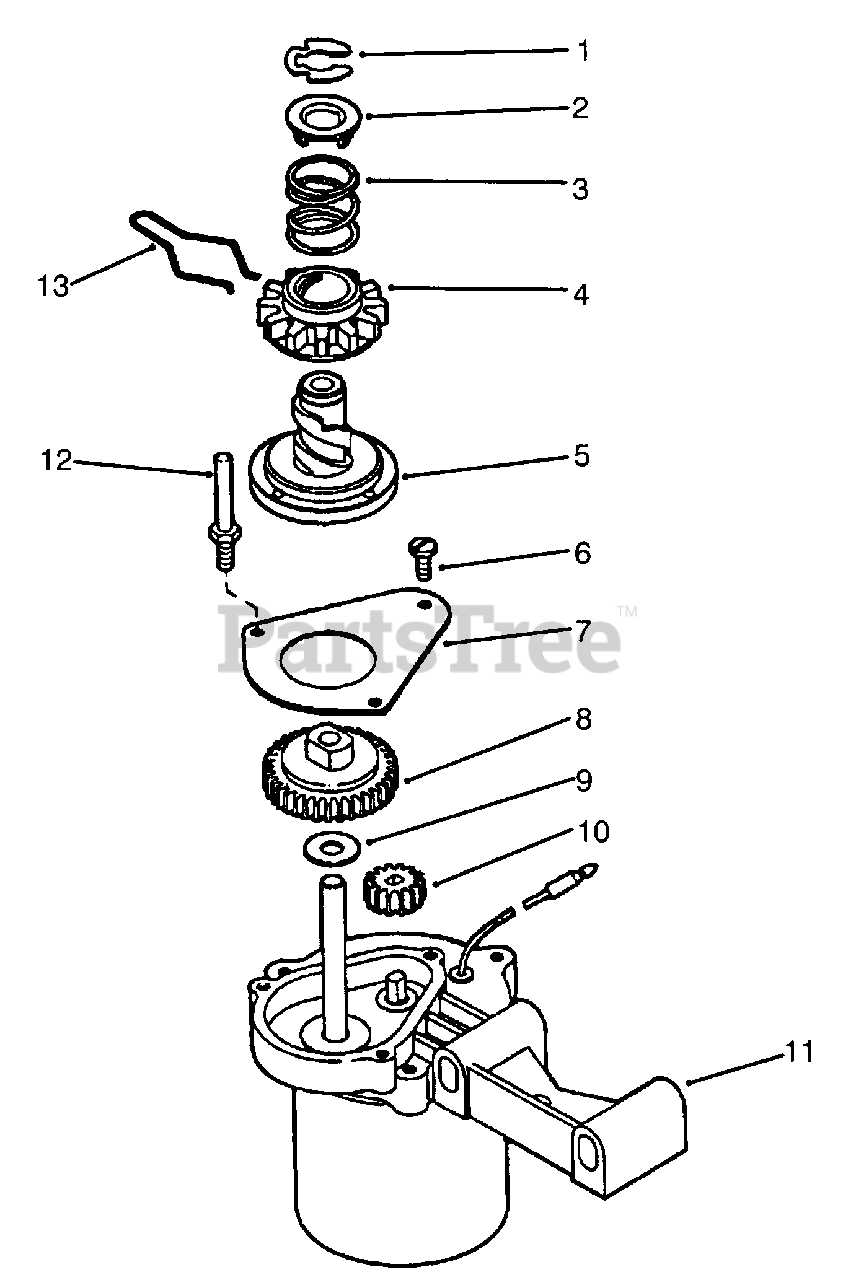

ELECTRIC STARTER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 608622

Ring-Retaining

$3.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 613451

Washer-Stop

$

$

Not available

3

Lawn-Boy 610257

Spring-Pinion

$

$

Not available

4

$

$

Not available

5

Lawn-Boy 684097

Assy.-Clutch (Incl. Ref. #1-4 & 13)

$

$

Not available

6

$2.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 613517

Plate-Cover, Gear

$

$

Not available

8

Lawn-Boy 613292

Gear-Driven

$

$

Not available

9

Lawn-Boy 609568

Washer-Thrust
(Superseded to 252-98)

$

$

Not available

10

$

$

Not available

11

Lawn-Boy 684095

Assy.-Housing & Pin
(Superseded to 684288)

$799.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 613290

Stud-Spring, Drag

$

$

Not available

13

Lawn-Boy 613297

Spring-Drag

$

$

Not available
