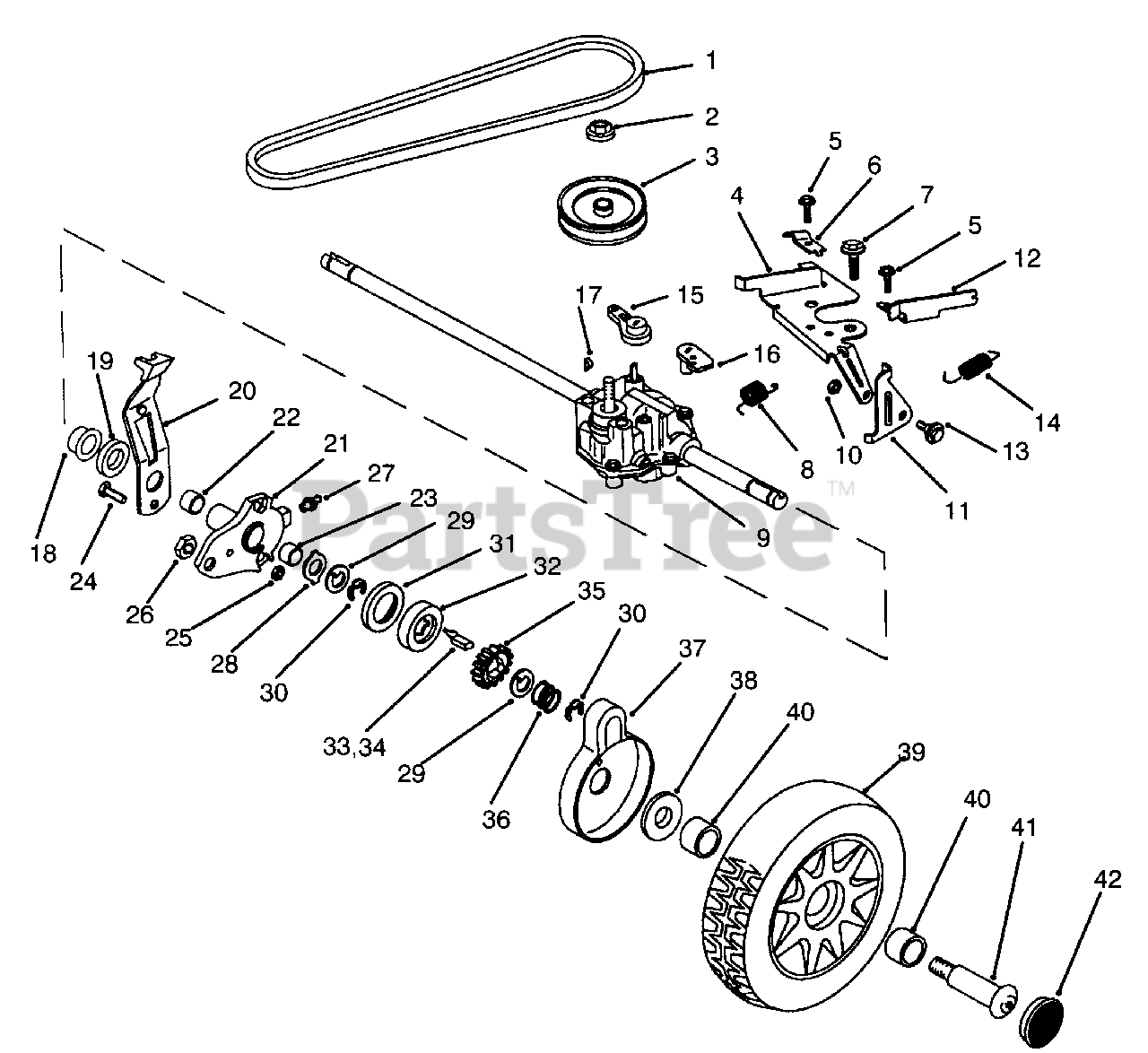

DRIVE ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 613770

Nut
(Superseded to 95-1579)

$

$

Not available

3

Lawn-Boy 613445

Pulley-Transmission

$108.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 614524

Plate-Actuator

$

$

Not available

5

$

$

Not available

6

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

Screw-Plate to Trans.

$

$

Not available

8

$

$

Not available

9

Lawn-Boy 684617

Transmission

$

$

Not available

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 614523

Arm-Trans. Engagement

$

$

Not available

12

Lawn-Boy 614526

Guide-Belt

$

$

Not available

13

Lawn-Boy 614527

Bolt-Shoulder

$

$

Not available

14

Lawn-Boy 614529

Spring-Extension

$

$

Not available

15

Lawn-Boy 614316

Arm-Shift

$

$

Not available

16

Lawn-Boy 614317

Arm-Clutch

$

$

Not available

$

$

Not available

18

Lawn-Boy 614443

Ring-Isolator

$

$

Not available

19

$3.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 684618

Assembly-Knob & Spring

$

$

Not available

21

Lawn-Boy 684616

Pivot Arm Assy. (Incl. Ref. No. 22-23)
(Superseded to 92-7746)

$50.99

$

In Stock, only 2 left!

0

22

$4.99

$

In Stock, Qty 20+

0

23

$6.49

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Lawn-Boy 602315

Locknut

$4.99

$

In Stock, only 2 left!

0

$2.99

$

In Stock, Qty 12

0

27

Lawn-Boy 614442

Fitting-Grease

$

$

Not available

28

Lawn-Boy 65-4730

Washer-Inner Thrust

$2.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 65-4740

Washer-Keyed

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 65-4760

Washer-Clutch

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 66-6040

Key, Rocking-R.H.
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 66-6050

Key, Rocking-L.H.
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 65-4750

Gear-Pinion 15T

$11.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 614427

Cover-Wheel
(Superseded to 94-1609)

$10.99

$

In Stock, Qty 5

0

38

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0

39

Lawn-Boy 684645

Assembly-Wheel (Incl. Ref. No.40)
(Superseded to 684777)

$59.99

$

In Stock, only 2 left!

0

40

$2.99

$

In Stock, only 4 left!

0

41

Lawn-Boy 614430

Bolt-Wheel

$

$

Not available

42

$2.99

$

In Stock, Qty 20+

0
