10759 - Troy-Bilt Front Wheel Swivel Kit for Tuff Cut Mower THICK RETAINING KIT Parts Diagram

Front Wheel Swivel Kit for Tuff Cut Mower

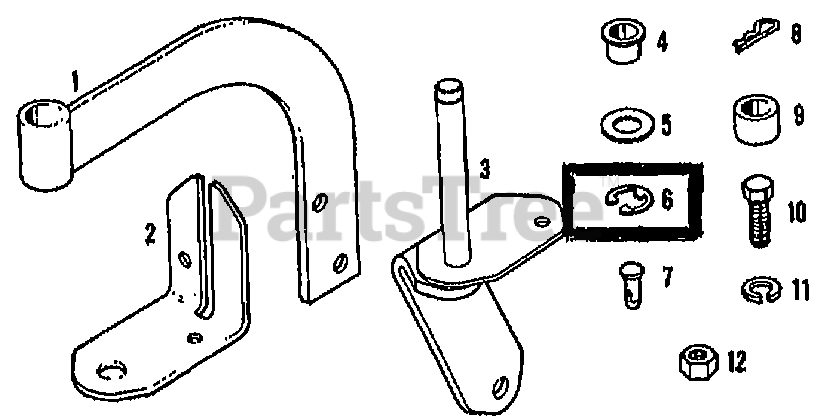

THICK RETAINING KIT Parts Diagram

  • Title

MTD 10759

KIT-SWIVEL WHEEL TUFFCUT
(Superseded to 690-200-0007)

$8.49

$

Usually ships in 3-6 days

0

1

Troy-Bilt T244980

ASSM-CASTER ARM (W/BUSHINGS #4)

$

$

Currently unavailable

2

Troy-Bilt T242455

BRKT-ROTATION LOCKING

$

$

Currently unavailable

3

Troy-Bilt T244983

ASSM-CASTER

$

$

Currently unavailable

4

Troy-Bilt T230081

BUSHING (PRE-ASSEMBLED INTO CASTER ARM ASSEMBLY)

$

$

Currently unavailable

5

Troy-Bilt 94003

WASHER-1.0X.632X.03 ZP

$

$

Currently unavailable

6

Troy-Bilt 97038

RING-E .062 THK

$

$

Currently unavailable

7

Troy-Bilt T237164

PIN-CLEVIS .25X.5 ZP

$

$

Currently unavailable

8

97009

CLIP-HITCH PIN #13 PL

$

$

Not available

9

Troy-Bilt T244985

SPACER-HEIGHT ADJ

$

$

Currently unavailable

10

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0
