10750 B - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) SHROUD - FUEL/OIL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

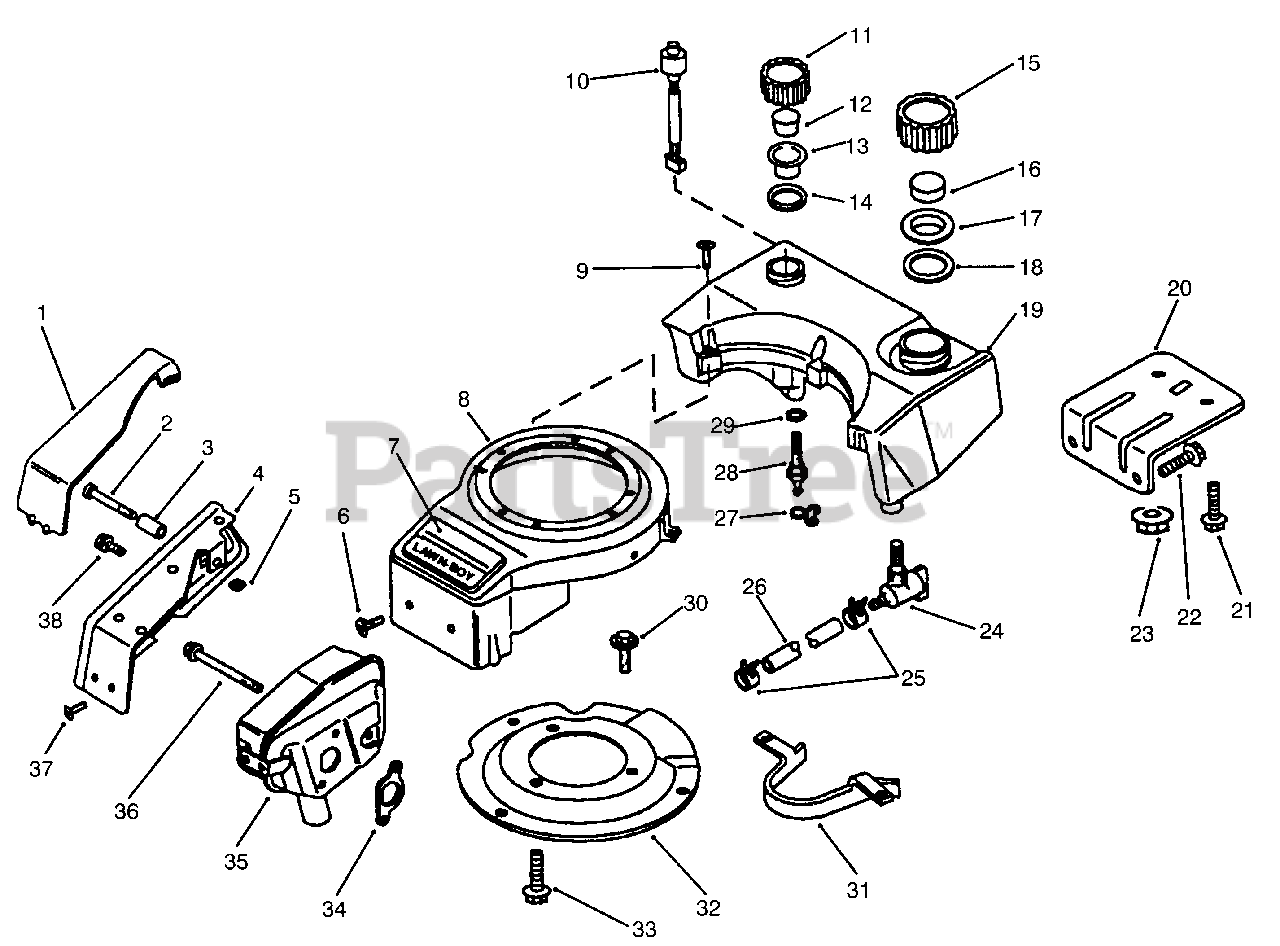

SHROUD - FUEL/OIL TANK ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 613378

Cover-Muffler

$

$

Not available

2

Lawn-Boy 613372

Screw-Muffler Guard

$

$

Not available

3

Lawn-Boy 613371

Spacer-Muffler Guard

$

$

Not available

4

Lawn-Boy 684157

Assembly-Muffler Guard (Incl. Ref. No. 1 & 5)

$203.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 613329

Pushnut

$2.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 613281

Screw-Shroud
(Superseded to 3274-31)

$1.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 614041

Applique

$

$

Not available

8

Lawn-Boy 684429

Assy.-Shroud (Incl. Ref. No. 7)
(Superseded to 93-1219)

$

$

Not available

9

Lawn-Boy 613330

Screw-Fuel Tank

$

$

Not available

10

Lawn-Boy 684376

Switch-Low Oil

$131.99

$

Usually ships in 3-6 days

0

Lawn-Boy 705137

Nut-Oil Switch

Note: Not Illustrated

$

$

Not available

11

Lawn-Boy 684105

Assembly-Oil Cap (Incl. Ref. No 12-14)

$

$

Not available

12

$

$

Not available

13

Lawn-Boy 614272

Cover-Baffle

$

$

Not available

14

$

$

Not available

15

Lawn-Boy 684104

Assembly-Fuel Cap (Incl. Ref. No.16-18)

$

$

Not available

16

$6.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 614271

Cover-Baffle

$5.49

$

Usually ships in 3-6 days

0

18

$

$

Not available

19

Lawn-Boy 684508

Assembly-Fuel/Oil Tank (Incl. Ref. No.10, 24, & 28-29)
(Superseded to 93-1208)

$

$

Not available

20

Lawn-Boy 614173

Bracket-Fuel Tank

$

$

Not available

21

Lawn-Boy 614181

Screw-Fuel Tank Mount

$

$

Not available

22

Lawn-Boy 613337

Bolt-Bracket To Block

$

$

Not available

$

$

Not available

24

Lawn-Boy 684093

Fuel Shut-Off Valve

$

$

Not available

25

Lawn-Boy 613489

Clamp-Fuel Line

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 613531

Fuel Line

$

$

Not available

27

Lawn-Boy 613516

Clamp-Oil Hose

$

$

Not available

28

Lawn-Boy 684336

Assembly-Oil Fitting (Incl. Ref. No.29)

$

$

Not available

29

$

$

Not available

30

Lawn-Boy 611774

Screw-Mtg Plate/Hsg.

$4.49

$

In Stock, only 2 left!

0

31

Lawn-Boy 613557

Snubber-Belt

$

$

Not available

32

Lawn-Boy 613206

Plate-Engine Mounting

$147.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613483

Screw-Mtg Plate To Eng.

$

$

Not available

34

Lawn-Boy 613266

Gasket-Exhaust

$

$

Not available

35

Lawn-Boy 684579

Muffler

$

$

Not available

36

Lawn-Boy 613282

Screw-Muffler

$

$

Not available

37

Lawn-Boy 613576

Screw-Muffler Guard

$

$

Not available

38

Lawn-Boy 700056

Screw-Muffler Guard

$

$

Not available
