10750 B - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

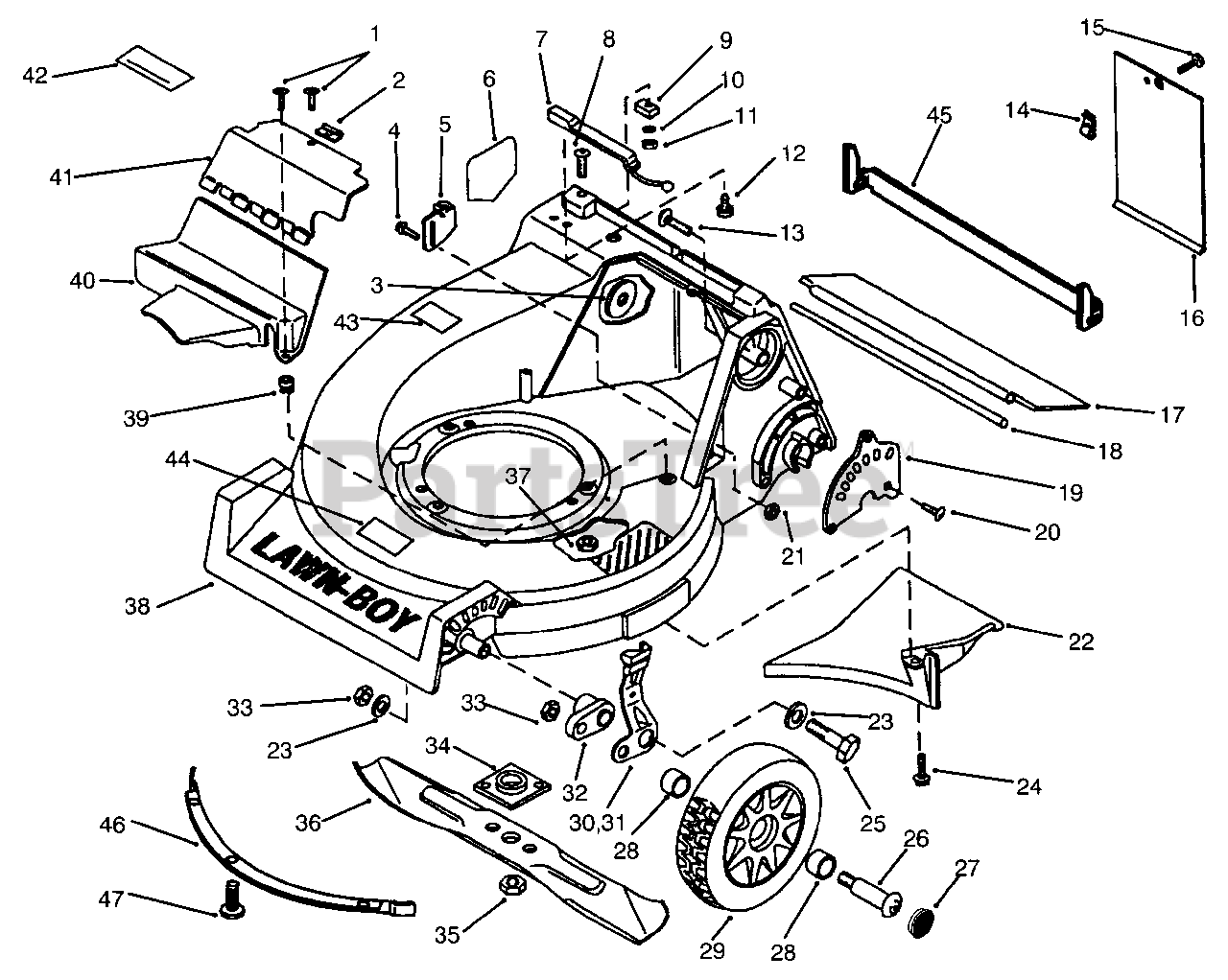

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 609807

Screw

$

$

Not available

2

Lawn-Boy 613341

Speednut

$

$

Not available

3

Lawn-Boy 613910

Washer-R.H. Handle
(Superseded to 5-3177)

$2.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 700748

Bolt

$

$

Not available

5

Lawn-Boy 614522

Anchor-Cable

$

$

Not available

6

Lawn-Boy 39-5770

Decal-Blade Warning

$8.99

$

In Stock, Qty 8

0

7

Lawn-Boy 684366

Switch-Bag Lock

$

$

Not available

8

Lawn-Boy 303724

Screw

$

$

Not available

9

Lawn-Boy 684193

Assembly-Magnet

$

$

Not available

10

Lawn-Boy 613625

Lockwasher

$

$

Not available

11

Lawn-Boy 130450

Nut

$

$

Not available

12

Lawn-Boy 613749

Screw

$

$

Not available

13

Lawn-Boy 613321

Bolt-Handle Mounting

$

$

Not available

14

Lawn-Boy 613340

Speednut

$2.49

$

Usually ships in 3-6 days

0

15

Lawn-Boy 613339

Screw

$

$

Not available

16

Lawn-Boy 613345

Door-Access
(Superseded to 613346)

$

$

Not available

17

Lawn-Boy 613322

Shield-Trailing
(Superseded to 99-6408)

$

$

Not available

18

Lawn-Boy 610026

Rod-Trailing Shield

$

$

Not available

19

Lawn-Boy 614433

Plate-Height Adjust

$

$

Not available

20

Lawn-Boy 613381

Screw-Plate to Housing

$5.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 602315

Nut-Cable Anchor/Hsg.

$4.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 613289

Baffle

$

$

Not available

23

Lawn-Boy 610361

Washer

$2.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 46-6811

Screw-Baffle to Housing

$3.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 613320

Screw

$

$

Not available

26

Lawn-Boy 614430

Shoulder Bolt-Wheel

$

$

Not available

27

Lawn-Boy 92-1604

Cap-Hub

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 27-6250

Bushing

$2.99

$

In Stock, Qty 8

0

29

Lawn-Boy 684645

Assembly-Wheel & Tire (Incl. Ref. No. 28)
(Superseded to 684777)

$59.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 684220

Assy.-Knob & Spring, L.H.

$

$

Not available

31

Lawn-Boy 684219

Assy.-Knob & Spring, R.H.

Note: Not Illustrated

$

$

Not available

32

Lawn-Boy 613917

Arm-Front Height Adj.

$106.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 610358

Nut

$2.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 677525

Assembly-Collar & Plate

$51.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 613944

Blade-21"
(Superseded to 613944-03)

$107.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 608311

Locknut-Mtg Plate/Hsg.

$3.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 684689

Assembly-Housing (Incl. Ref. No. 3, 6,13, 22 & 24)

$

$

Not available

39

Lawn-Boy 611380

Grommet

$

$

Not available

40

Lawn-Boy 613532

Cover-Lower Drive

$

$

Not available

41

Lawn-Boy 16-2219

Cover-Upper Drive (Incl. Ref. No. 42)

$

$

Not available

42

Lawn-Boy 92-2939

Decal-Warning

$

$

Not available

43

Lawn-Boy 613122

Decal-Sound Emission

$

$

Not available

44

Lawn-Boy 613121

Decal-Spark Plug

$

$

Not available

45

Lawn-Boy 614328

Housing-Shield

$

$

Not available

46

Lawn-Boy 613924

Baffle-Front

$

$

Not available

47

Lawn-Boy 613925

Screw-Baffle, Front

$

$

Not available
