10738 - Lawn-Boy 21" Walk-Behind Mower (SN: 314000001 - 314999999) (2014) Electrical Assembly Parts Diagram

21" Walk-Behind Mower

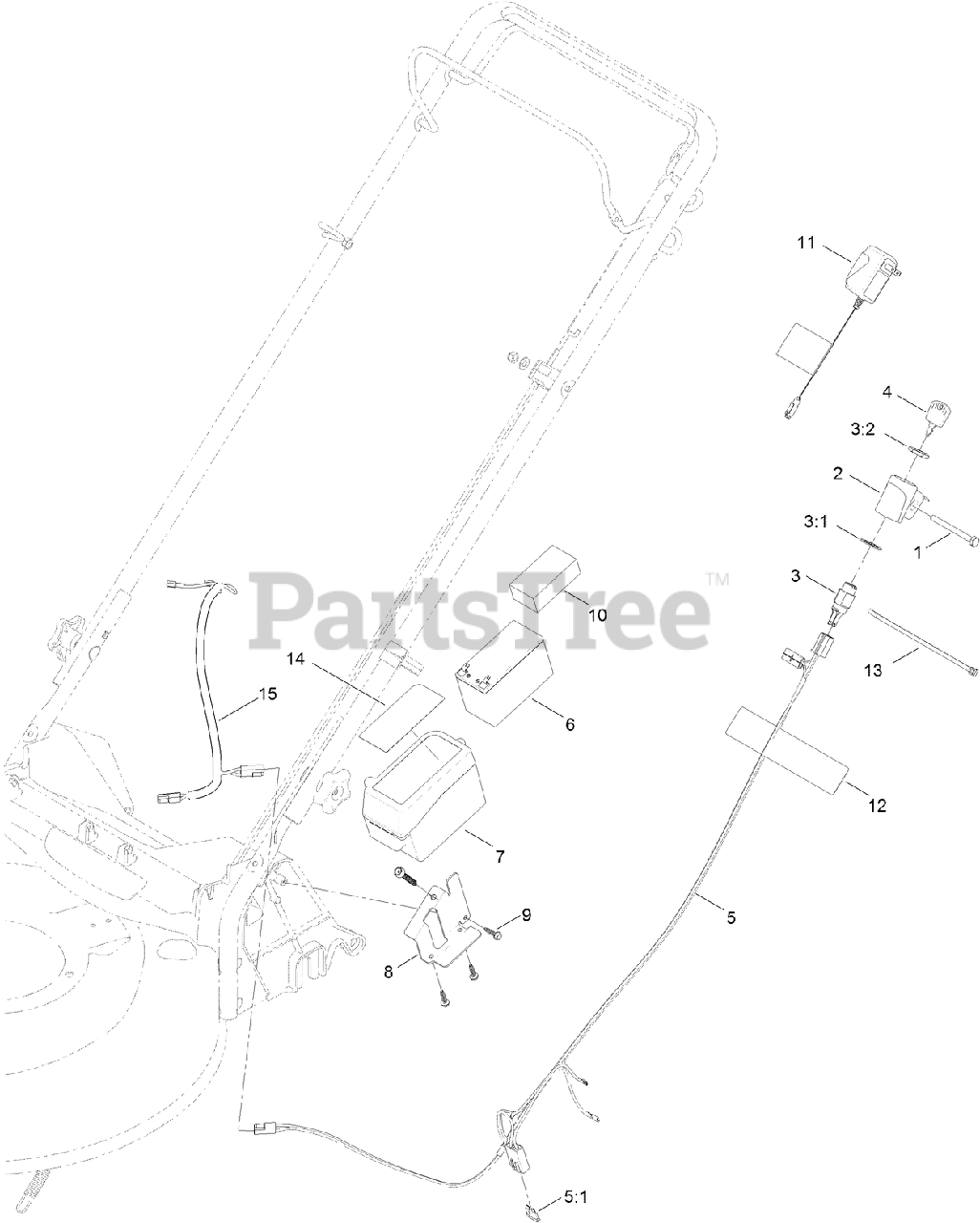

Electrical Assembly Parts Diagram

  • Title

1

Lawn-Boy 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

3:1

Lawn-Boy 3254-5

WASHER-LOCK

$1.49

$

In Stock, only 3 left!

0

3:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

4

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 11

0

5

Lawn-Boy 127-6837

HARNESS-WIRE

$66.99

$

In Stock, only 1 left!

0

5:1

Lawn-Boy 99-6124

FUSE-40 AMP

$4.99

$

In Stock, Qty 8

0

6

Lawn-Boy 127-0694

BATTERY-NONSPILLABLE, 12 V

$100.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 127-0695

BATTERY BOX ASM

$7.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 127-6835-03

BRACKET-BATTERY

$6.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

11

Lawn-Boy 114-1588

See Supercession: 136-9126
(Superseded to 136-9126)

$39.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 104-7953

DECAL-WARNING

$8.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

14

Lawn-Boy 130-6650

DECAL

$8.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 130-6686

HARNESS-WIRE

$35.99

$

Usually ships in 3-6 days

0
