10736 - Lawn-Boy 21" Walk-Behind Mower (SN: 407560000 - 999999999) Engine and Blade Assembly Parts Diagram

21" Walk-Behind Mower

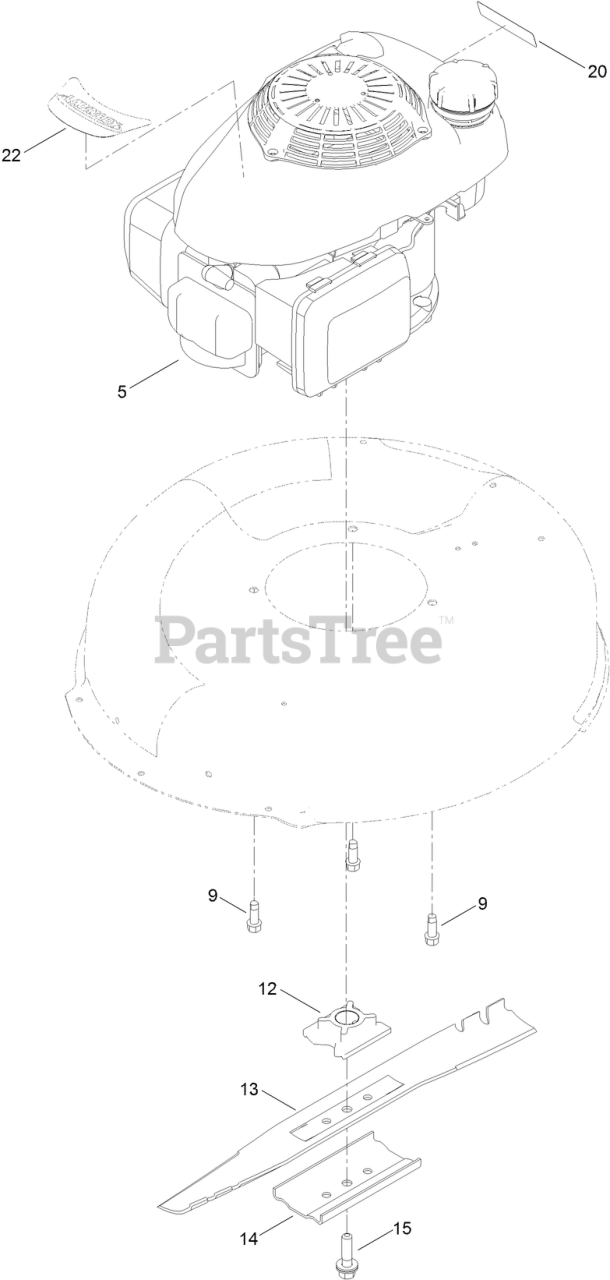

Engine and Blade Assembly Parts Diagram

  • Title
5

ENGINE-HONDA, GCV160LA0 S3B

Note: Not serviced separately

$

$

Not available

5

ENGINE-HONDA, GCV160LA0 S3B

Note: Obtain parts from www.honda-engines.com

$

$

Not available

9

Lawn-Boy 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 130-6674

RETAINER-BLADE

$38.99

$

In Stock, only 3 left!

0

13

$25.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 117-5270

BOLT-BLADE

$

$

Not available

20

Lawn-Boy 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 131-0855

DECAL-SHROUD, HONDA

$10.99

$

Usually ships in 3-6 days

0
