10735 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

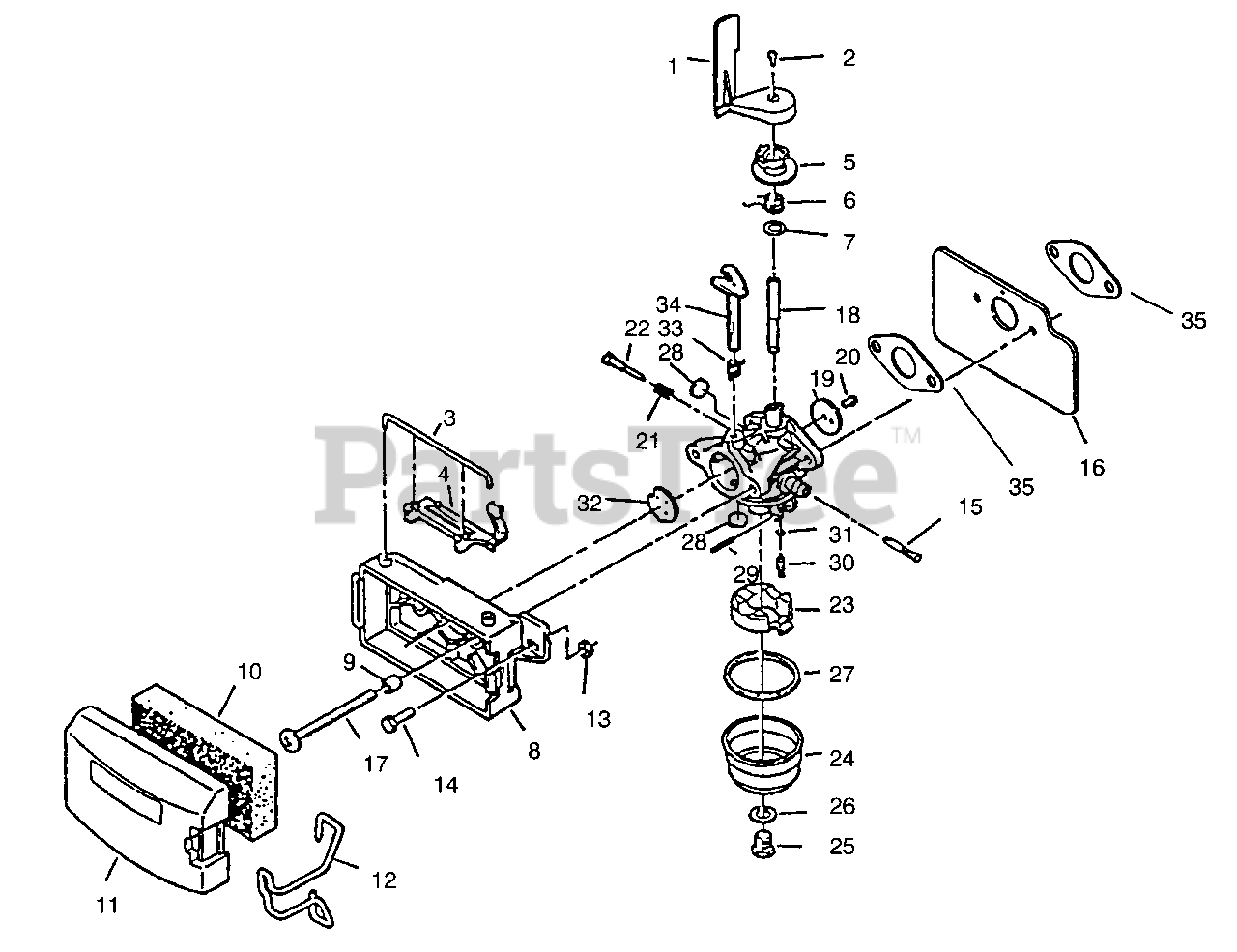

CARBURETOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 612505

Vane-Air

$

$

Not available

2

$1.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

Retainer-Speed Control Lever

$4.49

$

In Stock, Qty 14

0

4

Lawn-Boy 612502

Lever-Governor Control

$

$

Not available

5

$4.49

$

In Stock, Qty 20+

0

6

$7.99

$

In Stock, Qty 11

0

7

$4.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 612504

Base-Air Filter

$

$

Not available

9

Lawn-Boy 612503

Spacer-Filter Base

$5.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 611377

Cover-Air Filter
(Superseded to 93-1231)

$

$

Not available

12

Lawn-Boy 610383

Retainer-Cover

$9.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 328712

Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

14

$1.99

$

In Stock, Qty 6

0

15

Lawn-Boy 612974

Filter-Fuel

$7.99

$

In Stock, Qty 10

0

16

Lawn-Boy 614380

Heat Shield

$

$

Not available

17

$5.49

$

In Stock, only 4 left!

0

Lawn-Boy 612782

Line-Fuel

Note: Not Illustrated

$7.49

$

In Stock, Qty 9

0

Lawn-Boy 684286

Kit-Throttle Shaft (Incl. Ref. #18-20)

Note: Not Illustrated

$

$

Not available

18

Shaft-Throttle

$

$

Not available

19

Vane-Throttle

$

$

Not available

20

Screw

$

$

Not available

Lawn-Boy 684285

Kit-Idle Needle (Incl. Ref. #21-22)

Note: Not Illustrated

$

$

Not available

21

Spring-Needle

$

$

Not available

22

Needle-Idle

$

$

Not available

23

Lawn-Boy 683783

Kit-Float Assembly (Incl. Ref. #24-27)

$

$

Not available

Lawn-Boy 683782

Kit-Bowl (Incl. Ref. #24-25)

Note: Not Illustrated

$62.99

$

Usually ships in 3-6 days

0

24

Bowl-Fuel

$

$

Not available

25

Screw

$

$

Not available

Lawn-Boy 683778

Kit-Gasket (Incl. Ref. #26 & 27)

Note: Not Illustrated

$7.99

$

Usually ships in 3-6 days

0

26

Gasket-Bowl Retainer

$

$

Not available

27

Gasket-Bowl

$

$

Not available

Lawn-Boy 683777

Kit-Repair (Incl. Ref. #26-31)

Note: Not Illustrated

$

$

Not available

28

Plug-Welch

$

$

Not available

29

Shaft-Float

$

$

Not available

30

Inlet-Needle Valve

$

$

Not available

31

Seat-Valve

$

$

Not available

Kit-Gasket

Note: Not Illustrated

$

$

Not available

Lawn-Boy 683781

Kit-Shaft, Choke (Incl. Ref. #32-34)

Note: Not Illustrated

$51.99

$

In Stock, only 1 left!

0

32

Valve-Choke

$

$

Not available

33

Spring-Return

$

$

Not available

34

Shaft-Choke

$

$

Not available

35

Lawn-Boy 612574

Gasket Carburetor

$6.49

$

In Stock, Qty 13

0

Lawn-Boy 684352

Body-Carburetor (Incl. Ref. #18-34)

Note: Not Illustrated

$360.99

$

Usually ships in 3-6 days

0
