10730 - Lawn-Boy 21" Walk-Behind Mower (SN: 315000001 - 315999999) (2015) Engine Assembly Parts Diagram

21" Walk-Behind Mower

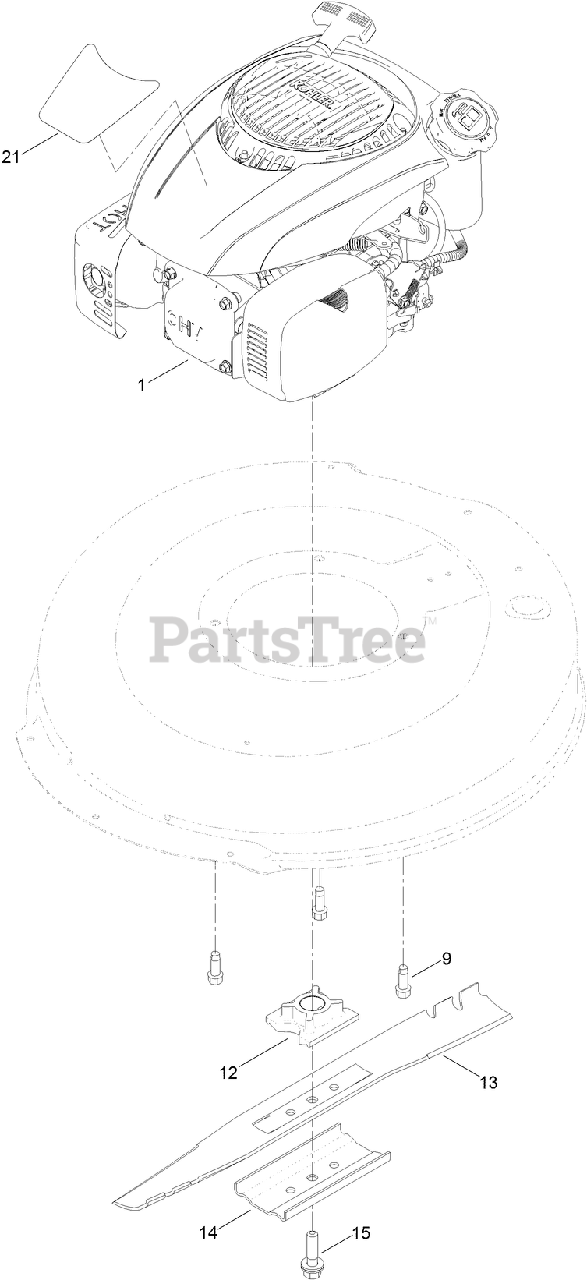

Engine Assembly Parts Diagram

  • Title
1

ENGINE-KOHLER XT650-2036

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER XT650-2036

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Lawn-Boy 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 104-1007

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 108-0954-03

See Supercession: 133-8182-03
(Superseded to 133-8182-03)

$25.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

$137.99

$

Usually ships in 3-6 days

0
