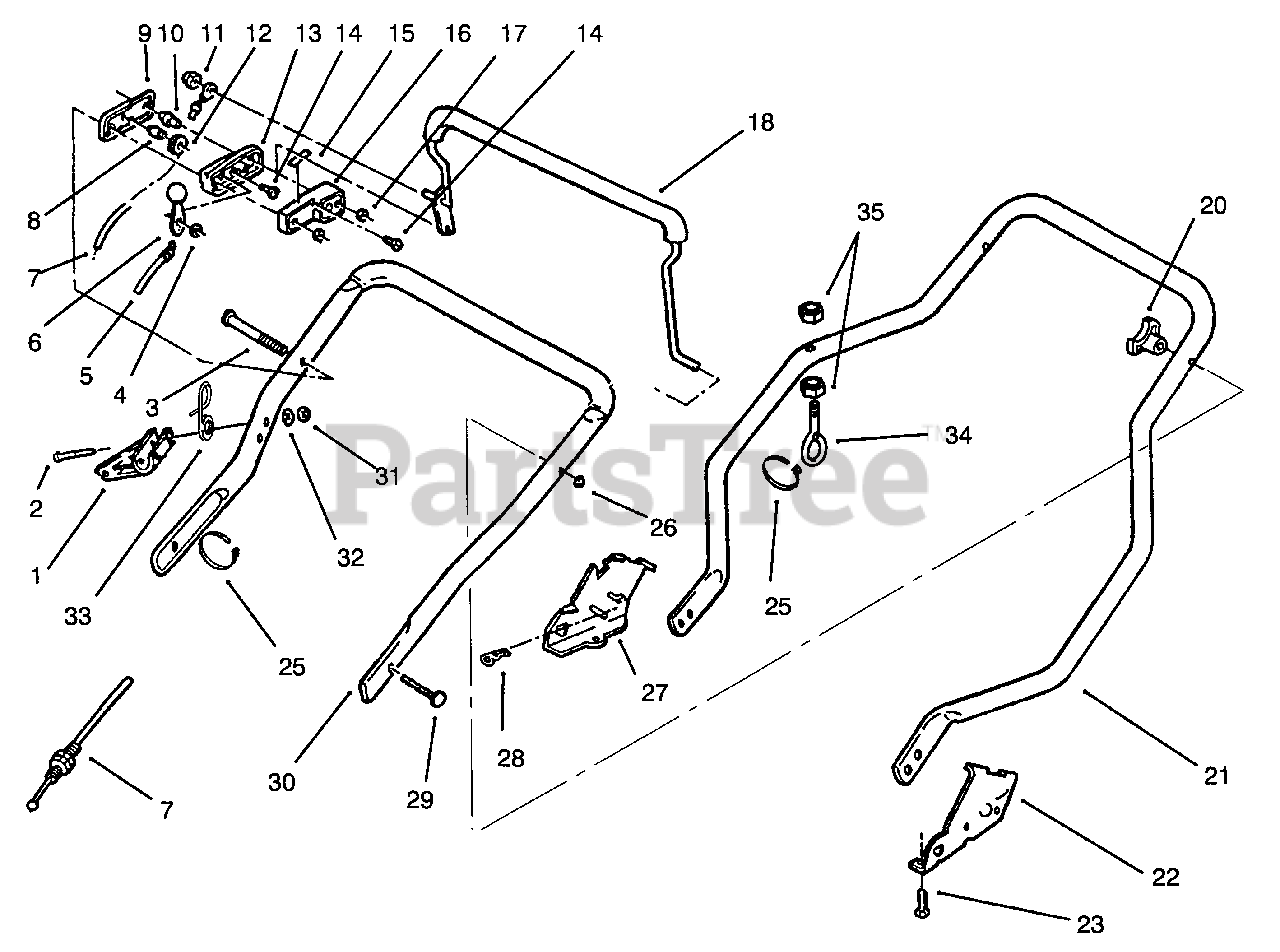

10725 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE Parts Diagram

Walk-Behind Mower

HANDLE Parts Diagram

  • Title
1

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

$

$

Not available

2

Lawn-Boy 611233

Screw-Truss Head

$

$

Not available

3

$5.49

$

Usually ships in 3-6 days

0

4

$2.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 612588

Cable-Throttle

$60.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 683663

Lever & Knob Assembly

$

$

Not available

7

Lawn-Boy 683041

Control Cable Assembly

$138.99

$

Usually ships in 3-6 days

0

$

$

Not available

9

Lawn-Boy 611777

Control Case Outer

$32.99

$

In Stock, only 1 left!

0

10

$14.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612168

Nut-Acorn

$19.99

$

Usually ships in 3-6 days

0

12

$5.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612633

Case-Throttle, Center

$

$

Not available

14

$4.49

$

In Stock, Qty 6

0

15

Lawn-Boy 612698

Decal-Throttle

$

$

Not available

16

Lawn-Boy 612634

Case-Throttle, Inner

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 683478

Lever-Control

$138.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 613363

Handle-Lower

$

$

Not available

22

Lawn-Boy 683925

Bracket-Handle L.H.
(Superseded to 683925-03)

$

$

Not available

23

$3.99

$

In Stock, only 3 left!

0

25

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, only 2 left!

0

26

Lawn-Boy 605546

Nut-Push
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

27

Lawn-Boy 683926

Bracket-Handle R.H.
(Superseded to 683926-03)

$

$

Not available

28

Lawn-Boy 605803

Pin-Cotter

$

$

Not available

29

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 612683

Handle Assembly-Top

$

$

Not available

31

Lawn-Boy 602315

Nut-Lock

$4.99

$

In Stock, only 2 left!

0

32

$

$

Not available

33

Lawn-Boy 92-2930

Rope Stop

$

$

Not available

34

Lawn-Boy 611571

Eyebolt

$14.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 602315

Nut-Lock

$4.99

$

In Stock, only 2 left!

0
