10725 B - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE SHROUD AND MUFFLER PLATE Parts Diagram

Walk-Behind Mower

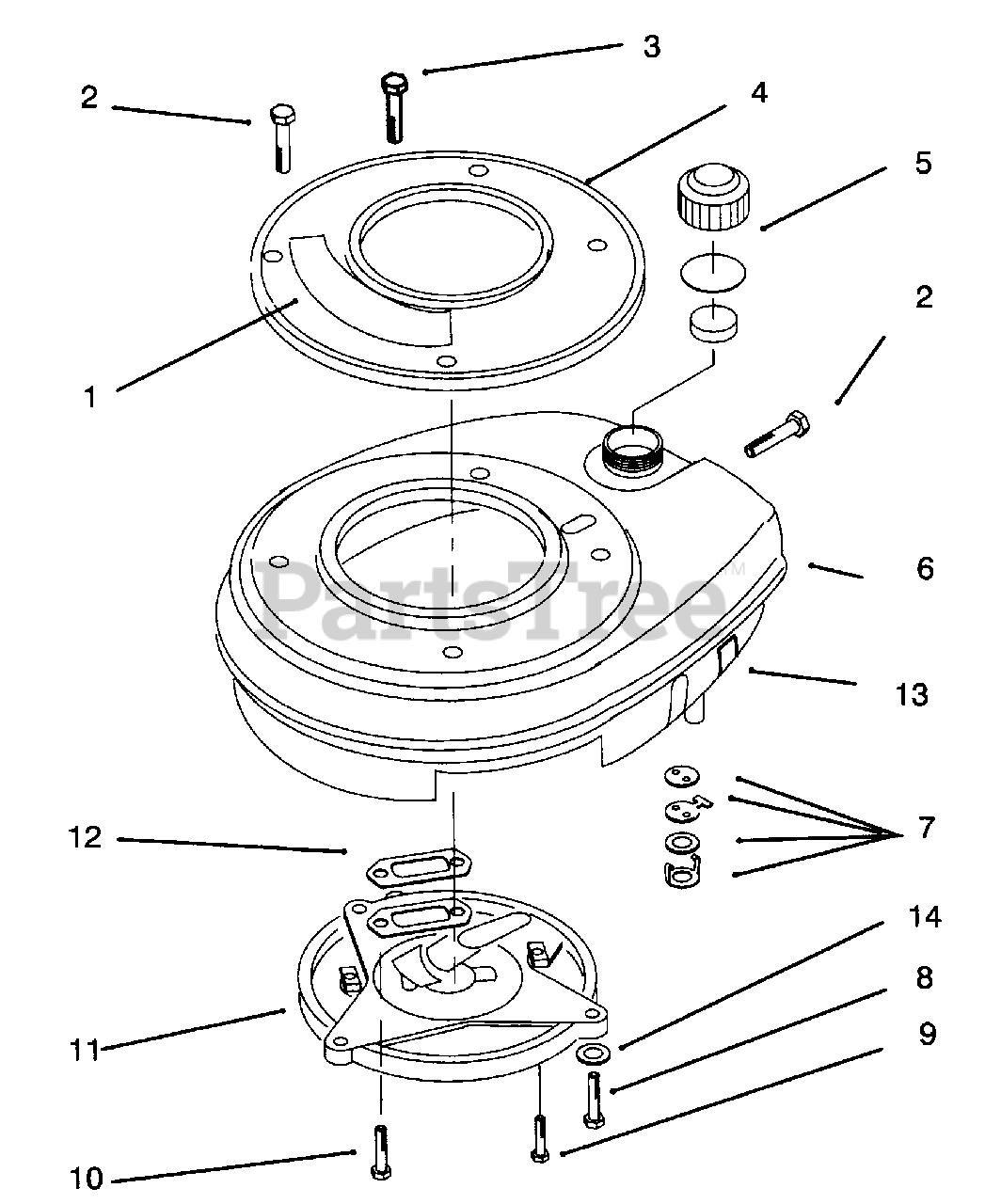

ENGINE SHROUD AND MUFFLER PLATE Parts Diagram

  • Title

1

Lawn-Boy 614265

Applique

$

$

Not available

2

Lawn-Boy 611395

Screw
(Superseded to 611543)

$4.49

$

In Stock, Qty 6

0

3

Lawn-Boy 612428

Screw-Starter Mounting

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 684570

Starter Base

$

$

Not available

5

Lawn-Boy 682755

Fuel Cap (Includes both of the following items)

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 607213

Gasket

Note: Not Illustrated

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Not Illustrated

$6.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1084

Shroud-Engine
(Superseded to 16-5539)

$

$

Not available

7

Lawn-Boy 681818

Fuel Shut-Off Assembly

$

$

Not available

8

Lawn-Boy 92-1648

Screw-Muffler Plt. to Hsg.
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 613500

Screw-Muffler Plt. to Block

$9.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 607601

Screw-Muffler Plt. to Block

$4.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 92-1054

Plate-Muffler

$121.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

$1.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 611564

Decal-Fuel Shut-Off Assy.

$

$

Not available

14

Lawn-Boy 3256-56

Washer-Muffler Plt. to Hsg.

$1.99

$

Usually ships in 3-6 days

0
