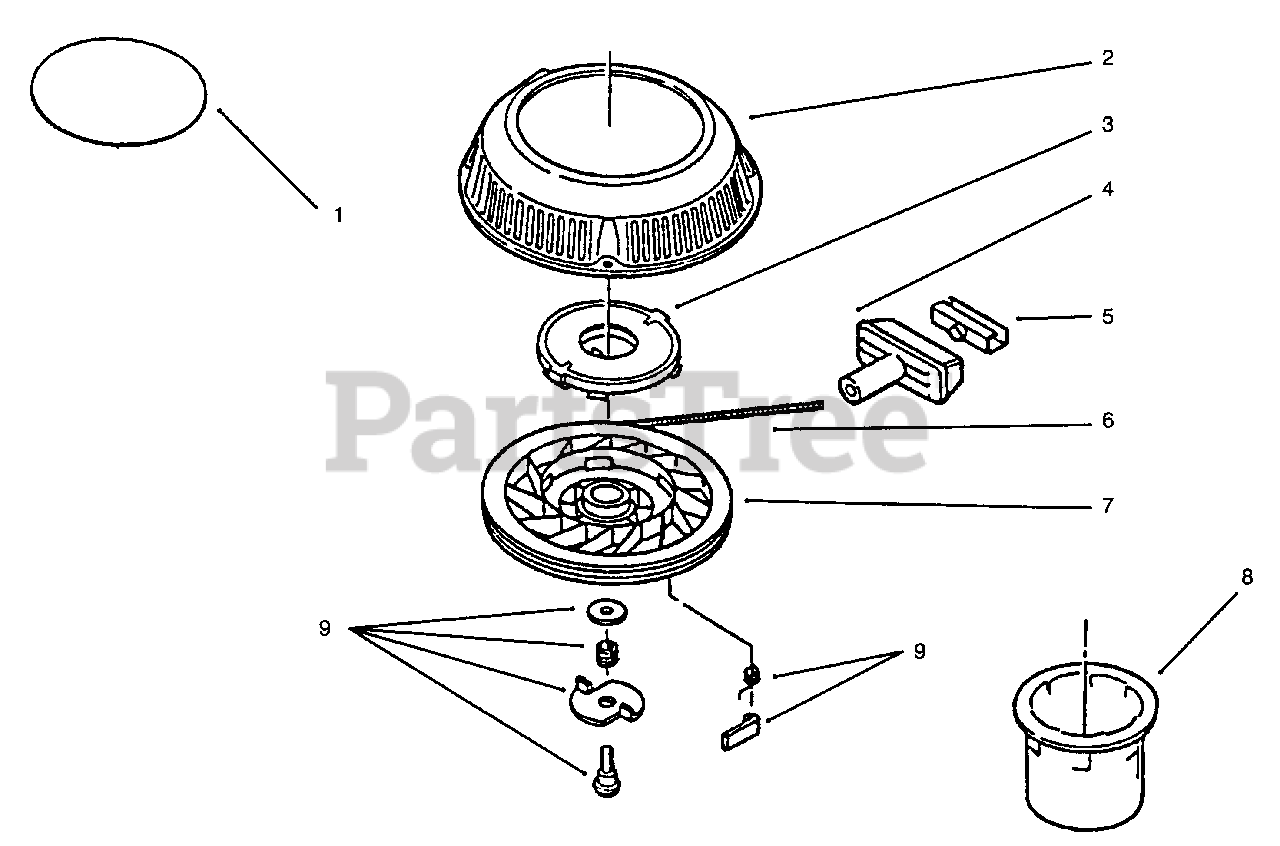

10700 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) STARTER Parts Diagram

Walk-Behind Mower

STARTER Parts Diagram

  • Title
1

Lawn-Boy 614211

Decal-Recoil

$

$

Not available

2

Lawn-Boy 684567

Starter Housing & Shaft

$140.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 683897

Spring & Keeper
(Superseded to 684622)

$

$

Not available

4

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 612824

Clip-Rope

$4.49

$

In Stock, Qty 10

0

6

Lawn-Boy 612432

Rope
(Superseded to 613773)

$34.99

$

In Stock, only 1 left!

0

7

$28.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 612949

Hub-Starter

$49.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 683899

Kit-Dog

$91.99

$

In Stock, Qty 7

0

Lawn-Boy 684622

Starter Assembly (Incl. Ref. #2-3, 6-7 & 9)

Note: Not Illustrated

$

$

Not available
