10700 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) SHROUD ASSEMBLY Parts Diagram

Walk-Behind Mower

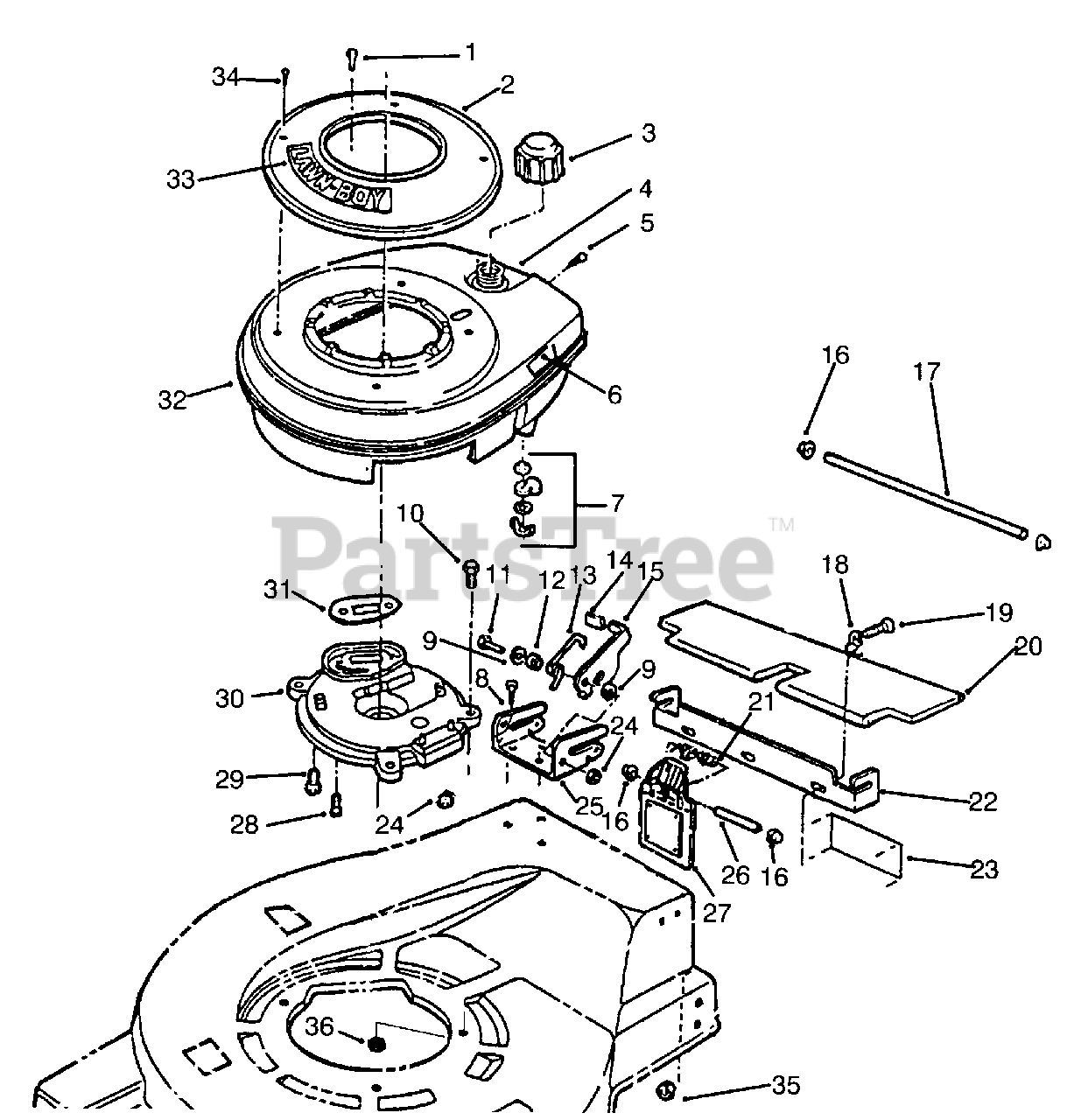

SHROUD ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 612428

Screw-Starter

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 684571

Base-Starter

$

$

Not available

3

Lawn-Boy 682755

Assembly-Cap, Fuel (Incl. the following 2 items.)

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 607213

Gasket

Note: Not Illustrated

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Not Illustrated

$5.49

$

In Stock, Qty 11

0

4

Lawn-Boy 612693

Decal-Fuel Mix

$

$

Not available

$3.49

$

In Stock, Qty 10

0

6

Lawn-Boy 611564

Decal-Fuel Shut Off

$

$

Not available

7

Lawn-Boy 681818

Valve-Fuel Shut Off

$

$

Not available

8

Lawn-Boy 800019

Screw-Bracket, Rear Bag
(Superseded to 614512)

$

$

Not available

9

Lawn-Boy 611485

Washer-Latch, Bag

$

$

Not available

10

Lawn-Boy 611774

Screw-Plate, Muffler

$3.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 609892

Screw-Latch to Bracket

$

$

Not available

12

Lawn-Boy 611484

Spacer-Latch/Spring Plate

$

$

Not available

13

Lawn-Boy 611491

Spring-Latch

$

$

Not available

14

Lawn-Boy 612658

Knob-Latch

$2.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611486

Latch-Bag

$

$

Not available

16

Lawn-Boy 609975

Nut-Push

$

$

Not available

17

Lawn-Boy 610026

Rod-Shield, Trailing

$

$

Not available

18

Lawn-Boy 611602

Clamp-Rod, Trailing

$

$

Not available

19

Lawn-Boy 609891

Screw-Hanger, Bag
(Superseded to 700138)

$

$

Not available

20

Lawn-Boy 611495

Shield-Trailing

$41.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 611480

Spring-Door

$

$

Not available

22

Lawn-Boy 611490

Bracket-Hanger, Bag

$

$

Not available

23

Lawn-Boy 611533

Decal-Caution, Discharge

$

$

Not available

24

Lawn-Boy 602315

Nut-Lock

$4.49

$

In Stock, only 2 left!

0

25

Lawn-Boy 611482

Bracket-Mounting, Bag

$

$

Not available

26

Lawn-Boy 611481

Rod-Pivot, Door

$14.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 683039

Door-Discharge, Rear

$

$

Not available

28

Lawn-Boy 607601

Screw-Muffler Plate to Eng.

$3.99

$

In Stock, only 2 left!

0

29

Lawn-Boy 609994

Screw-Muffler Plate to Eng

$

$

Not available

30

Lawn-Boy 609989

Plate-Muffler

$161.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 613755

Gasket-Exhaust

$11.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 684632

Assy.-Shroud/Tank & Valve (Incl. Ref. #7)

$291.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 614265

Appligue-Base, Starter

$

$

Not available

34

Lawn-Boy 611395

Screw-Shroud to Base
(Superseded to 611543)

$3.99

$

In Stock, Qty 6

0

35

Lawn-Boy 602315

Nut-Lock

$4.49

$

In Stock, only 2 left!

0

36

Lawn-Boy 608311

Nut-Muffler Plate to Hsg.

$2.99

$

Usually ships in 3-6 days

0
