10700 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

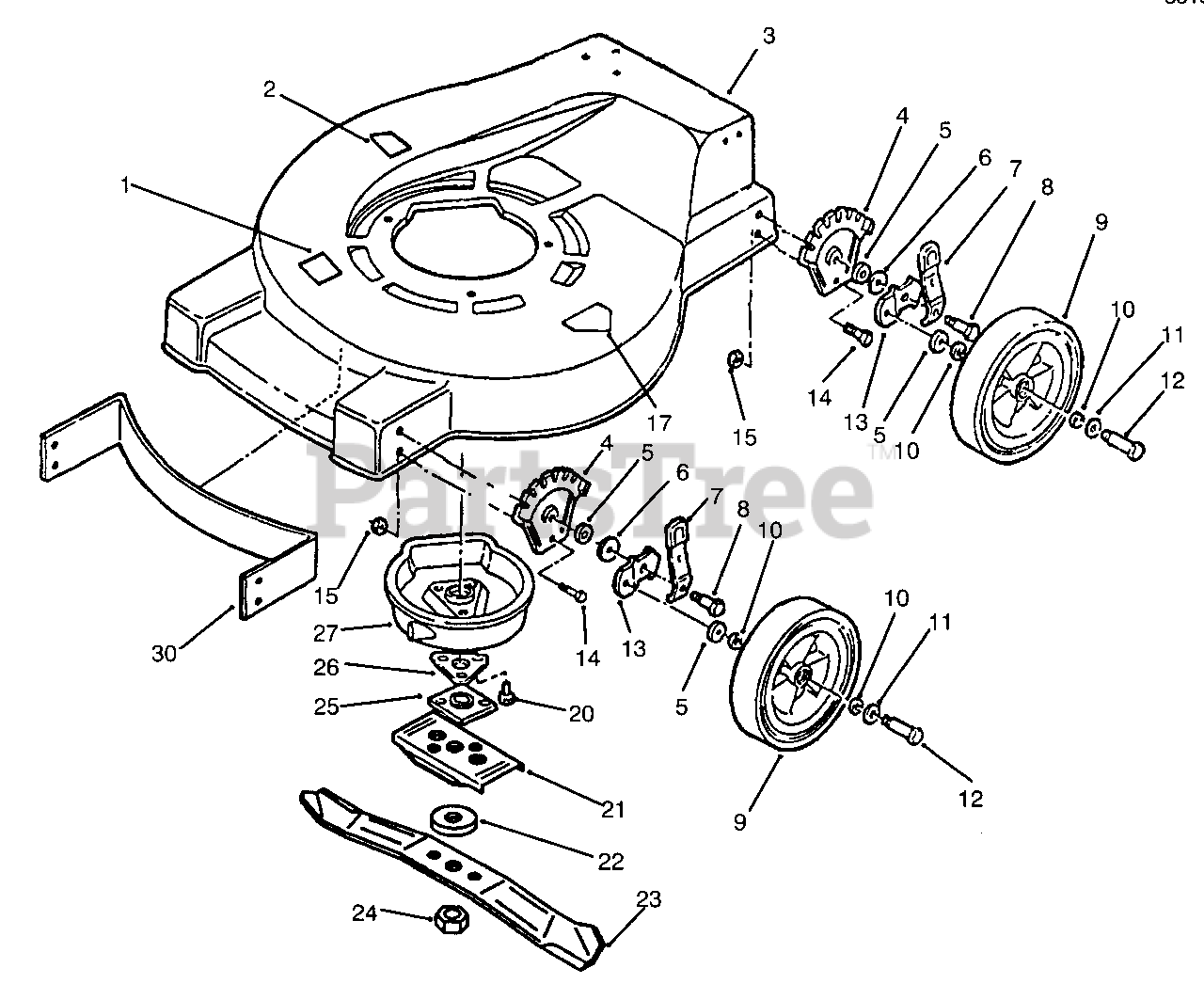

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 613122

Decal-Sound Emission

$

$

Not available

2

Lawn-Boy 613121

Decal-Spark Plug

$

$

Not available

3

Lawn-Boy 153344

Assembly-Housing (Incl. Ref. #15, 17, 30, & #22 on next page.)
(Superseded to 683494)

$

$

Not available

4

Lawn-Boy 610142

Plate-Height Adjustment

$

$

Not available

5

Lawn-Boy 603620

Washer

$5.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 608834

Washer-Height Adj. Plate

$14.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 682231

Knob & Spring

$29.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 610646

Bolt-Shoulder

$7.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 682974

Assembly-Tire & Wheel (Incl. Ref. #10-11)
(Superseded to 131-4520)

$37.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 605255

Washer-Felt

$1.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 605256

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 603441

Bolt-Shoulder, Wheel

$7.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 608833

Bracket-Height Adjust.
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 610039

Screw-Height Adj. Bracket
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 603773

Nut-Hex.

$2.99

$

In Stock, Qty 8

0

17

Lawn-Boy 39-5770

Decal-Blade Warning

$8.99

$

In Stock, Qty 8

0

20

Lawn-Boy 609471

Screw-Crankshaft Stiffener

$4.99

$

In Stock, Qty 14

0

21

Lawn-Boy 603541

Stiffener-Blade

$

$

Not available

22

Lawn-Boy 605058

Washer

$5.99

$

In Stock, Qty 12

0

23

Lawn-Boy 521725

Blade-20"

$112.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 603164

Nut-Lock
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 677525

Plate & Collar

$51.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 609980

Support-Crankshaft

$

$

Not available

27

Lawn-Boy 682873

Cover-Muffler
(Superseded to 682873-03)

$

$

Not available

30

Lawn-Boy 611483

Baffle-Front

$

$

Not available
