10700 - Lawn-Boy Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

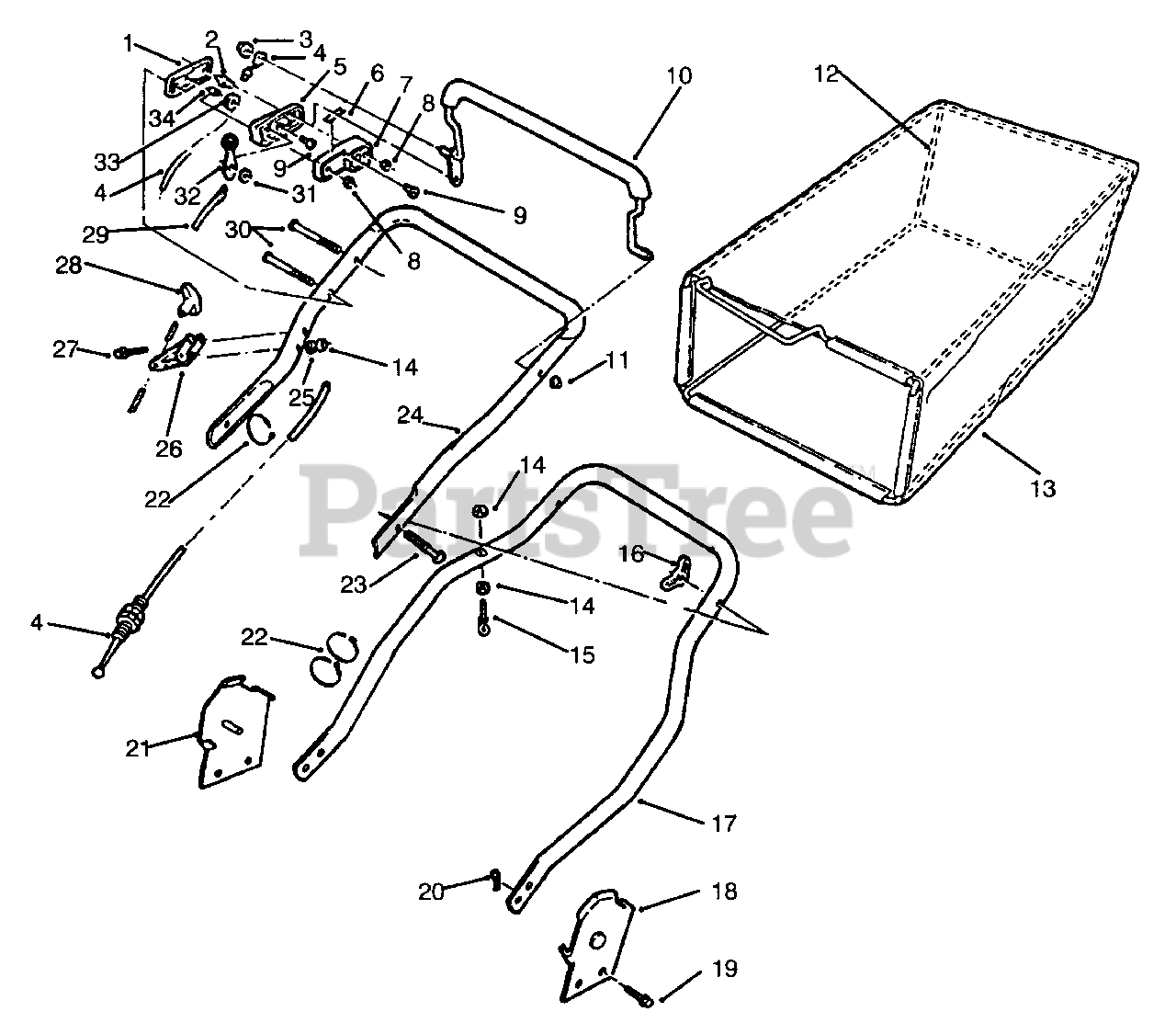

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 611777

Case-Outer, Control

$32.99

$

In Stock, only 1 left!

0

2

$14.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 612168

Nut-Acorn, Cable to Bail

$19.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 683041

Cable-Engine Brake

$138.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 612633

Case-Center, Control

$

$

Not available

6

Lawn-Boy 612698

Decal-Throttle

$

$

Not available

7

Lawn-Boy 612634

Case-Inner, Control

$

$

Not available

8

Lawn-Boy 611258

Nut-Lock

$3.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611543

Screw-Truss Head

$4.49

$

In Stock, Qty 6

0

10

Lawn-Boy 683478

Bail-Control, Eng. Brake

$138.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 605546

Nut-Push, Bail
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 682894

Frame-Bag, Support

$

$

Not available

13

Lawn-Boy 683498

Assembly-Bag
(Superseded to 683799)

$262.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 602315

Nut-Lock

$4.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611571

Eyebolt

$14.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 614243

Nut-Wing
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 15

0

17

Lawn-Boy 614186

Handle-Bottom

$

$

Not available

18

Lawn-Boy 684185

Bracket-Handle, L.H.

$

$

Not available

19

Lawn-Boy 611487

Screw-Bracket, Handle

$

$

Not available

20

Lawn-Boy 605803

Pin-Hair

$

$

Not available

21

Lawn-Boy 684186

Bracket-Handle, R.H.

$

$

Not available

22

Lawn-Boy 614249

Strap Tie

$1.49

$

In Stock, Qty 6

0

23

$2.49

$

In Stock, Qty 13

0

24

Lawn-Boy 612683

Handle-Top

$

$

Not available

25

$

$

Not available

26

Lawn-Boy 153254

Guide-Rope
(Superseded to 682684)

$

$

Not available

27

Lawn-Boy 611233

Screw-Truss Head

$

$

Not available

28

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 612588

Cable-Throttle

$60.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 611799

Screw-Case, Control

$5.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 612586

Washer-Spring

$2.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 683663

Throttle & Knob

$

$

Not available

33

$5.99

$

Usually ships in 3-6 days

0

$

$

Not available
