1070 M (1691378) - Simplicity 28" Snow Thrower, 10hp Auger Housing & Chute Group Parts Diagram

28" Snow Thrower, 10hp

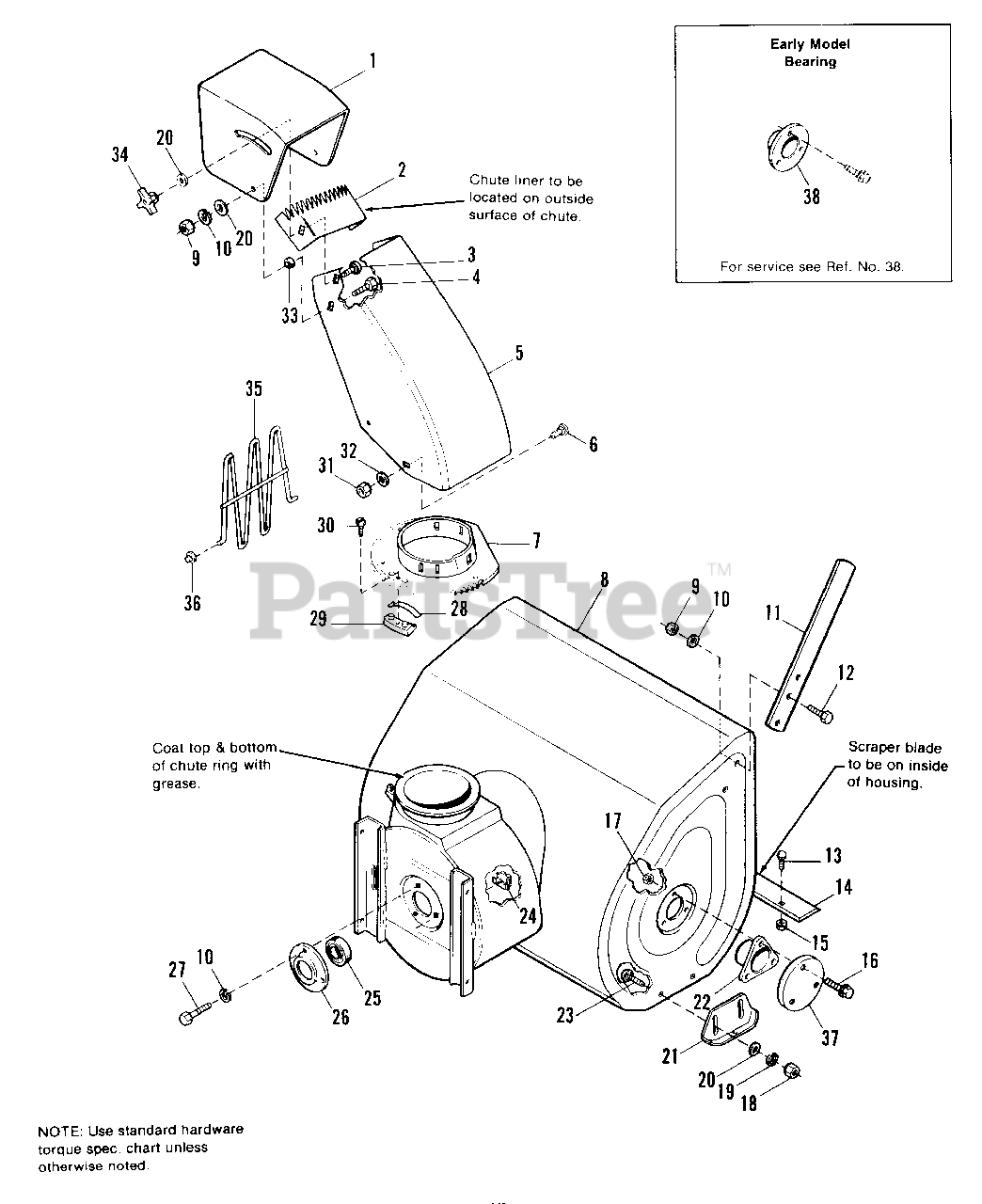

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 1667791A

DEFLECTOR ASSY.
(Superseded to 1667791ASM)

$37.99

$

Usually ships in 2-12 days

0

2

Simplicity 1667828SM

LINER, Chute

$30.99

$

Usually ships in 2-12 days

0

3

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

4

Simplicity 1936482SM

SCREW, Truss Phil Hd., 5/16-18 x 3/4

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 1671011SM

CHUTE
(Superseded to 1671011ASM)

$86.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

7

Simplicity 1678634SM

GEAR, Chute

$

$

Not available

8

Simplicity 1667509

HOUSING ASSY., Auger, 60 cm (24")(Used on all models except Mfg. No.1691377 & 1671378)

Note: Ref No. 8 includes Ref. No. 13, 14 & 15.

$

$

Not available

8

Simplicity 1667510

HOUSING ASSY., Auger, 70 cm (28")(Used on Mfg. No. 1691377 & 1691378 only)

$

$

Not available

9

Simplicity 1917372SM

NUT, 5/16-18 (Qty. 6 on 1691377 & 1691378)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 9 on 1691377 & 1691378)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1715787

CUTTER, Drift (1691377 & 1691378 only)
(Superseded to 1715787CSM)

$37.99

$

Usually ships in 2-12 days

0

12

Simplicity 2821332

CAPSCREW, Hex Hd ., 5/16-18 x 3/4 (1691377 & 1691378 only)

$

$

Not available

13

Simplicity 1931332SM

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1709946

BLADE, Scraper, 60 cm (24")
(Superseded to 1709946ASM)

$39.99

$

In Stock, Qty 7

0

14

Simplicity 1709947

BLADE, Scraper, 70 cm (28")
(Superseded to 1709947BMYP)

$45.99

$

In Stock, Qty 20+

0

15

Simplicity 1935048SM

LOCKNUT, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 18

0

16

Simplicity 1923325SM

CAPSCREW, Hex Flange Whizlock 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

17

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

18

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

20

Simplicity 1919326SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 8

0

21

Simplicity 2177434C

SKID

$

$

Not available

22

Simplicity 1665980SM

BEARING, Auger

$

$

Not available

23

Simplicity 1931348SM

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 2830659

NUT, Retainer, 5/16-18

$

$

Not available

25

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

26

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

27

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

28

Simplicity 1667865SM

SPRING

$10.99

$

In Stock, Qty 9

0

29

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1960001SM

SCREW, Plastite, #10
(Superseded to 703062)

$4.49

$

In Stock, Qty 14

0

31

Simplicity 1920397SM

LOCKNUT,Nylon, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 1667790SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1670578SM

KNOB, 4 Arm w/5/16-18 Thd. Insert

$13.99

$

In Stock, only 1 left!

0

35

Simplicity 1704446SM

GUARD, Chute

$22.99

$

Usually ships in 2-12 days

0

36

Simplicity 1960126SM

PUSH NUT
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

37

Simplicity 1668639CSM

CAP, Bearing
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

38

Simplicity 1685365SM

BEARING KIT, Auger

Note: Kit 1685365 includes Qty. 2 of 1665980 (bearing), Qty. 2 of 1668639 (bearing cap) & Qty. 6 of each, 1923362 (nut) & 1923325 (capscrew).

$

$

Not available
