ZTS6000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

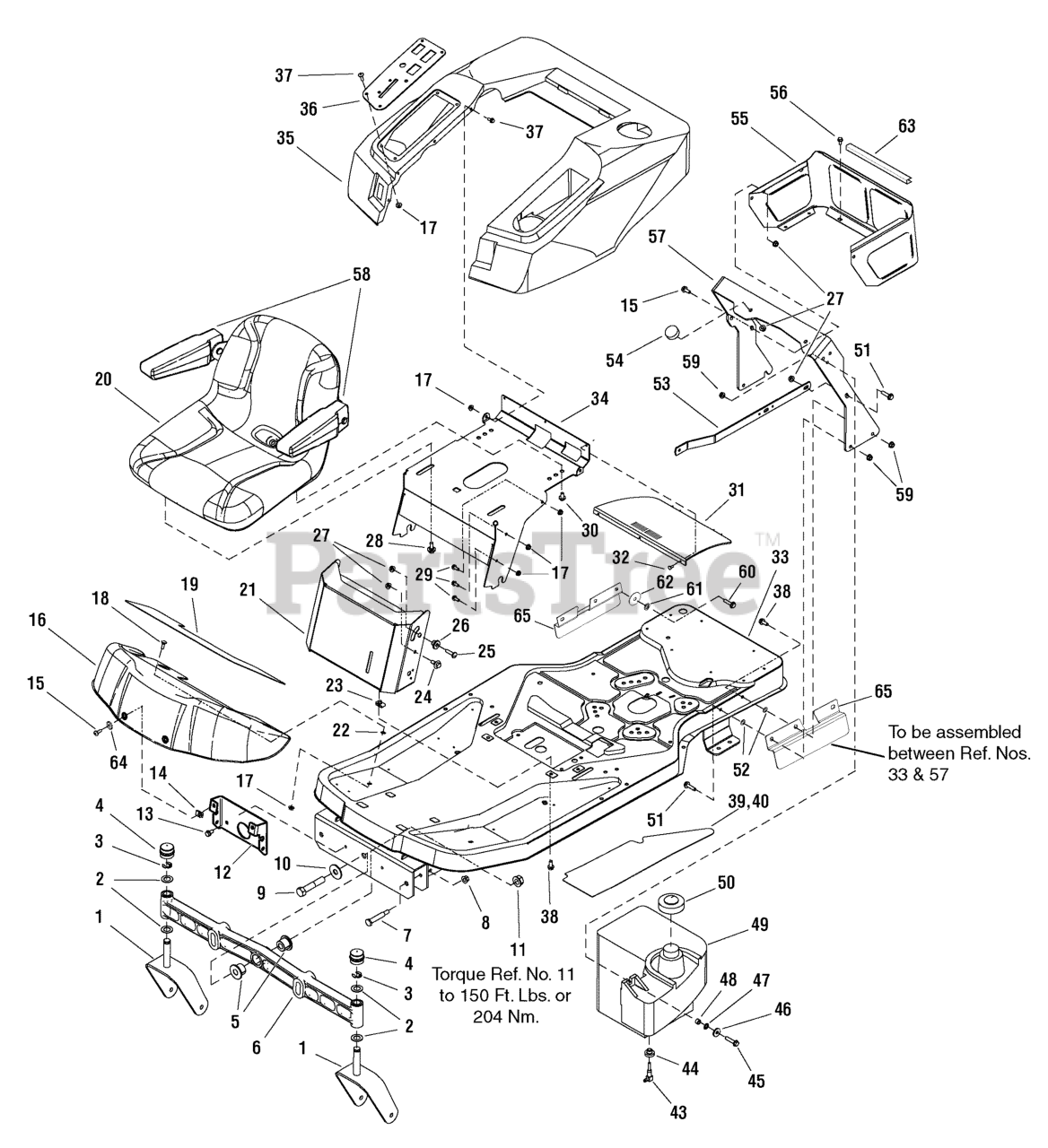

Frame, Body & Seat Group (7501438) Parts Diagram

  • Title

1

Murray 1733448ASM

CASTER ASSEMBLY
(Superseded to 1733448BMYP)

$152.99

$

In Stock, only 3 left!

0

2

Murray 1960160SM

WASHER, 3/4 ID x 1.6 OD x .05 THK

$4.99

$

In Stock, Qty 9

0

3

Murray 1611710SM

RING, Klipring, 3/4

$4.49

$

In Stock, Qty 20+

0

4

Murray 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 20+

0

5

Murray 1730186SM

BUSHING, Axle Pivot

$6.99

$

In Stock, Qty 12

0

6

Murray 1733426ASM

AXLE, Casting
(Superseded to 1733426SM)

Note: (Includes Ref. Nos. 1, 2, 3, 4 & 5)

$243.99

$

Usually ships in 2-12 days

0

7

Murray 1733571SM

BOLT, Shoulder, G5
(Superseded to 703427)

$5.99

$

Usually ships in 2-12 days

0

8

Murray 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

9

Murray 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

10

Murray 1960035SM

WASHER, 5/8, .64 ID x 1-3/4 OD x .11 THK

$4.49

$

In Stock, only 2 left!

0

11

Murray 2860646SM

NUT, Hex Flange Two-Way Lock, 5/8-11

$10.99

$

In Stock, Qty 6

0

12

Murray 1733304ASM

BRACKET, Front Footrest Support

$52.99

$

Usually ships in 2-12 days

0

13

Murray 1930601SM

SCREW, Hex Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

14

Murray 1960368SM

NUT, Speed Lug Type, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

15

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

Murray 1726025BNYP

FRONT FOOTREST Sears 6000 Craftsman Red

$162.99

$

Usually ships in 2-12 days

0

17

Murray 1960694SM

NUT, Hex Flange, 1/4-20 ESNA
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

19

Murray 1726306SM

PAD, Footrest Panel

$119.99

$

Usually ships in 2-12 days

0

20

Murray 1726018SM

SEAT ASSEMBLY, with Armrests

$744.99

$

In Stock, only 1 left!

0

21

Murray 7300752AYP

PANEL, Front - Manual Brake and Deck Lift

$72.99

$

Usually ships in 2-12 days

0

22

Murray 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

23

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

24

Murray 009X67MA

BOLT, Shoulder

$5.49

$

In Stock, only 3 left!

0

25

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

26

Murray 1728086SM

PIVOT, Hood, Powdered Metal

$5.99

$

In Stock, Qty 7

0

27

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Murray 1716654SM

BOLT, Shoulder, G5

$5.49

$

In Stock, only 2 left!

0

29

Murray 1960295SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

30

Murray 1960738SM

SCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 Dog PT
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

31

Murray 7102141SM

SCREEN, Seat Deck

$42.99

$

In Stock, only 1 left!

0

32

Murray 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

33

Murray 1733227ASM

FRAME ASSEMBLY

$866.99

$

Usually ships in 2-12 days

0

34

Murray 1733965ASM

SUPPORT, Seat

$289.99

$

In Stock, only 1 left!

0

35

Murray 7102654YP

SEAT DECK, Plastic Sears Craftsman Red ZTS
(Superseded to 1734143SM)

$

$

Not available

36

Murray 7301055BMYP

PLATE, Control

$17.99

$

Usually ships in 2-12 days

0

37

Murray 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

38

Murray 7091591SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

39

Murray 1728986SM

PAD, Footrest R.H.

$10.99

$

Usually ships in 2-12 days

0

40

Murray 1728987SM

PAD, Footrest L.H.

$10.99

$

In Stock, only 1 left!

0

43

Murray 1674792SM

ELBOW, Gas Tank

$15.99

$

In Stock, Qty 13

0

44

Murray 1726400SM

BUSHING, Fuel
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

45

Murray 1921221SM

CAPSCREW, 5/16, 18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

46

Murray 1919381SM

WASHER, 5/16, .34 ID x 1 OD x .13 THK
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

47

Murray 7090189SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703936)

$4.49

$

In Stock, only 2 left!

0

48

Murray 7024340SM

SPACER

$4.99

$

In Stock, only 4 left!

0

49

Murray 7102378SM

TANK, Fuel

$267.99

$

In Stock, only 1 left!

0

50

Murray 1734320SM

CAP, Fuel Tank

$31.99

$

Usually ships in 2-12 days

0

51

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

52

Murray 1933988SM

NUT, Push Pal, 5/16 DIA Thread, 5/8 OD
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

53

Murray 1727810ASM

BRACE, Tank

$17.99

$

Usually ships in 2-12 days

0

54

Murray 1726390SM

BUMPER, Rubber

$9.99

$

Usually ships in 2-12 days

0

55

Murray 1715962ASM

SHROUD, Rear
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

56

Murray 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

57

Murray 1733393ASM

SUPPORT, Seat Deck

$307.99

$

Usually ships in 2-12 days

0

58

Murray 1687021SM

ARM REST KIT, L.H. & R.H.

$240.99

$

Usually ships in 2-12 days

0

59

Murray 1960686SM

NUT, Hex Flange Nylock, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

60

Murray 1920415SM

CAPSCREW, 3/8 - 16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

61

Murray 1931942SM

NUT, Push Pal, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

62

Murray 1960534SM

WASHER, 3/8

$

$

Not available

63

Murray 7070814SM

TRIM, 8"

$10.99

$

Usually ships in 2-12 days

0

64

Murray 1921880SM

WASHER, External Tooth, 1/4

$3.49

$

Usually ships in 2-12 days

0

65

Murray 1734392ASM

GUARD, Debris

$20.99

$

Usually ships in 2-12 days
