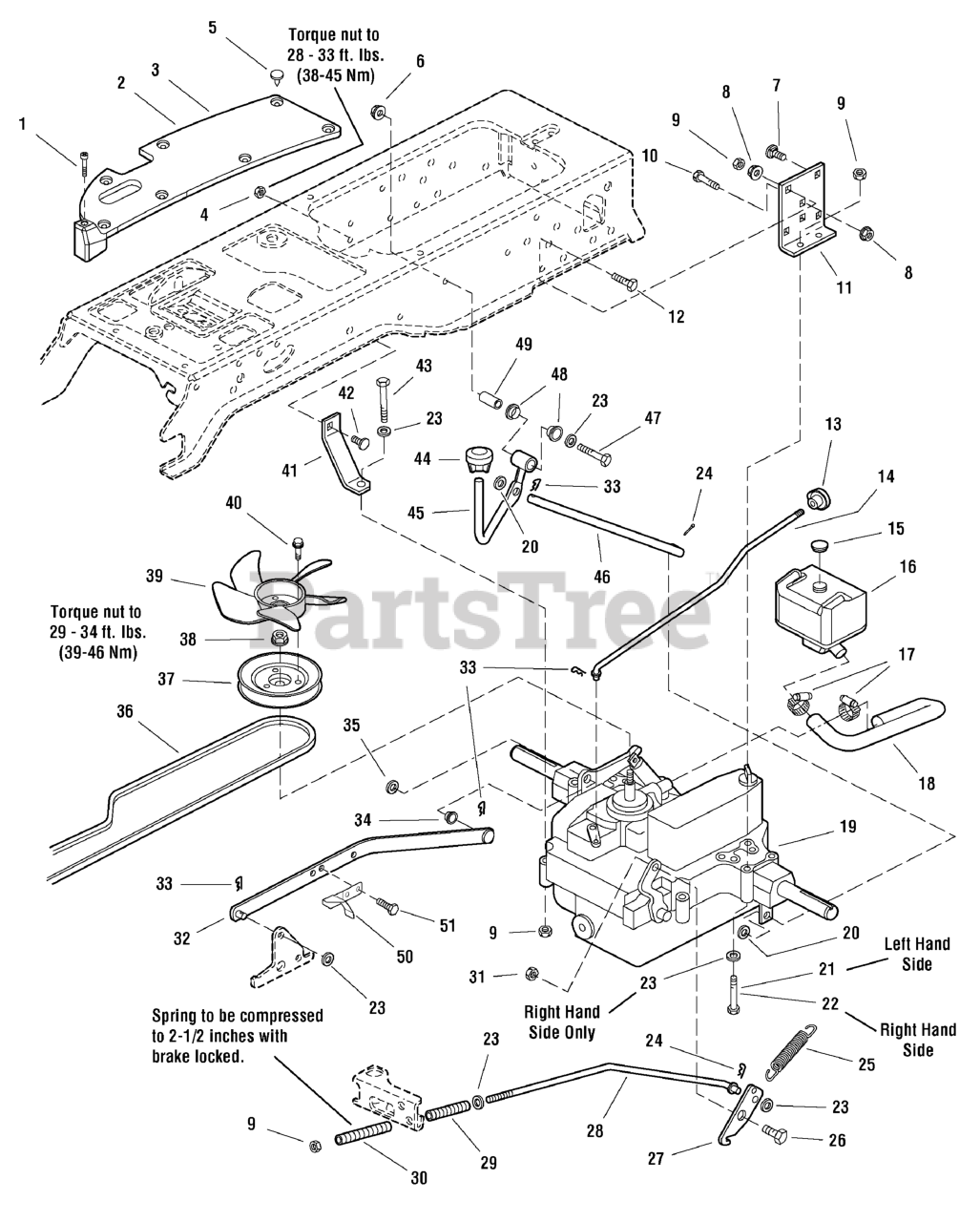

107.289851 (2690922 A) - Craftsman Prestige PGT9500 Series 54" Garden Tractor, 30hp (2011) Transmission Group Parts Diagram

Prestige PGT9500 Series 54" Garden Tractor, 30hp

Transmission Group Parts Diagram

  • Title

1

Murray 1960676SM

SCREW, Pan Head Trox Taptite, 1/4-20 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

2

Murray 1722173SM

PAD, Footrest, RH

$32.99

$

Usually ships in 2-12 days

0

3

Murray 1722174SM

PAD, Footrest, LH, Differential Lock

$30.99

$

Usually ships in 2-12 days

0

4

Murray 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

5

Murray 1704351SM

FASTENER, 3/4 Long Stem Plastic

$4.99

$

In Stock, only 4 left!

0

6

Murray 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16, Large
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

7

Murray 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

8

Murray 1960637SM

NUT, Hex KEPS, 3/8-16

$3.49

$

In Stock, only 1 left!

0

9

Murray 1960687SM

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

10

Murray 1960136SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

Usually ships in 2-12 days

0

11

Murray 1721728ASM

SUPPORT

$14.99

$

Usually ships in 2-12 days

0

12

Murray 1921969SM

CAPSCREW, Hex Head 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

13

Murray 1723126SM

KNOB, Internal Thread 1/4-20

$6.99

$

In Stock, only 2 left!

0

14

Murray 1721622SM

ROD, Free Wheel, 18-3/16 Long

$15.99

$

Usually ships in 2-12 days

0

15

Murray 1722711SM

CAP, Expansion Tank Plastic

$7.99

$

Usually ships in 2-12 days

0

16

Murray 1722430SM

TANK, Oil Natural

$69.99

$

Usually ships in 2-12 days

0

17

Murray 1723214SM

CLAMP, Hose Worm Drive # 20 1 3/4"

$5.99

$

Usually ships in 2-12 days

0

18

Murray 1722468SM

HOSE, Expansion Tank Formed
(Superseded to 1755802YP)

$82.99

$

Usually ships in 2-12 days

0

19

Murray 1721404SM

TRANSMISSION ASSEMBLY, K71E

$3419.99

$

Usually ships in 2-12 days

0

20

Murray 1918267SM

WASHER, 7/16

$3.99

$

In Stock, only 1 left!

0

21

Murray 1922918SM

CAPSCREW, LH, Hex Head, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

22

Murray 1960653SM

CAPSCREW, RH, Hex Head, 3/8-16 x 3-3/4

$

$

Not available

23

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Murray 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

25

Murray 2159106SM

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

26

Murray 1923114SM

CAPSCREW, Hex Head, 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

27

Murray 1721474ASM

ARM, Brake

$10.99

$

Usually ships in 2-12 days

0

28

Murray 1721470SM

ROD, Brake

$48.99

$

Usually ships in 2-12 days

0

29

Murray 1722684SM

SPRING

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1729277SM

SPRING

$6.99

$

In Stock, only 1 left!

0

31

Murray 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

32

Murray 1726753SM

ARM & WELD, PINS ASSEMBLY, Control K71

$43.99

$

Usually ships in 2-12 days

0

33

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

34

Murray 1722648SM

BEARING, 1/2 x 9/16 x 11/32, Nylon

$6.99

$

Usually ships in 2-12 days

0

35

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

36

Murray 1721393SM

V-BELT, Transmission Drive

$54.99

$

In Stock, Qty 20+

0

37

Murray 1722194SM

PULLEY & HUB ASSEMBLY, Transmission

$86.99

$

In Stock, only 1 left!

0

38

Murray 1722517SM

NUT, Hex Flange, M12-1.75, Nylon Insert

$3.49

$

Usually ships in 2-12 days

0

39

Murray 1719233SM

FAN, 5 Blades, Nylon, 3-Holes

$27.99

$

Usually ships in 2-12 days

0

40

Murray 1933958SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1-1/8

$4.49

$

In Stock, only 1 left!

0

41

Murray 1721412ASM

BRACKET, Transmission

$

$

Not available

42

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

43

Murray 1921973SM

CAPSCREW, Hex Head, 3/8-16 x 2-3/4

$5.49

$

Usually ships in 2-12 days

0

44

Murray 1716289SM

KNOB, Hole, 1/2 x 1-3/4, 2-11/16

$13.99

$

In Stock, only 1 left!

0

45

Murray 1721360SM

ROD & TUBE ASSEMBLY, Differential Lock, Pedal
(Superseded to 1721360AYP)

$50.99

$

Usually ships in 2-12 days

0

46

Murray 1721367SM

ROD, Differential Lock, K71

$26.99

$

Usually ships in 2-12 days

0

47

Murray 1922130SM

CAPSCREW, Hex Head 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

48

Murray 1676148SM

BUSHING, 5/8 x 3/4 x 13/32, Powder Metal

$5.99

$

In Stock, Qty 20+

0

49

Murray 1669105SM

SPACER, 1 1/2" Long Hardened

$13.99

$

In Stock, only 2 left!

0

50

Murray 1727215ASM

ACTUATOR, Switch

$21.99

$

Usually ships in 2-12 days

0

51

Murray 1924856SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0
