107.287910 (7800340) - Craftsman ZTS7500 Series 50" Zero-Turn Mower, 26hp Kohler (2008) Engine Group - 26HP Kohler (7500957) Parts Diagram

ZTS7500 Series 50" Zero-Turn Mower, 26hp Kohler

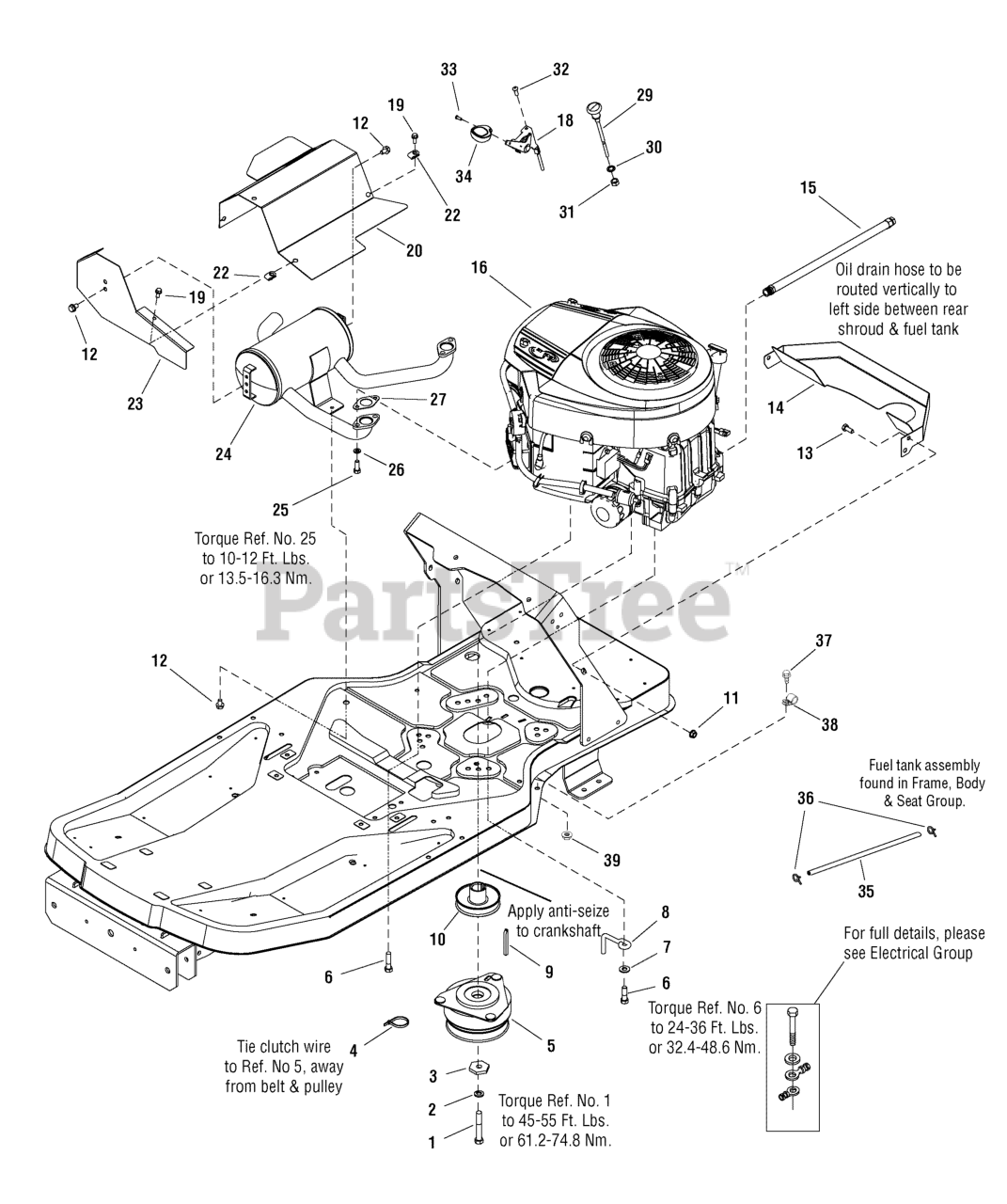

Engine Group - 26HP Kohler (7500957) Parts Diagram

  • Title

1

Murray 7027266SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$7.49

$

Usually ships in 2-12 days

0

2

Murray 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

3

Murray 1708264SM

WASHER, Hex, 7/16

$8.99

$

In Stock, Qty 5

0

4

Murray 2832747SM

TIE, Self-Locking, 3.62"

$3.99

$

Usually ships in 2-12 days

0

5

Murray 1686880SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

6

Murray 2828635SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

7

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Murray 7101717SM

RETAINER, Clutch

$

$

Not available

9

Murray 2154096SM

KEY

$6.99

$

In Stock, only 1 left!

0

10

Murray 7101716SM

PULLEY ASSEMBLY, Engine

$50.99

$

Usually ships in 2-12 days

0

11

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Murray 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

13

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

14

Murray 7300970ASM

AIR DUCT, Inlet

$74.99

$

Usually ships in 2-12 days

0

15

Murray 1726498SM

HOSE, Oil Drain, 16.5"

$26.99

$

Usually ships in 2-12 days

0

16

ENGINE, 26HP Kohler, V-Twin Courage

Note: (Model - SV735, Type - 0018)

$

$

Not available

18

Murray 7075449SM

THROTTLE ASSEMBLY

$37.99

$

Usually ships in 2-12 days

0

20

Murray 7300971ASM

HEAT SHIELD, Muffler Top

$91.99

$

Usually ships in 2-12 days

0

22

Murray 1960368SM

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

23

Murray 1727939ASM

HEAT SHIELD, Muffler Side

$29.99

$

Usually ships in 2-12 days

0

24

Murray 7102318SM

MUFFLER, 26HP Kohler V-Twin Courage

$

$

Not available

25

Murray 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 1 left!

0

26

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

29

Murray 7102344SM

CABLE, Choke

$45.99

$

Usually ships in 2-12 days

0

30

Murray 7090390SM

WASHER, Lock Internal Tooth, 3/8
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

31

Murray 7091630SM

NUT, Hex, 3/8
(Superseded to 703895)

$4.49

$

Usually ships in 2-12 days

0

32

Murray 7090999SM

SCREW, Taptite Pan Head Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

33

Murray 7091195SM

SCREW, Taptite Pan Head Combo, #10-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

34

Murray 7100529SM

KNOB, Throttle
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

35

Murray 1735196SM

HOSE, Fuel, 24"

Note: (See Frame, Body & Seat Group for fuel tank assembly.)

$8.99

$

Usually ships in 2-12 days

0

36

Murray 7012222SM

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

37

Murray 1930591SM

CAPSCREW, Hex Head 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

38

Murray 7900020SM

CLIP, Harness

$4.49

$

Usually ships in 2-12 days

0

39

Murray 1932377SM

NUT, Hex Whiz Lock Flange, 5/16-18

$

$

Not available
