107.287860 (7800338) - Craftsman ZTS7500 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton (2008) Engine Group - 21HP Briggs & Stratton (7500863_7500876) Parts Diagram

ZTS7500 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton

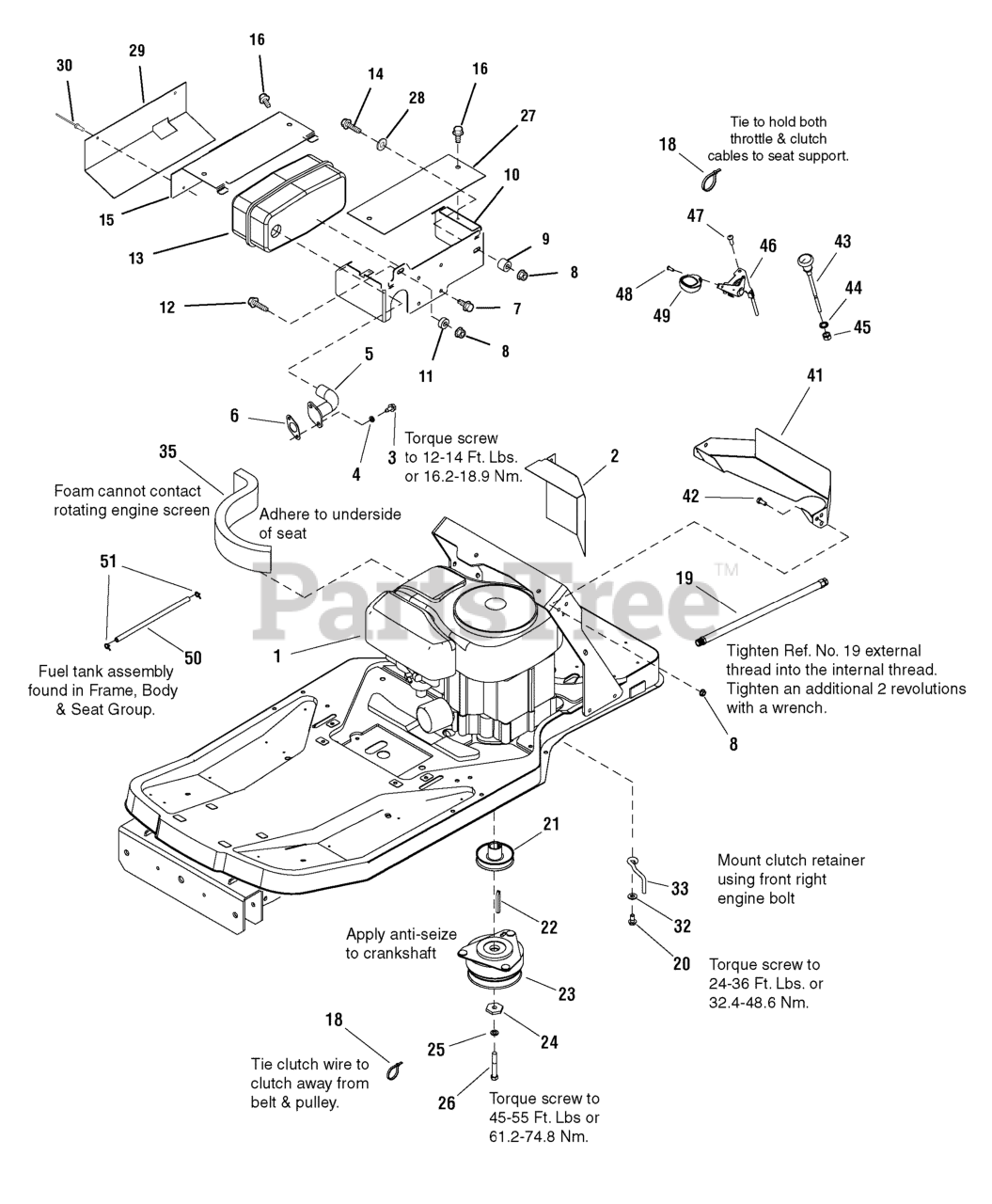

Engine Group - 21HP Briggs & Stratton (7500863_7500876) Parts Diagram

  • Title

1

ENGINE, 21HP Briggs & Stratton Platnum Single, 49 State

Note: (Model - 331877, Type - 0144, Trim - B1)

$

$

Not available

1

ENGINE, 21HP Briggs & Stratton Platnum Single, California

Note: (Model - 331877, Type - 0144, Trim - B1)

$

$

Not available

2

Murray 7300919ASM

HEAT SHIELD, Inner

$47.99

$

Usually ships in 2-12 days

0

3

Murray 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 1 left!

0

4

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Murray 1732259SM

PIPE ASSEMBLY, Exhaust

$34.99

$

Usually ships in 2-12 days

0

6

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

7

Murray 1960295SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

8

Murray 1927557SM

NUT, Hex Whiz Lock Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

9

Murray 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

10

Murray 7300917SM

BRACKET, Muffler/Heat Shield

$78.99

$

In Stock, only 1 left!

0

11

Murray 1667811SM

SPACER, .390 ID x .9 OD x .34 LG, Powdered Metal

$3.49

$

In Stock, Qty 20+

0

12

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

13

Murray 1732273SM

MUFFLER ASSEMBLY, Single

$93.99

$

In Stock, Qty 5

0

14

Murray 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

15

Murray 7300918ASM

HEAT SHIELD, Outer Single

$48.99

$

Usually ships in 2-12 days

0

16

Murray 1960720SM

CAPSCREW, Thread Cutting, # 10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

18

Murray 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

19

Murray 1726498SM

HOSE, Oil Drain, 16-1/2 LG

$26.99

$

Usually ships in 2-12 days

0

20

Murray 2828635SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

21

Murray 7101716SM

PULLEY ASSEMBLY, Engine

$50.99

$

Usually ships in 2-12 days

0

22

Murray 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

23

Murray 1717664SM

CLUTCH, Electric
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

24

Murray 1708264SM

WASHER, Hex, .453 ID x 1-1/2

$8.99

$

In Stock, Qty 5

0

25

Murray 1918199SM

LOCKWSHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Murray 7027266SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$7.49

$

Usually ships in 2-12 days

0

27

Murray 1732885ASM

HEAT SHIELD

$15.99

$

Usually ships in 2-12 days

0

28

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

29

Murray 1733063SM

HEAT SHIELD

$48.99

$

Usually ships in 2-12 days

0

30

Murray 1675044SM

RIVET, Pop

$3.99

$

In Stock, only 1 left!

0

32

Murray 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Murray 7101717SM

RETAINER, Clutch

$

$

Not available

35

Murray 7102139SM

SEAL, Foam Air Duct, 1 x 2-1/2, 12" LG

$47.99

$

Usually ships in 2-12 days

0

41

Murray 1734180ASM

AIR DUCT, Inlet

$69.99

$

Usually ships in 2-12 days

0

42

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

46

Murray 7103123YP

CONTROL, Throttle

$43.99

$

Usually ships in 2-12 days

0

47

Murray 7090999SM

SCREW, Pan Head Taptite Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

48

Murray 7091195SM

SCREW, Pan Head Taptite Combo, 310-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

49

Murray 7100529SM

KNOB, Throttle
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

50

Murray 1734984SM

HOSE, Fuel, 19.5"

Note: (See Frame, Body & Seat Group for fuel tank assembly.)

$

$

Not available

51

Murray 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0
