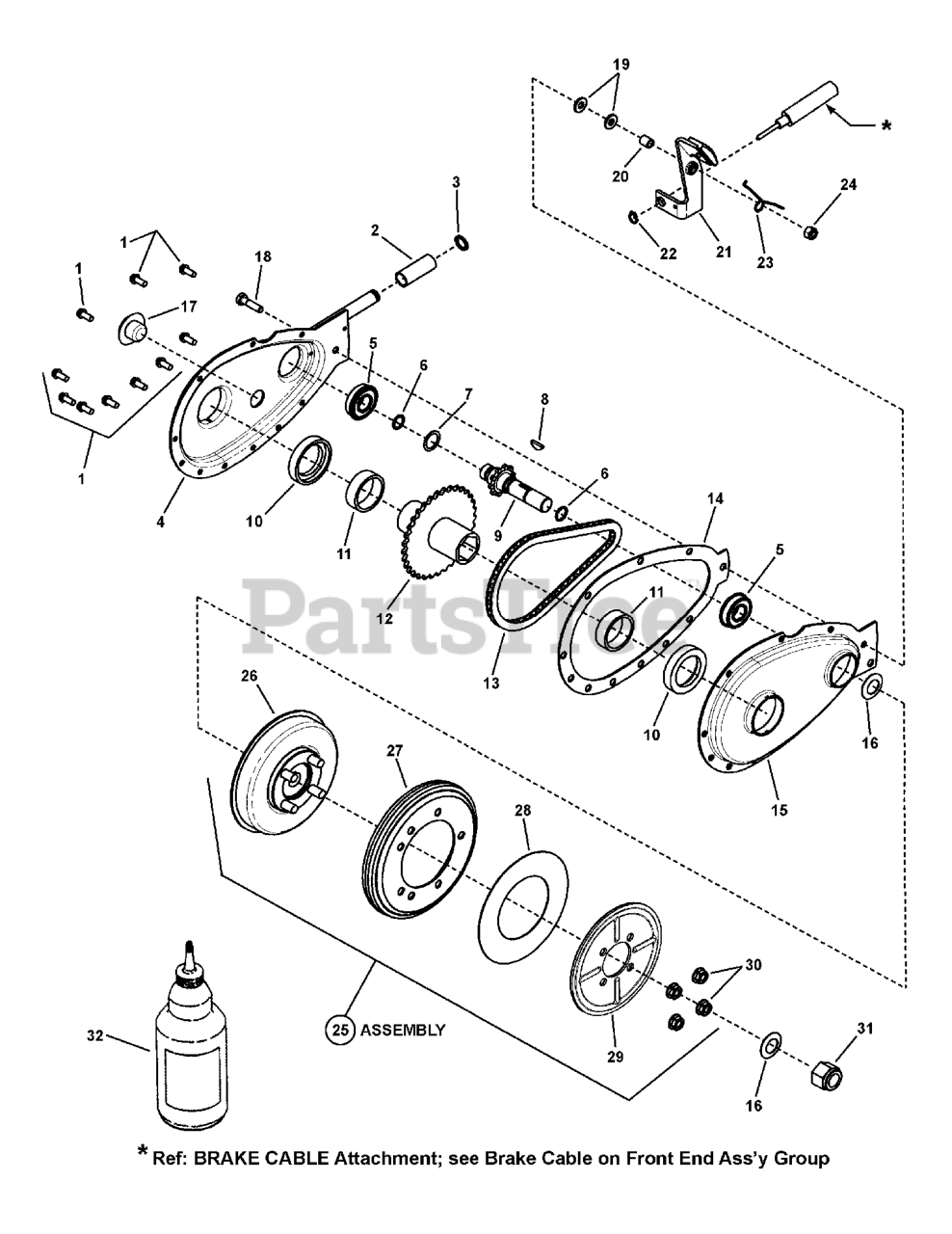

107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) Primary Chain Case & Smooth Clutch Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

Primary Chain Case & Smooth Clutch Group Parts Diagram

  • Title

--

Murray 7052683

ASSEMBLY, Primary Chain Case
(Superseded to 7052683YP)

Note: (Includes the following 16 items)

$530.99

$

In Stock, only 1 left!

0

1

Murray 7090913

SCREW, 10-24 x 1/2" Hex Washer Self-Tap

$3.49

$

In Stock, Qty 11

0

2

Murray 7022785

ROLLER, 1-3/8 Long
(Superseded to 7022785YP)

$6.49

$

In Stock, only 2 left!

0

3

Murray 7010776

RING, 1/2" External Retaining (Heavy Duty)
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

4

Murray 7041136

WELDMENT, Primary Chain Case Half, Right Hand
(Superseded to 7041136YP)

$86.99

$

In Stock, only 1 left!

0

5

Murray 7010756

BEARING, .625 x 1.37 x .435
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

6

Murray 7019260

O-RING, 1/2 x 5/8"
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

7

Murray 7027981

WASHER, Shim .625 x .875
(Superseded to 7027981YP)

$4.49

$

In Stock, Qty 12

0

8

Murray 7010614

KEY, #5 Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

9

Murray 7018963

WELDMENT, Sprocket & Shaft
(Superseded to 7018963YP)

$96.99

$

In Stock, only 3 left!

0

10

Murray 7011086

THRUST WASHER, Nylon
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 12

0

11

Murray 7010942

BEARING, Needle 1.355" ID x 1.6245" OD x .5" Wide
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

12

Murray 7040355

WELDMENT, Hub & Sprocket
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

13

Murray 7010941

CHAIN, 46 Pitch (#35 Endless)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

14

Murray 7028761

GASKET, Primary Chain Case
(Superseded to 7028761YP)

$24.99

$

In Stock, Qty 20+

0

15

Murray 7039778

PRIMARY CHAIN CASE HALF, Left Hand
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

16

Murray 7011121

WASHER, 5/8" Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

17

Murray 7011024

PLUG, 3/4" Cup Insert
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

18

Murray 7091504

SCREW, 1/4-28 x 1" Hex Head Cap, (Washer Face) GR 5
(Superseded to 7091504YP)

$4.49

$

In Stock, only 4 left!

0

19

Murray 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

20

Murray 7072593

SPACER, Brake Arm Pivot (.418/.403 long)
(Superseded to 7072593YP)

$5.49

$

In Stock, only 3 left!

0

21

Murray 7600134

KIT, Brake Lever Assembly (Includes brake pad & rivet)
(Superseded to 7052497YP)

$13.99

$

In Stock, Qty 20+

0

22

Murray 7012313

RING, 3/8" External Retaining
(Superseded to 7012313SM)

$3.99

$

In Stock, Qty 12

0

23

Murray 7072406

* SPRING, Torsional Brake Return
(Superseded to 7072406YP)

$

$

Not available

24

Murray 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

25

Murray 7600136

KIT, Smooth Clutch Assembly (non-asbestos)
(Superseded to 7600208YP)

Note: (Includes the following 5 items)

$

$

Not available

26

Murray 7600142

KIT, Driven Disc Hub (assembly)
(Superseded to 7600142YP)

$42.99

$

In Stock, Qty 20+

0

27

Murray 7600135

KIT, Driven Disc (rubber tire bonded to rim)
(Superseded to 7600135YP)

$42.99

$

In Stock, Qty 20+

0

28

Murray 7014523

THRUST WASHER
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

29

Murray 7032331

PLATE, Drive Disc
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

30

Murray 7092081

NUT, 5/16-24 Hex Flange Lock
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

31

Murray 7091505

NUT, 5/8-18 Hex Nyloc
(Superseded to 703432)

$

$

Not available

32

Murray 7061017

** GREASE, Transmission (Use 2 oz. Maximum)
(Superseded to 7061017YP)

$

$

Not available
