107.280341 (7800669 A) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2011) 28" Mower Deck - Belt, Brake & Interlock Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

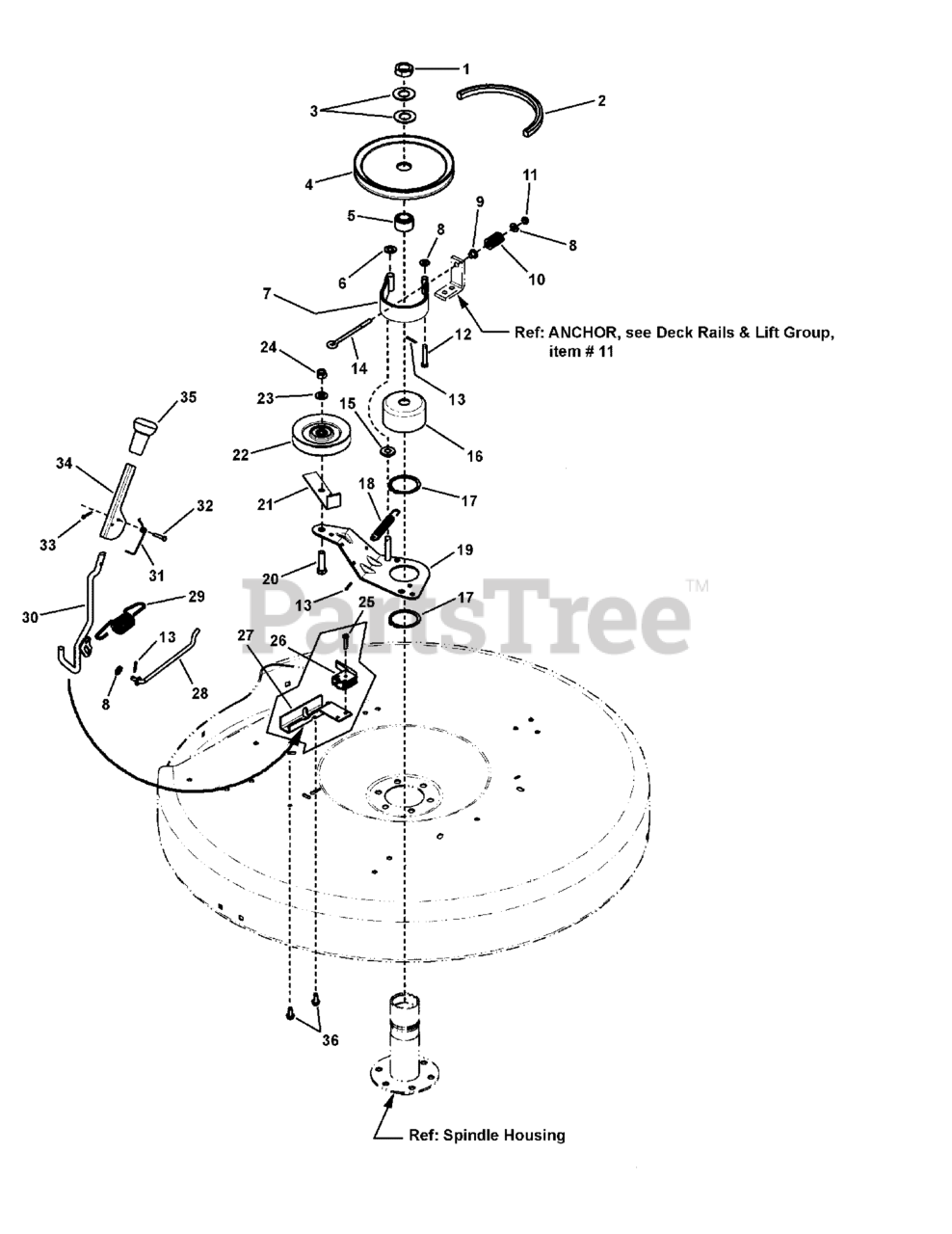

28" Mower Deck - Belt, Brake & Interlock Group Parts Diagram

  • Title

1

Murray 7074467SM

NUT, 3/4-16 Hex Jam, GR 8

$4.49

$

In Stock, Qty 10

0

2

Murray 7022252YP

* BELT, Drive (72.75" AA Section)

$25.99

$

Usually ships in 2-12 days

0

3

Murray 7032027SM

WASHER, 49/64" I.D. x 1-1/2" O.D. Flat

$4.49

$

In Stock, Qty 7

0

4

Murray 7018781YP

PULLEY, Deck
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

5

Murray 7015290YP

HUB, Pulley (Powdered Metal)

$6.49

$

In Stock, Qty 10

0

6

Murray 7090122YP

WASHER, 3/8" Flat SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 18

0

7

Murray 7600133YP

KIT, Brake Band (Formed)

$41.99

$

In Stock, Qty 7

0

8

Murray 7091294SM

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

9

Murray 7014343YP

BUSHING, Flange .27 x .35 x .4

$3.99

$

In Stock, Qty 20+

0

10

Murray 7046782YP

SPRING, Rectangular Wire Die, Blue

$12.99

$

In Stock, only 1 left!

0

11

Murray 7090761YP

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

12

Murray 7014304YP

PIN, 1/4 x 1-5/8" Clevis

$4.49

$

Usually ships in 2-12 days

0

13

Murray 7090037YP

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

14

Murray 7046677YP

EYE-BOLT, 1/4-20 x 4"

$6.99

$

Usually ships in 2-12 days

0

15

Murray 7014314YP

SPACER, .39 x 1.0 x .31 Nylon

$4.99

$

In Stock, only 1 left!

0

16

Murray 7035378YP

DRUM, Brake Spindle, 3" OD, 1.6" Tall

$11.99

$

In Stock, only 2 left!

0

17

Murray 7010740YP

RING, 2" External Retaining

$5.49

$

In Stock, only 2 left!

0

18

Murray 7036521YP

SPRING, Extension, 4" x 1/2" Diameter

$7.49

$

In Stock, Qty 5

0

19

Murray 7047787YP

WELDMENT, Idler Arm
(Superseded to 706001)

$27.99

$

Usually ships in 2-12 days

0

20

Murray 7091497SM

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

21

Murray 7032111YP

RESTRICTOR, Belt

$6.99

$

In Stock, Qty 11

0

22

Murray 7029624YP

PULLEY, Idler, 3/8" ID, 4" OD

$35.99

$

In Stock, Qty 7

0

23

Murray 7091514YP

WASHER, 3/8" Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 18

0

24

Murray 7091299SM

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

25

Murray 7090299YP

SCREW, #10-32 x 1" Hex Washer Head Self-Tap

$4.49

$

Usually ships in 2-12 days

0

26

Murray 7018524YP

SWITCH, Deck Interlock (NO)

$19.99

$

In Stock, Qty 9

0

27

Murray 7038021YP

MOUNT, Handle/Switch

$13.99

$

Usually ships in 2-12 days

0

28

Murray 7012055YP

ROD, Idler Control

$15.99

$

In Stock, only 3 left!

0

29

Murray 7014168YP

SPRING, Blade Handle

$6.49

$

In Stock, Qty 9

0

30

Murray 7059254YP

WELDMENT, Blade Engagement Handle

$39.99

$

Usually ships in 2-12 days

0

31

Murray 7046648YP

SPRING, Torsion, Flip Handle

$5.49

$

In Stock, only 4 left!

0

32

Murray 7091974YP

PIN, 3/16 x 1" Clevis

$4.49

$

Usually ships in 2-12 days

0

33

Murray 7090555YP

PIN, 3/32 x 1/2" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

34

Murray 7046567BMYP

HANDLE, Blade Engagement (Flip)

$13.99

$

In Stock, only 2 left!

0

35

Murray 7046874YP

GRIP, Handle

$9.99

$

In Stock, Qty 8

0

36

Murray 7090362YP

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
