107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Yoke Lift Components Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

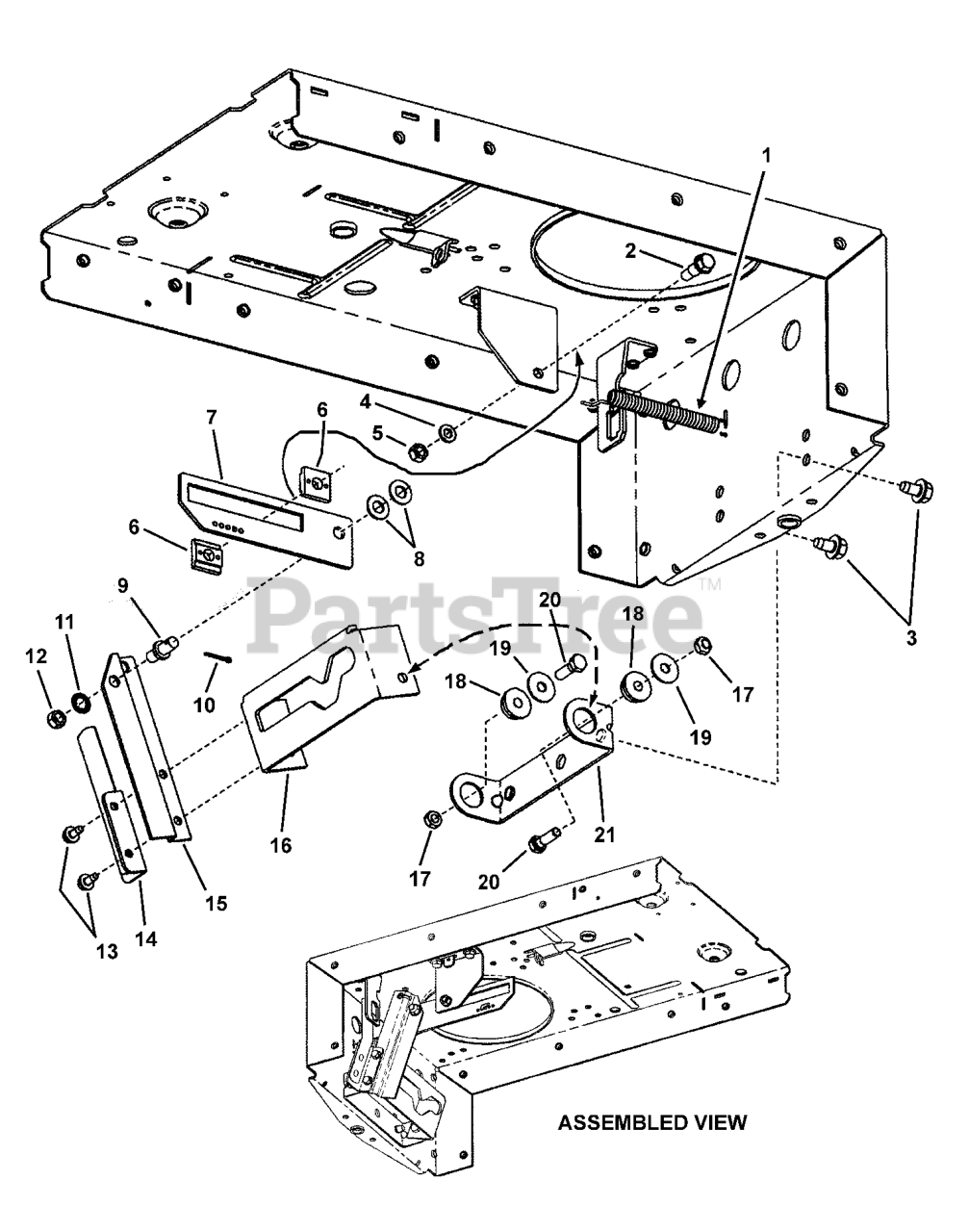

Yoke Lift Components Parts Diagram

  • Title
1

Murray 7013885YP

SPRING, Clutch & Brake

$

$

Not available

2

Murray 7014664SM

BOLT, 5/16-18 Shoulder

$1.99

$

Usually ships in 2-12 days

0

3

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

4

Murray 7090187SM

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Murray 7090196YP

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Murray 7014663YP

SLIDE HALF

$4.49

$

In Stock, only 4 left!

0

7

Murray 7047190YP

BRACKET, Slide
(Superseded to 7047190BMYP)

$12.99

$

In Stock, only 1 left!

0

8

Murray 7090122YP

WASHER, 3/8" Flat SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

9

Murray 7015464YP

STUD, Clutch Link (3/8-24 thread)

$7.49

$

In Stock, only 1 left!

0

10

Murray 7090037YP

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

11

Murray 7090390SM

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

12

Murray 7090155YP

NUT, 3/8-24 Hex, GR 5 or B
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

13

Murray 7090539YP

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

14

Murray 7059068YP

ASSEMBLY, Leaf Spring
(Superseded to 7600141YP)

$59.99

$

In Stock, only 1 left!

0

15

Murray 7073733YP

ARM, Yoke

$9.49

$

Usually ships in 2-12 days

0

16

Murray 7046162YP

LIFT, Yoke
(Superseded to 7046162BMYP)

$22.99

$

In Stock, only 3 left!

0

17

Murray 7011201YP

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

$3.49

$

In Stock, Qty 20+

0

18

Murray 7011048YP

BEARING, Yoke

$4.49

$

In Stock, Qty 20+

0

19

Murray 7011763SM

FENDER WASHER, 5/16"

$4.49

$

In Stock, only 4 left!

0

20

Murray 7090238SM

SCREW, 5/16-24 x 1" Hex Head Cap, GR 5
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

21

Murray 7033291YP

COLLAR, Yoke

$56.99

$

In Stock, only 1 left!

0
