107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Rails, Lift Arms & Cam Lift Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

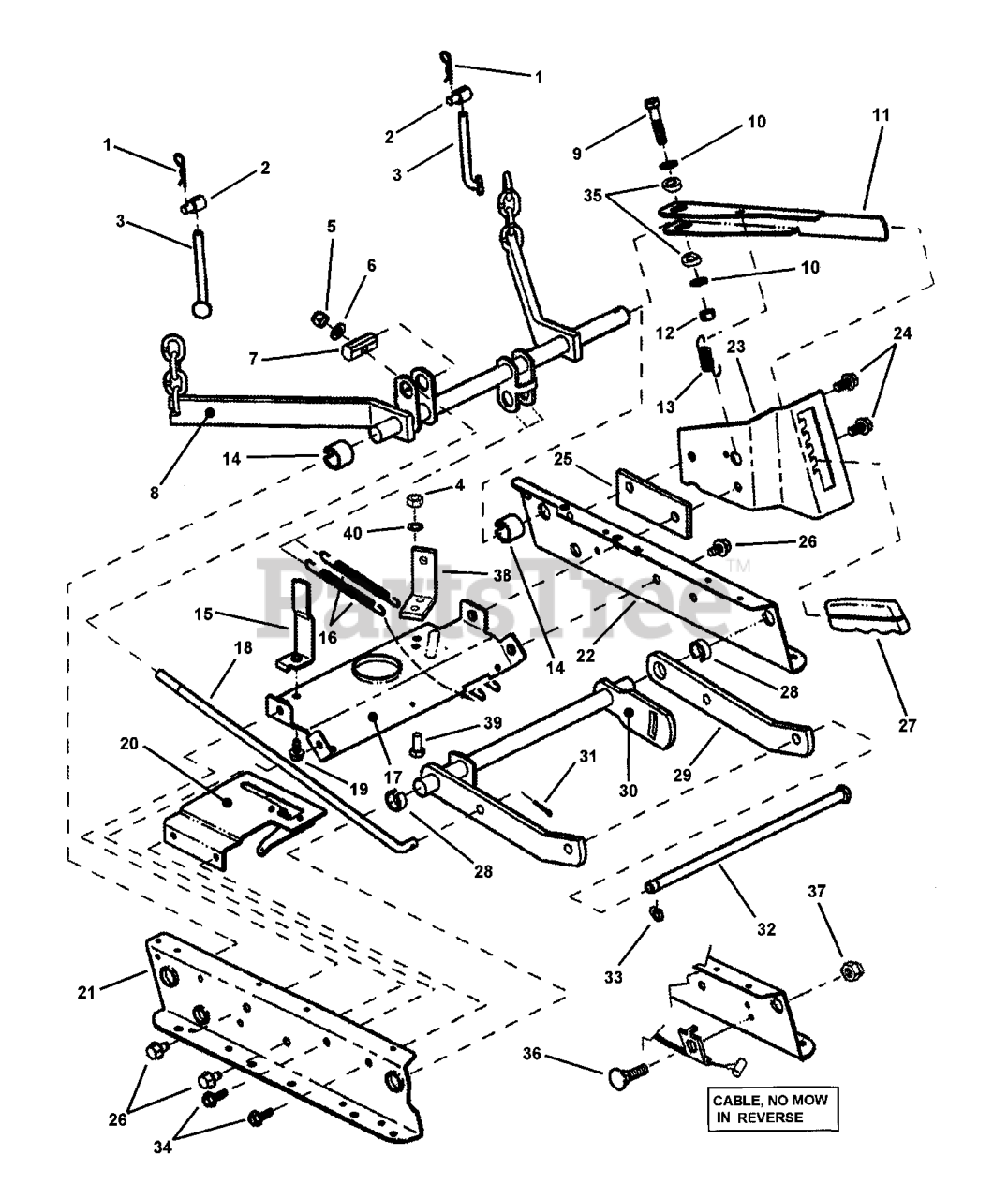

Rails, Lift Arms & Cam Lift Group Parts Diagram

  • Title

1

Murray 7091503SM

HAIR PIN, 3/32 x 1-1/2"

$3.99

$

In Stock, Qty 20+

0

2

Murray 7028200SM

SWIVEL, Adjustable

$13.99

$

In Stock, only 3 left!

0

3

Murray 7028728SM

ADJUSTER, Chain (5/16-18 thread)
(Superseded to 703827)

$10.99

$

Usually ships in 2-12 days

0

4

Murray 7091297SM

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

5

Murray 7090854YP

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

6

Murray 7090122YP

WASHER, 3/8" Flat SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

7

Murray 7034213YP

PIVOT, Leveling

$4.99

$

Usually ships in 2-12 days

0

8

Murray 7059324YP

WELDMENT, Rear Lift Arm

$164.99

$

Usually ships in 2-12 days

0

9

Murray 7090483YP

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

10

Murray 7032030SM

WASHER, 13/32 x 1-1/4" Flat

$4.49

$

In Stock, only 1 left!

0

11

Murray 7046155YP

LEVER, Height of Cut

$35.99

$

In Stock, only 1 left!

0

12

Murray 7090289SM

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

13

Murray 7046159YP

SPRING, Lever

$6.99

$

Usually ships in 2-12 days

0

14

Murray 7012068YP

RING, Rear Lift Arm (Blue)

$5.99

$

Usually ships in 2-12 days

0

15

Murray 7031855YP

GUIDE, Belt

$7.49

$

In Stock, only 1 left!

0

16

Murray 7046163YP

SPRING, Assist

$10.99

$

Usually ships in 2-12 days

0

17

Murray 7031838YP

BRACE, Top
(Superseded to 7031838BMYP)

$37.99

$

Usually ships in 2-12 days

0

18

Murray 7016122YP

ROD, Leveling (3/4-24 thread)

$10.99

$

Usually ships in 2-12 days

0

19

Murray 7090361YP

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

20

Murray 7058969YP

ASSEMBLY, Clutch Plate
(Superseded to 7600140YP)

$41.99

$

In Stock, only 2 left!

0

21

Murray 7043848YP

RAIL, Deck Lift, Right Hand
(Superseded to 7036430YP)

$54.99

$

In Stock, only 1 left!

0

22

Murray 7073269YP

RAIL, Deck Lift, Left Hand

$27.99

$

Usually ships in 2-12 days

0

23

Murray 7046157YP

DETENT, Height Adjust

$59.99

$

Usually ships in 2-12 days

0

24

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 1 left!

0

25

Murray 7046217YP

SPACER, Detent

$11.99

$

Usually ships in 2-12 days

0

26

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

27

Murray 7026420YP

GRIP, Height Adjustment Lever
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

28

Murray 7012067YP

RING, Front Lift Arm (Red)

$4.49

$

In Stock, only 2 left!

0

29

Murray 7032997YP

ARM, Front Lift

$16.99

$

In Stock, only 1 left!

0

30

Murray 7058041YP

WELDMENT, Front Lift Arm

$54.99

$

In Stock, only 1 left!

0

31

Murray 7090365YP

PIN, 1/8 x 3/4" Cotter

$3.49

$

Usually ships in 2-12 days

0

32

Murray 7022717YP

ROD, Deck Support (Front Lift Arm to Front End)

$48.99

$

Usually ships in 2-12 days

0

33

Murray 7017847YP

RING, .438 External Retaining

$4.49

$

Usually ships in 2-12 days

0

34

Murray 7090858YP

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

35

Murray 7071920YP

SPACER, Deck Lift

$4.49

$

Usually ships in 2-12 days

0

36

Murray 7092051YP

BOLT, #10-24 x 1" Flat Head Square Neck

$5.49

$

Usually ships in 2-12 days

0

37

Murray 7091290SM

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

38

Murray 7032243YP

ANCHOR

$8.99

$

Usually ships in 2-12 days

0

39

Murray 7090233YP

SCREW, 5/16-24 x 3/4" Hex Head Cap, GR 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

40

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+
