107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Main Case & L.H. Fender Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

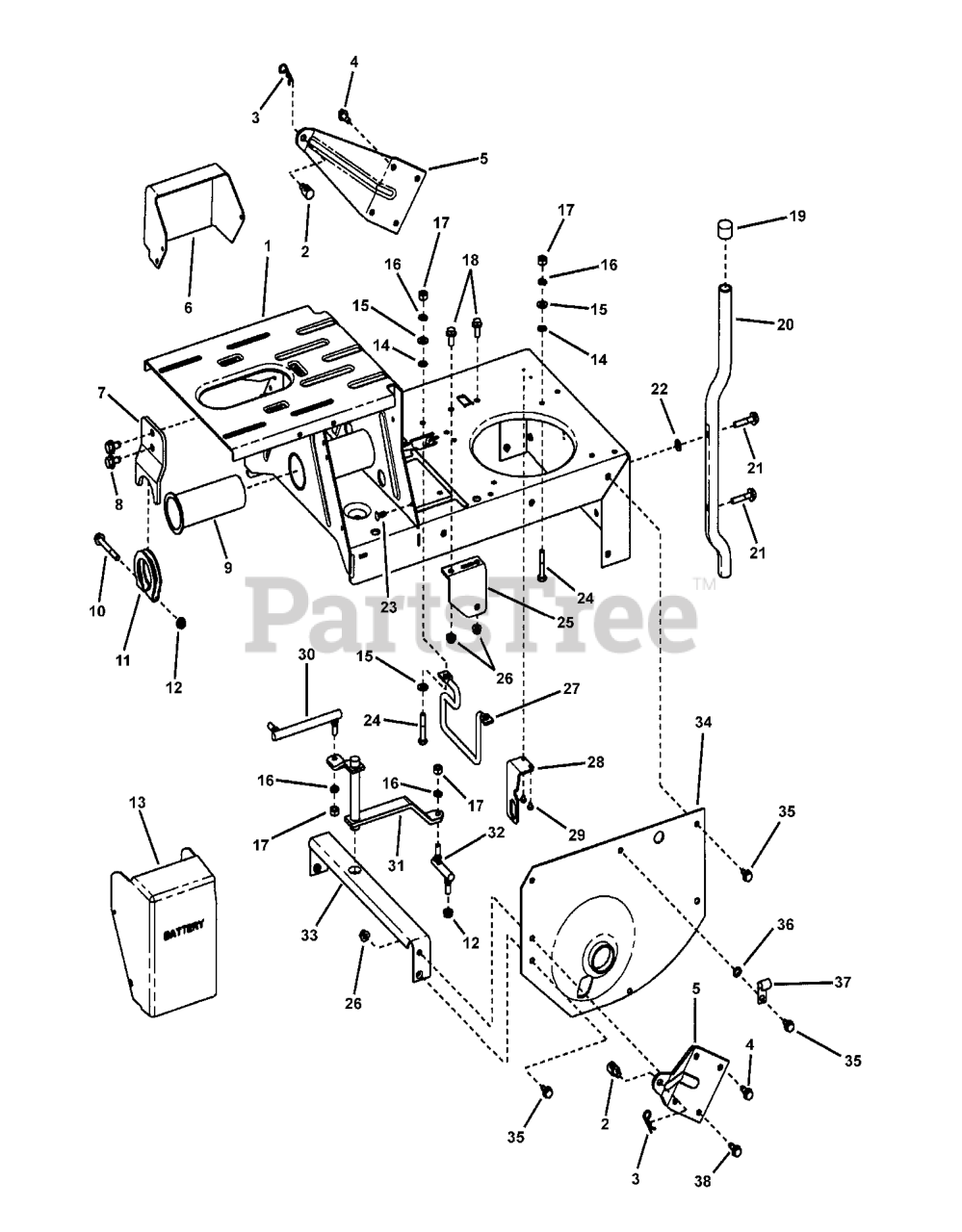

Main Case & L.H. Fender Group Parts Diagram

  • Title

1

Murray 7053697YP

WELDMENT, Main Case (Standard)

$283.99

$

Usually ships in 2-12 days

0

2

Murray 7028200SM

SWIVEL, Adjustable

$13.99

$

In Stock, only 2 left!

0

3

Murray 7091503SM

HAIR PIN, 3/32 x 1-1/2"

$3.99

$

In Stock, Qty 20+

0

4

Murray 7090793YP

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap

$3.49

$

In Stock, only 3 left!

0

5

Murray 7034299YP

WING, Rear

$20.99

$

Usually ships in 2-12 days

0

6

Murray 7073268YP

COVER, Solenoid

$20.99

$

In Stock, only 2 left!

0

7

Murray 7074210YP

BRACKET, Belt Adjuster

$16.99

$

Usually ships in 2-12 days

0

8

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

9

Murray 7074650YP

BUSHING, Pivot

$12.99

$

In Stock, only 3 left!

0

10

Murray 7090358YP

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, GR 5

$4.49

$

In Stock, only 1 left!

0

11

Murray 7031100YP

TUBE CLAMP

$10.99

$

Usually ships in 2-12 days

0

12

Murray 7010969YP

NUT, 5/16-24 Flange Lock (Large)
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

13

Murray 7028990YP

COVER, Battery

$34.99

$

In Stock, only 1 left!

0

14

Murray 7011791SM

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

15

Murray 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

16

Murray 7091315SM

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Murray 7091297SM

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

18

Murray 7090595SM

BOLT, 5/16-18 x 3/4" Hex Flange Lock, GR 5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

19

Murray 7010153YP

CAP, Bumper

$4.49

$

In Stock, only 3 left!

0

20

Murray 7030798ZYP

BUMPER, Rear
(Superseded to 7030798BMYP)

$32.99

$

Usually ships in 2-12 days

0

21

Murray 7091506YP

SCREW, 5/16-18 x 1-1/2" Hex Washer Self-Tap
(Superseded to 704318)

$4.49

$

Usually ships in 2-12 days

0

22

Murray 7090188SM

WASHER, 11/32" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

23

Murray 7091272YP

FASTENER, 1/4" Ratchet

$3.99

$

In Stock, Qty 13

0

24

Murray 7091513YP

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, GR 5

$4.49

$

In Stock, Qty 14

0

25

Murray 7047189YP

BRACKET, Drive Support
(Superseded to 7047189BMYP)

$12.99

$

Usually ships in 2-12 days

0

26

Murray 7090585MA

NUT, 5/16-18 Hex Flange Lock, GR 5

$3.99

$

In Stock, Qty 7

0

27

Murray 7017653YP

BELT GUIDE, 25, 26, 28, 41" (5.74" Bolt Pattern, 4.74" Belt Gap)
(Superseded to 7105172BMYP)

$11.99

$

Usually ships in 2-12 days

0

28

Murray 7073735YP

BRACKET, Switch

$12.99

$

Usually ships in 2-12 days

0

29

Murray 7090981YP

SCREW, #10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

30

Murray 7023676YP

SHIFT LINK, Long (5/16-24 both ends)

$34.99

$

In Stock, only 3 left!

0

31

Murray 7041384YP

WELDMENT, Shift Arm
(Superseded to 7041384BMYP)

$51.99

$

Usually ships in 2-12 days

0

32

Murray 7011018YP

SHIFT LINK, Short (5/16-24 thread)

$18.99

$

In Stock, Qty 16

0

33

Murray 7033799YP

CROSS BRACE

$15.99

$

Usually ships in 2-12 days

0

34

Murray 7037285YP

FENDER, Left Hand (1.628" I. D. Hole)
(Superseded to 7301302YP)

$0.00

$

Usually ships in 2-12 days

0

35

Murray 7090361YP

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

36

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

37

Murray 7012652YP

CLIP, Wire

$3.99

$

Usually ships in 2-12 days

0

38

Murray 7090206YP

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
