107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Gear Shift Assembly Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

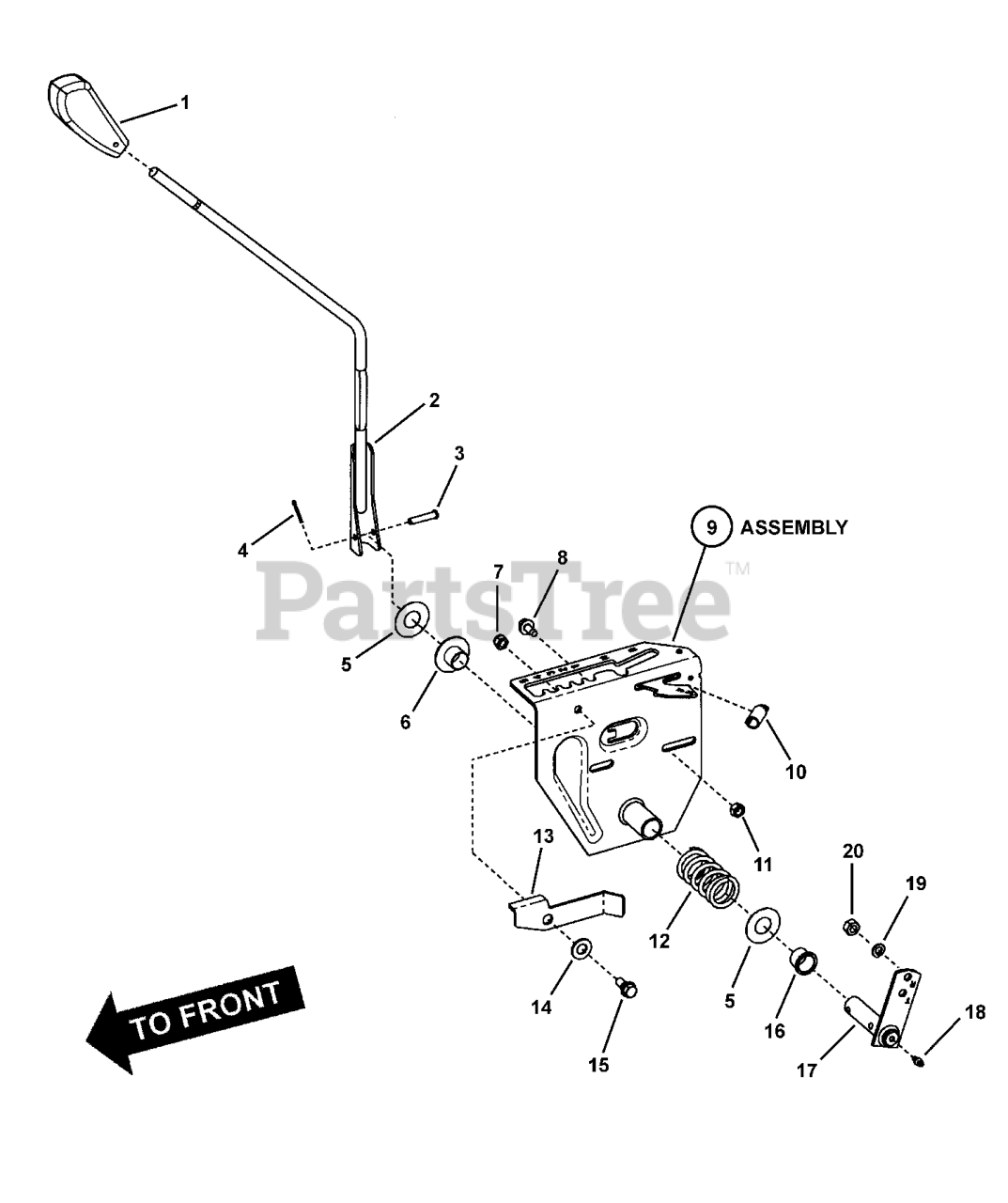

Gear Shift Assembly Parts Diagram

  • Title

1

Murray 7023656YP

GRIP, Shift Handle

$5.99

$

In Stock, Qty 6

0

2

Murray 7059212YP

WELDMENT, Shift Handle
(Superseded to 7059212DYP)

$56.99

$

In Stock, Qty 20+

0

3

Murray 7023914YP

PIN, 1/4 x 1-3/4" Tapered Clevis

$

$

Not available

4

Murray 7090037YP

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

5

Murray 7031036YP

WASHER, Thrust

$3.99

$

Usually ships in 2-12 days

0

6

Murray 7019245YP

BUSHING, 3/4 x 1.62 Flange (Nylon)

$4.49

$

In Stock, Qty 8

0

7

Murray 7091298YP

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Murray 7090361YP

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

9

Murray 7058763YP

ASSEMBLY, Speed Adjustment Latch
(Superseded to 7600139YP)

Note: (Includes Ref. No. 10)

$140.99

$

Usually ships in 2-12 days

0

10

Murray 7026292YP

SPRING

Note: part of Speed Adjustment Latch Ass'y

$11.99

$

In Stock, only 3 left!

0

11

Murray 7090196YP

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Murray 7010754YP

SPRING, Shift Detent

$6.99

$

Usually ships in 2-12 days

0

13

Murray 7073289YP

LEVER, Over-Ride

$7.49

$

Usually ships in 2-12 days

0

14

Murray 7091595SM

WASHER, .47 x .92 x .065 Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

15

Murray 7015761YP

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

16

Murray 7019246YP

BUSHING, 3/4 x I.O. Flange (Nylon)

$4.49

$

Usually ships in 2-12 days

0

17

Murray 7043201YP

WELDMENT, Arm, Shift Handle (w/grease ftg. Hole)
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

18

Murray 7010817SM

LUBE FITTING, 3/16" Press-In

$4.49

$

In Stock, Qty 20+

0

19

Murray 7091315SM

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Murray 7091297SM

NUT, 5/16-24 Hex, GR 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0
