107.280340 (7800669) - Craftsman 28" Rear-Engine Riding Mower, 12.5hp (2010) Front End & Steering Group Parts Diagram

28" Rear-Engine Riding Mower, 12.5hp

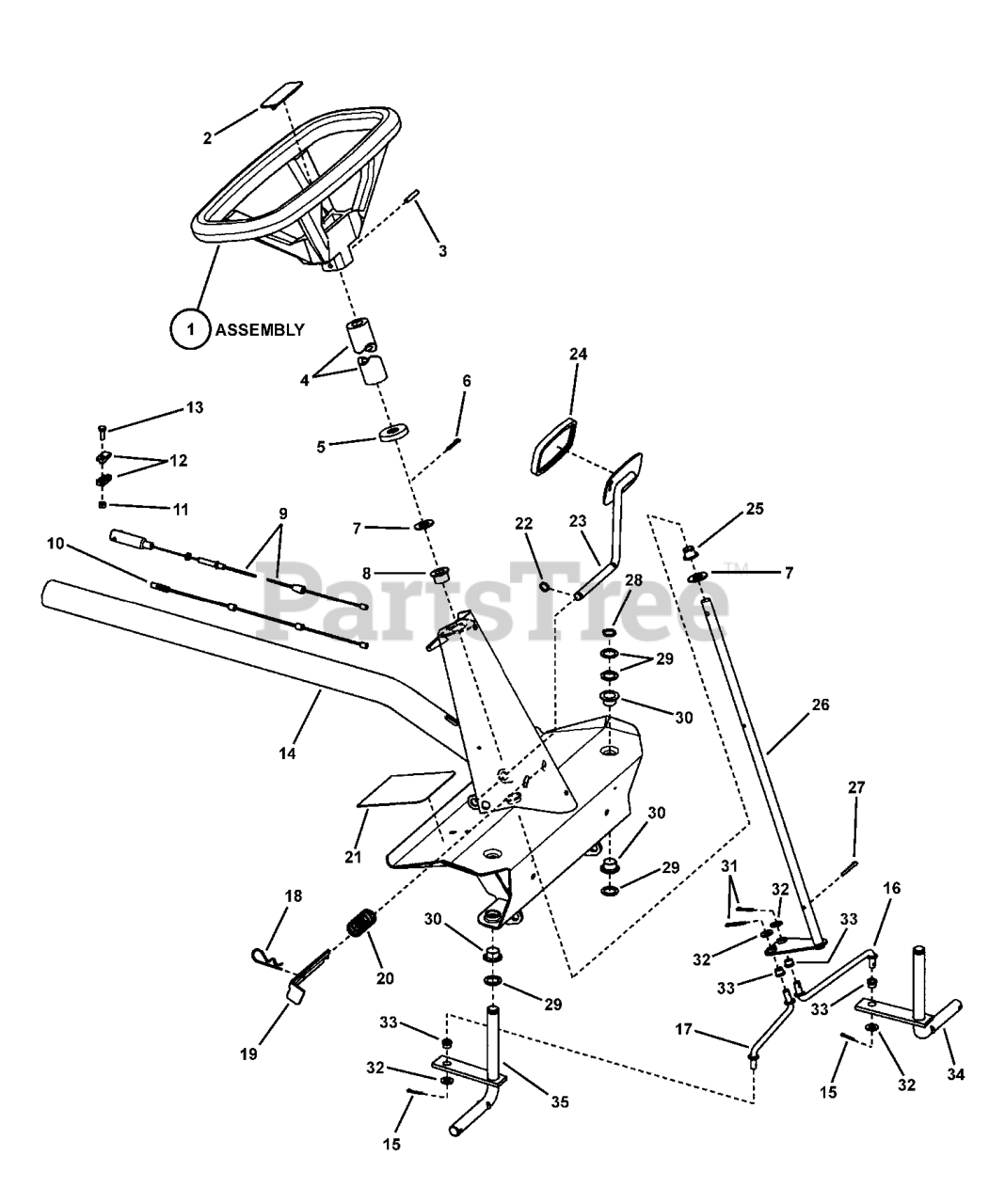

Front End & Steering Group Parts Diagram

  • Title

1

Murray 7501813YP

ASSEMBLY, Steering Wheel (for 5/8" shaft)

Note: (Includes Ref. No. 2)

$113.99

$

Usually ships in 2-12 days

0

2

Murray 7103982YP

PLATE, Center, Steering Wheel

$10.99

$

Usually ships in 2-12 days

0

3

Murray 7013862YP

ROLL PIN, 1/4 x 1-1/2"

$4.49

$

In Stock, Qty 10

0

4

Murray 7023667YP

FOAM COVER, Steering Shaft

$8.49

$

In Stock, only 3 left!

0

5

Murray 7023671YP

COVER, Steering Shaft

$4.49

$

In Stock, Qty 5

0

6

Murray 7090296YP

PIN, 3/16 x 1" Cotter

$4.49

$

In Stock, Qty 8

0

7

Murray 7090183YP

WASHER, .66 x 1.31 x .09 Flat

$4.49

$

In Stock, only 2 left!

0

8

Murray 7046158YP

BUSHING, Nylon

$4.49

$

In Stock, Qty 20+

0

9

Murray 7101192YP

CABLE, Brake, Snap-In

$27.99

$

In Stock, Qty 20+

0

10

Murray 7022449YP

CABLE, Clutch/Brake (54.32" long)

$23.99

$

In Stock, Qty 20+

0

11

Murray 7090372SM

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

12

Murray 7034174YP

CONNECTOR, Cable

$4.99

$

In Stock, only 3 left!

0

13

Murray 7091495SM

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

14

Murray 7054378YP

WELDMENT, Front Axle, Narrow

$494.99

$

Usually ships in 2-12 days

0

15

Murray 7090365YP

PIN, 1/8 x 3/4" Cotter

$3.49

$

Usually ships in 2-12 days

0

16

Murray 7013023YP

TIE ROD, Left Hand (7.41" long)

$13.99

$

In Stock, only 1 left!

0

17

Murray 7012933YP

TIE ROD, Right Hand (7.41" long)

$18.99

$

Usually ships in 2-12 days

0

18

Murray 7011714YP

HAIR PIN, 2-1/4"

$4.49

$

Usually ships in 2-12 days

0

19

Murray 7038243DYP

LATCH, Parking Brake

$18.99

$

Usually ships in 2-12 days

0

20

Murray 7015444YP

SPRING, Parking Brake Latch

$3.99

$

Usually ships in 2-12 days

0

21

Murray 7014049YP

FOOT PAD, Short (5.5" x 4.7")
(Superseded to 7105147YP)

$6.99

$

In Stock, only 4 left!

0

22

Murray 7010776YP

RING, 1/2" External Retaining (Heavy Duty)

$3.99

$

In Stock, only 2 left!

0

23

Murray 7047888BMYP

WELDMENT, Clutch Pedal

$45.99

$

Usually ships in 2-12 days

0

24

Murray 7011815YP

PAD, Pedal

$11.99

$

In Stock, only 3 left!

0

25

Murray 7010694YP

BUSHING, Nylon

$4.49

$

In Stock, only 2 left!

0

26

Murray 7046232YP

WELDMENT, Steering Shaft

$

$

Not available

27

Murray 7090753YP

PIN, 3/16 x 1-1/2" Cotter
(Superseded to 703983)

$4.49

$

In Stock, Qty 9

0

28

Murray 7010746YP

RING, 5/8" External Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 19

0

29

Murray 7010935SM

WASHER, .77 x 1.13 x .06 Flat

$3.99

$

In Stock, Qty 20+

0

30

Murray 7010986YP

BEARING, Nylon

$4.49

$

In Stock, Qty 20+

0

31

Murray 7090364YP

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0

32

Murray 7090122YP

WASHER, 3/8" Flat SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 18

0

33

Murray 7013321YP

BUSHING, Tie Rod

$4.49

$

In Stock, Qty 20+

0

34

Murray 7041687YP

WELDMENT, King Pin, Left Hand
(Superseded to 7041687BMYP)

$58.99

$

In Stock, only 2 left!

0

35

Murray 7041688YP

WELDMENT, King Pin, Right Hand

$59.99

$

Usually ships in 2-12 days

0
