107.280072 (7800690 ASN) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton (2011) Front Axle Group - RZT Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

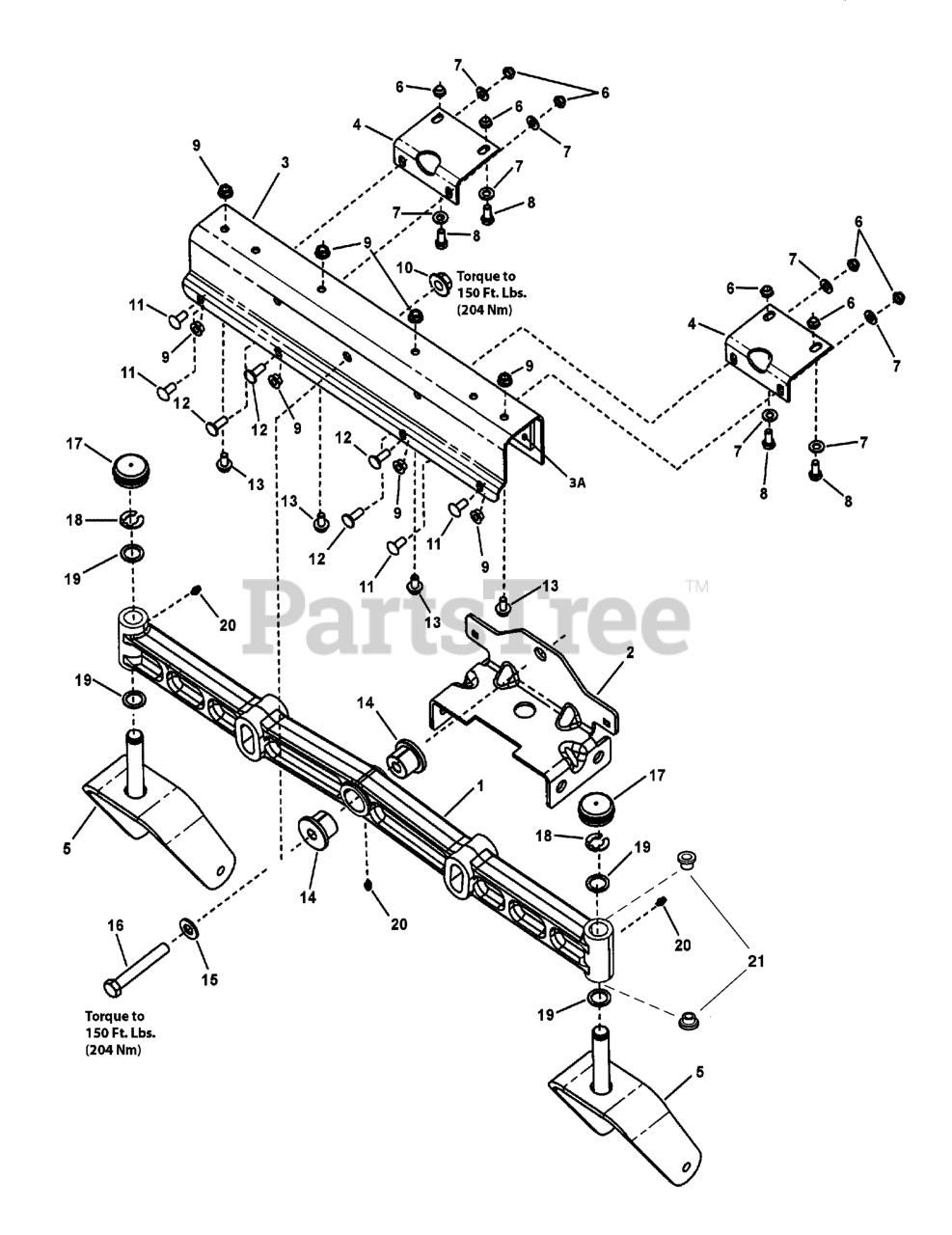

Front Axle Group - RZT Parts Diagram

  • Title

1

Murray 1733426ASM

AXLE, Casting
(Superseded to 1733426SM)

$243.99

$

Usually ships in 2-12 days

0

2

Murray 7301096BMYP

BRACKET, Hanger, Front, 46 / 52

$39.99

$

Usually ships in 2-12 days

0

3

Murray 7301076BMYP

BRACKET, Axle

$39.99

$

Usually ships in 2-12 days

0

3A

Murray 7103773YP

PLATE, Friction, Adhesive Backed

$13.99

$

Usually ships in 2-12 days

0

4

Murray 7300004BMYP

BRACKET, Axle Support

$21.99

$

In Stock, only 1 left!

0

5

Murray 1733448BMYP

CASTER YOKE & SPINDLE

$152.99

$

In Stock, only 3 left!

0

6

Murray 7091706SM

NUT, Hex Top Lock, 5/16-18, GR B

$3.99

$

Usually ships in 2-12 days

0

7

Murray 7090188SM

WASHER, Flat, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

8

Murray 7091318SM

CAPSCREW, Hex Flange, 5/16-18 x 3/4, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Murray 7091601SM

NUT, Hex Flange Lock, 5/16-18, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

11

Murray 7091508SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

12

Murray 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, GR 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

13

Murray 7091811SM

BOLT, 5/16-18 x 5/8" Hex Flange lock, GR 5, YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

14

Murray 7103454YP

BUSHING, Axle Pivot

$45.99

$

In Stock, only 2 left!

0

15

Murray 7091587SM

WASHER, Flat, 1/2
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

16

Murray 7091558SM

CAPSCREW, Hex Head, 1/2-13 x 3-1/2

$4.99

$

In Stock, only 1 left!

0

17

Murray 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 20+

0

18

Murray 1611710SM

RING, Klipring, For 3/4 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

19

Murray 1960160SM

WASHER, 0.750 ID x 1.60 OD x .05 Thick

$4.99

$

In Stock, Qty 11

0

20

Murray 7013864SM

LUBE FITTING, 3/16" Press Fit

$3.49

$

In Stock, Qty 12

0

21

Murray 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0
