107.280072 (7800690 ASN) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton (2011) Engine Group - 26HP Briggs & Stratton (7501871) Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

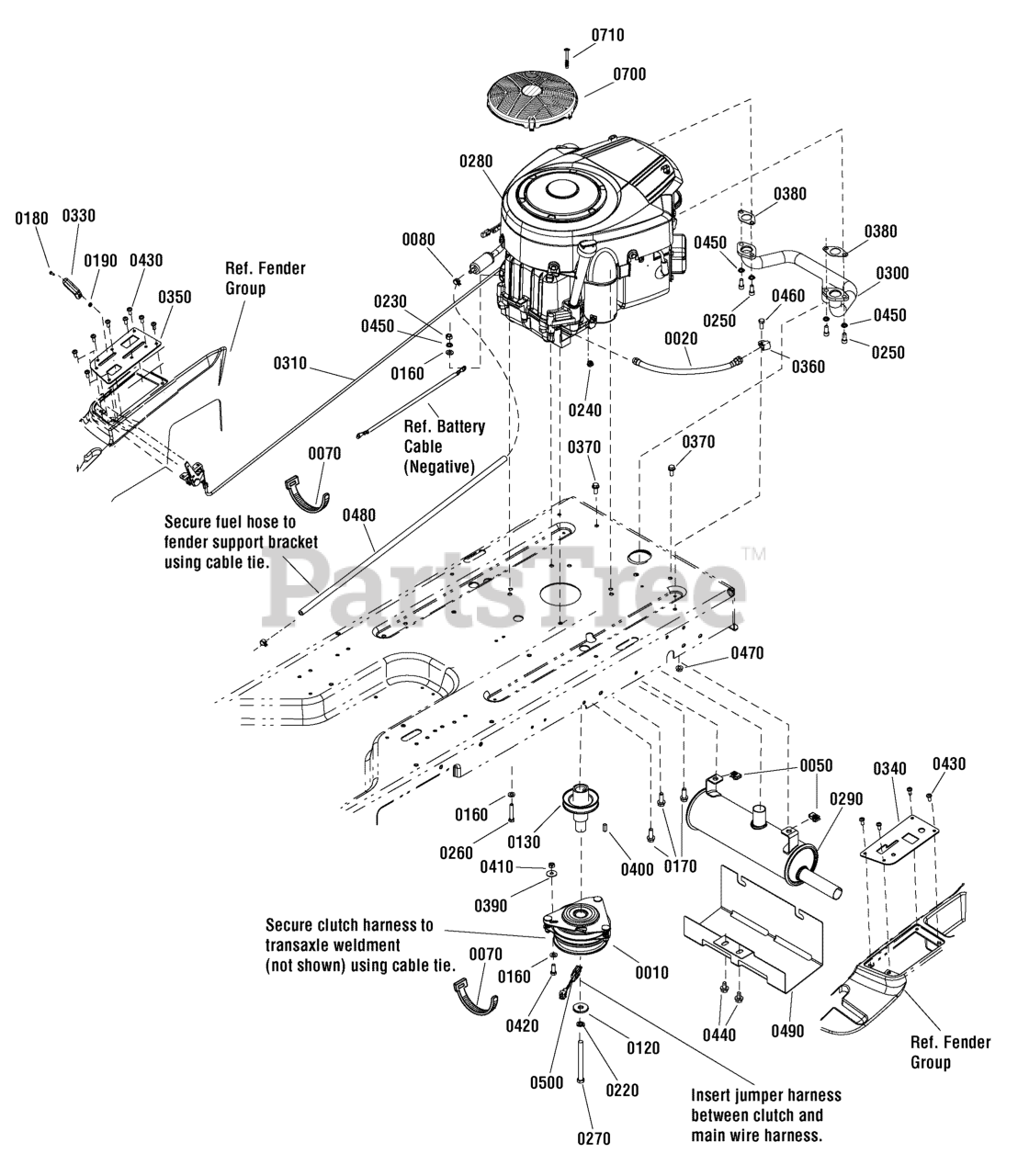

Engine Group - 26HP Briggs & Stratton (7501871) Parts Diagram

  • Title
0010

Murray 1686880SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

0020

Murray 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

0050

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0070

Murray 7012080SM

CABLE TIE, 7"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0080

Murray 7029900SM

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0120

Murray 7029138SM

WASHER, .468 ID x 1-1/2" OD x .188 Flat, YZ
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

0130

Murray 7043343SM

ASSEMBLY, Engine Pulley

$114.99

$

In Stock, only 1 left!

0

0160

Murray 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

0170

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0180

Murray 7091017YP

SCREW, #8-32 x 3/8" Cross Recess Fillister Head, GR 2

$3.99

$

In Stock, only 4 left!

0

0190

Murray 7091018YP

NUT, #8-32 Hex, GR 2B
(Superseded to 703460)

$3.99

$

In Stock, Qty 9

0

0220

Murray 7091301YP

WASHER, 7/16" Split Lock, YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0230

Murray 7091511SM

NUT, 5/16-18 Hex, GR 5 or B, YZ

$3.49

$

In Stock, Qty 20+

0

0240

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0250

Murray 7091738SM

SCREW, 5/16-18 x 3/4

$4.99

$

In Stock, Qty 14

0

0260

Murray 7091908YP

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 7092130SM

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5

$

$

Not available

0280

Murray 445877-2132-G5

ENGINE, 26HP B&S PLATINUM, V-TWIN

$

$

Currently unavailable

0290

Murray 7103411YP

MUFFLER, RZT

$231.99

$

Usually ships in 2-12 days

0

0300

Murray 7103414YP

MANIFOLD, B&S V-Twin

$96.99

$

In Stock, only 1 left!

0

0310

Murray 7103771YP

ASSEMBLY, Throttle, Choke-A-Matic, B&S V-Twin

$40.99

$

Usually ships in 2-12 days

0

0330

Murray 7103888YP

KNOB, Throttle, Red

$8.49

$

Usually ships in 2-12 days

0

0340

Murray 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0350

Murray 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0360

Murray 7900020SM

HARNESS CLIP, 5/8"

$4.49

$

Usually ships in 2-12 days

0

0370

Murray 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0380

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0390

Murray 7011763SM

FENDER WASHER, 5/16"

$4.49

$

In Stock, only 3 left!

0

0400

Murray 7016755YP

KEY, 1/4" Square x 3/4"

$4.99

$

Usually ships in 2-12 days

0

0410

Murray 7091575SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0420

Murray 7091904YP

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5, YZ
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0430

Murray 7090999SM

SCREW, Pan Head Taptite Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0440

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 7091315SM

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0460

Murray 7091318SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0470

Murray 7091601SM

NUT, 5/16-18 Hex Flange lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0480

Murray 7200140YP

HOSE, Fuel

$14.99

$

In Stock, only 1 left!

0

0490

Murray 7301083BMYP

HEAT SHIELD, Muffler

$46.99

$

Usually ships in 2-12 days

0

0500

Murray 1737462YP

HARNESS, Jumper

$9.99

$

In Stock, only 1 left!

0

0700

Murray 798767

COVER, Debris Screen

$45.99

$

In Stock, Qty 8

0

0710

$4.49

$

In Stock, only 3 left!

0
