107.280071 (7800690) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton (2011) Control Group - Left Hand Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

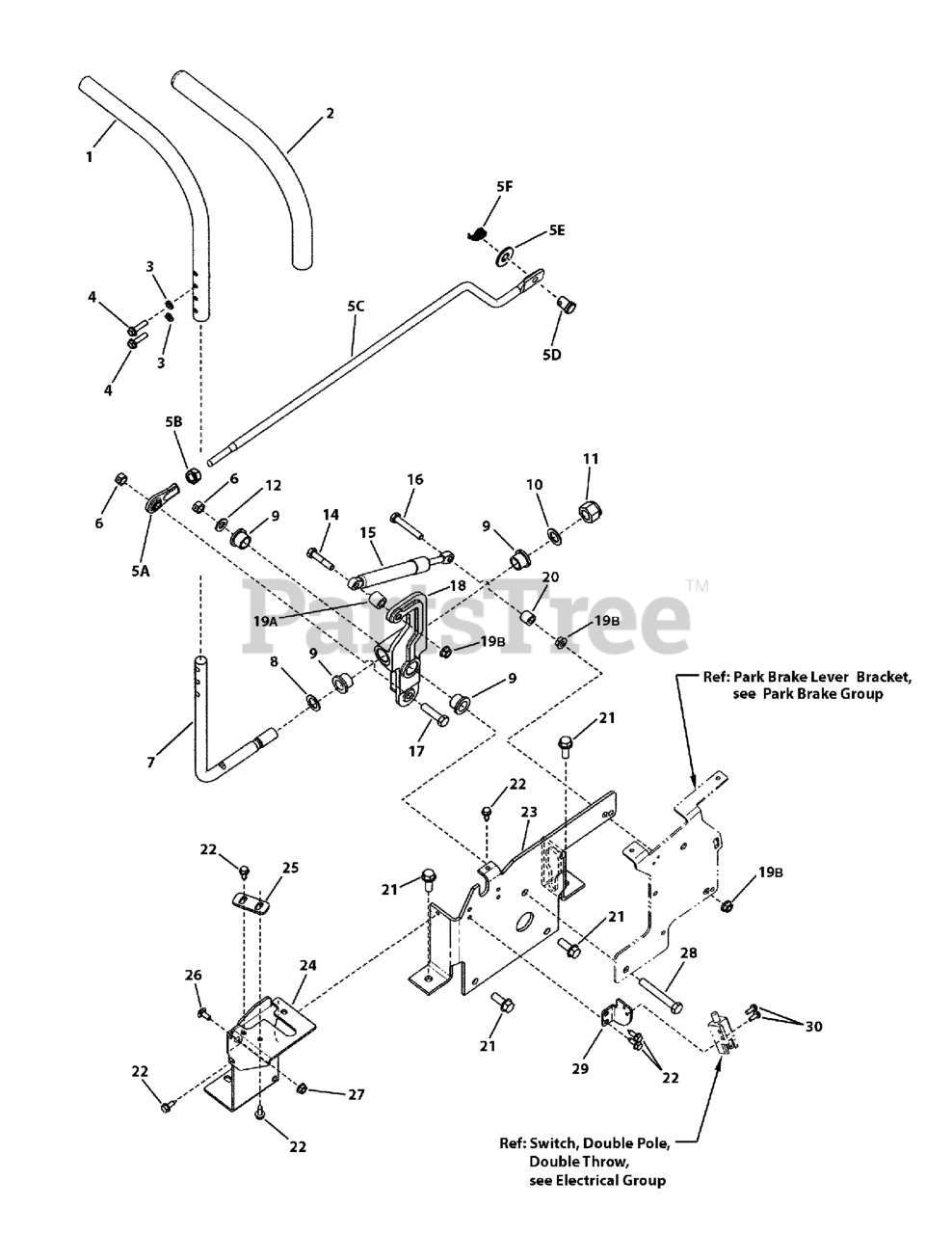

Control Group - Left Hand Parts Diagram

  • Title

1

Murray 7043338AYP

HANDLE

$45.99

$

Usually ships in 2-12 days

0

2

Murray 7104547YP

GRIP, Handle
(Superseded to 7072212YP)

$7.99

$

Usually ships in 2-12 days

0

3

Murray 1916964SM

LOCKWASHER, 1/4" Spring, YZ
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Murray 1921960SM

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5, BZ

$3.49

$

In Stock, only 1 left!

0

5A

Murray 7100743YP

ROD END, (3/8-24 thread)

$10.99

$

In Stock, only 2 left!

0

5B

Murray 7091630SM

NUT, 3/8-24 Hex, GR B, YZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

5C

Murray 7104168YP

ROD, Link Foward/Reverse (3/8-24 thread)

$30.99

$

Usually ships in 2-12 days

0

5D

Murray 7900000SM

PIN, 7/16 x 1" Clevis

$6.99

$

Usually ships in 2-12 days

0

5E

Murray 7090517SM

WASHER, 3/8" Flat

$4.49

$

In Stock, Qty 8

0

5F

Murray 7091594SM

COTTER PIN, 1/2 Self, YZ

$2.99

$

In Stock, only 2 left!

0

6

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

7

Murray 7200004SM

ROD, Handle R.H.

$54.99

$

Usually ships in 2-12 days

0

8

Murray 7091628SM

WASHER, .64 x .99 x .05 Flat, YZ

$4.49

$

In Stock, only 3 left!

0

9

Murray 7014409SM

BUSHING, 5/8 x 5/8

$6.99

$

In Stock, Qty 19

0

10

Murray 7900016SM

WASHER, 5/8 ID x 1.00 OD x .065 Nylon

$3.49

$

Usually ships in 2-12 days

0

11

Murray 7091505YP

NUT, 5/8-18 Hex Nyloc, YZ
(Superseded to 703432)

$

$

Not available

12

Murray 1670971SM

WASHER, 3/8" Flat (SAE)

$4.49

$

In Stock, Qty 7

0

14

Murray 7900003SM

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, YZ

$4.99

$

In Stock, only 4 left!

0

15

Murray 5100728SM

DAMPENER, Control
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

16

Murray 7027174SM

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

17

Murray 7091497SM

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

18

Murray 7043301SM

ARM, Die Cast Aluminum
(Superseded to 7043301BMYP)

$170.99

$

Usually ships in 2-12 days

0

19A

Murray 7200006SM

SPACER, 9/16 OD

$11.99

$

In Stock, only 2 left!

0

19B

Murray 7092126SM

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

20

Murray 7023206YP

SPACER

$8.49

$

Usually ships in 2-12 days

0

21

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

22

Murray 7090290SM

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

23

Murray 7043302BMYP

CONTROL BRACKET, LH

$33.99

$

Usually ships in 2-12 days

0

24

Murray 7301128BMYP

BRACKET, Guide, Stick, Control, LH

$27.99

$

Usually ships in 2-12 days

0

25

Murray 7300009BMYP

PLATE, Foward/Reverse Adjust

$8.49

$

Usually ships in 2-12 days

0

26

Murray 7091573YP

BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ

$4.49

$

In Stock, only 1 left!

0

27

Murray 1960294SM

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

28

Murray 7200012SM

BOLT, Shoulder, 3/8-16

$15.99

$

Usually ships in 2-12 days

0

29

Murray 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

30

Murray 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, Torx
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0
