107.280070 (7800690 SN) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton (2011) Engine Group - B&S V-Twin Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

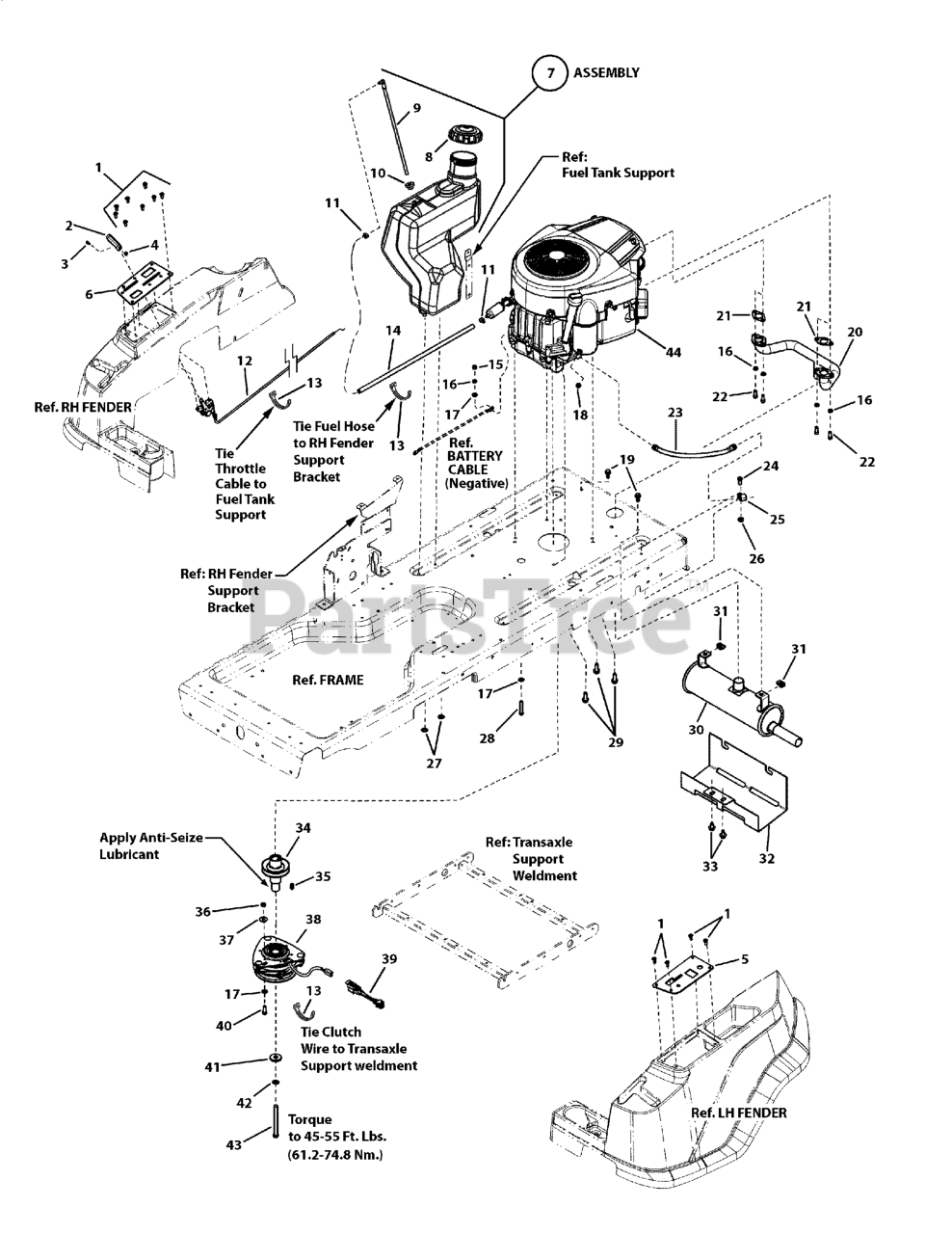

Engine Group - B&S V-Twin Parts Diagram

  • Title

1

Murray 7090999SM

SCREW, Pan Head Taptite Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

2

Murray 7103888YP

KNOB, Throttle, Red

$8.49

$

Usually ships in 2-12 days

0

3

Murray 7091017YP

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR 2

$3.99

$

In Stock, only 4 left!

0

4

Murray 7091018YP

NUT, #8-32 Hex, GR 2B
(Superseded to 703460)

$3.99

$

In Stock, Qty 9

0

5

Murray 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

6

Murray 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

7

Murray 7103815YP

ASSEMBLY, Fuel Tank, 3 Gallon
(Superseded to 1753791YP)

Note: (Incl. Ref. 8, 9 & 10)

$279.99

$

Usually ships in 2-12 days

0

8

Murray 1715917SM

CAP, Fuel Tank
(Superseded to 5101651SM)

Note: (Included with Ref. No. 7)

$30.99

$

In Stock, Qty 20+

0

9

Murray 7103536YP

ASSEMBLY, Fuel Hose
(Superseded to 1753791YP)

Note: (Included with Ref. No. 7)

$279.99

$

Usually ships in 2-12 days

0

10

Murray 1726400SM

BUSHING, Fuel
(Superseded to 1654930SM)

Note: (Included with Ref. No. 7)

$7.99

$

In Stock, Qty 20+

0

11

Murray 7029900SM

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

12

Murray 7103771YP

ASSEMBLY, Throttle, Choke-A-Matic, B&S V-Twin

$40.99

$

Usually ships in 2-12 days

0

13

Murray 7012080SM

CABLE TIE, 7"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

14

Murray 7200140YP

HOSE, Fuel

$14.99

$

In Stock, only 1 left!

0

15

Murray 7091511SM

NUT, 5/16-18 Hex, GR 5 or B, YZ

$3.49

$

In Stock, Qty 20+

0

16

Murray 7091315SM

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Murray 7090188SM

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

18

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

19

Murray 1930591SM

SCREW, 5/16-18 x 3/4" Hex Flange Lock, Black
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

20

Murray 7103414YP

MANIFOLD, B&S V-Twin

$96.99

$

In Stock, only 1 left!

0

21

Murray 1731214SM

GASKET, Exhaust B&S Reg (No Chre) 273485

$4.99

$

Usually ships in 2-12 days

0

22

Murray 7091738SM

SET SCREW, 5/16-18 x 3/4" Socket Head, GR 8 Black

$4.99

$

In Stock, Qty 14

0

23

Murray 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

24

Murray 7091318SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

25

Murray 7900020SM

HARNESS CLIP, 5/8"

$4.49

$

Usually ships in 2-12 days

0

26

Murray 7091601SM

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Murray 7013847YP

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

28

Murray 7091908YP

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

29

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

30

Murray 7103411YP

MUFFLER, RZT

$231.99

$

Usually ships in 2-12 days

0

31

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

32

Murray 7301083BMYP

HEAT SHIELD, Muffler

$46.99

$

Usually ships in 2-12 days

0

33

Murray 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

34

Murray 7043343SM

ASSEMBLY, Engine Pulley

$114.99

$

In Stock, only 1 left!

0

35

Murray 7016755YP

KEY, 1/4" Square x 3/4"

$4.99

$

Usually ships in 2-12 days

0

36

Murray 7091575SM

NUT, 5/16-18 Hex Center Lock, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

37

Murray 7011763SM

FENDER WASHER, 5/16"

$4.49

$

In Stock, only 3 left!

0

38

Murray 1717664SM

CLUTCH, Ogura JD-11
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

39

Murray 1737462YP

HARNESS, Jumper

$9.99

$

In Stock, only 1 left!

0

40

Murray 7091904YP

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5, YZ
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

41

Murray 7029138SM

WASHER, .468 ID x 1-1/2" OD x .188 Flat, YZ
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

42

Murray 7091301YP

WASHER, 7/16" Split Lock, YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

43

Murray 7092130SM

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5

$

$

Not available

44

Murray 445877-0132-B1

* ENGINE, 26 HP, B&S V-Twin

$

$

Currently unavailable
