107.280060 (7800753 SN) - Craftsman ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton (2011) Control Group - Right Hand with Electric Height of Cut Parts Diagram

ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton

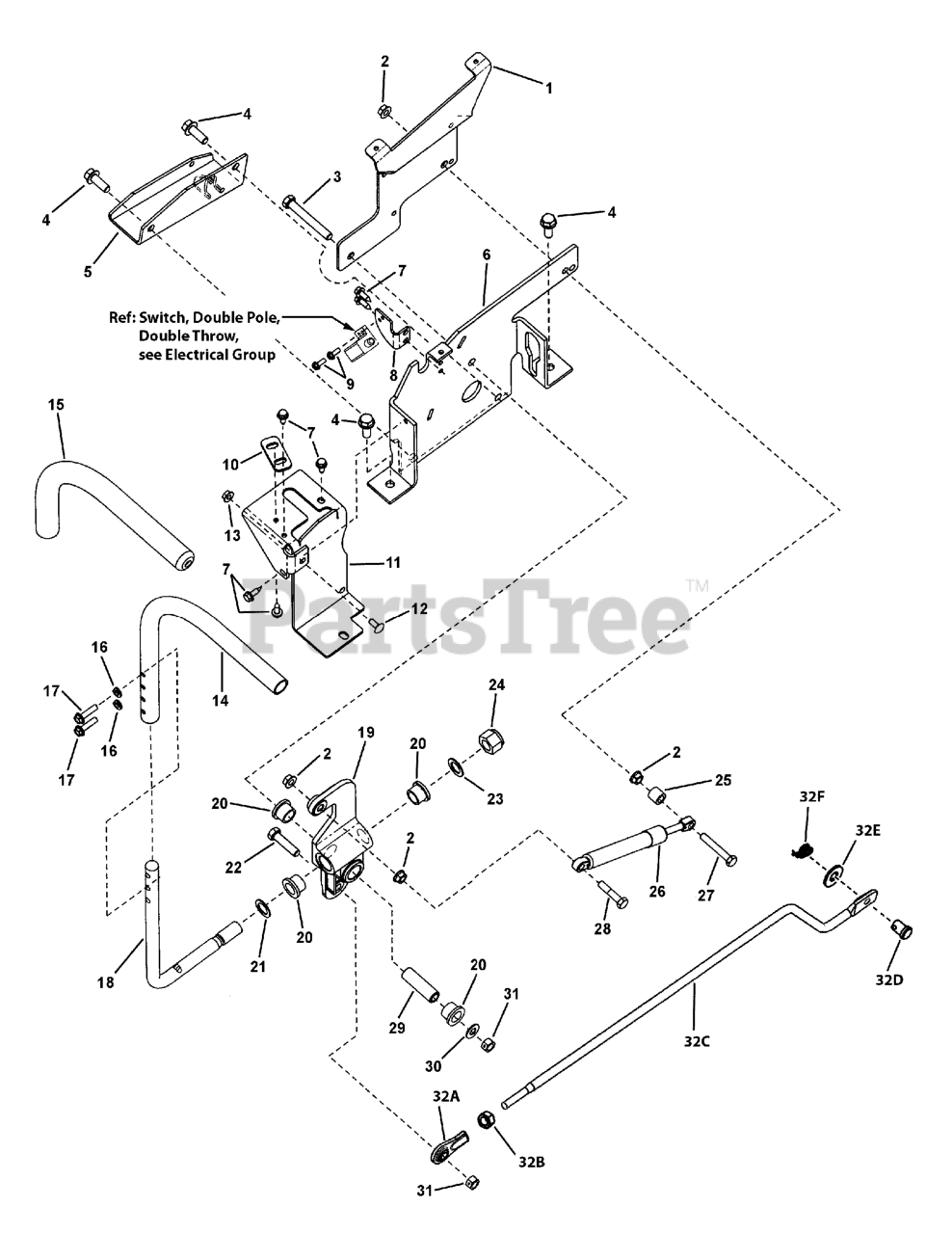

Control Group - Right Hand with Electric Height of Cut Parts Diagram

  • Title

1

Murray 7301072BMYP

BRACKET, Fender Support, RH

$23.99

$

Usually ships in 2-12 days

0

2

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Murray 7091557SM

SCREW, 3/8-16 x 2-3/4" Hex Head Cap, GR 5, YZ
(Superseded to 703133)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

5

Murray 7301103BMYP

BRACKET, Mount, Motor

$14.99

$

Usually ships in 2-12 days

0

6

Murray 7043330BMYP

CONTROL BRACKET, RH

$33.99

$

Usually ships in 2-12 days

0

7

Murray 7090290SM

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

8

Murray 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

9

Murray 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, Torx
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

10

Murray 7300009BMYP

PLATE, Foward/Reverse Adjust

$8.49

$

Usually ships in 2-12 days

0

11

Murray 7301129BMYP

BRACKET, Guide, Stick, Control, RH

$54.99

$

Usually ships in 2-12 days

0

12

Murray 7091573YP

BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ

$4.49

$

In Stock, only 1 left!

0

13

Murray 1960294SM

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

14

Murray 7043338AYP

HANDLE

$45.99

$

Usually ships in 2-12 days

0

15

Murray 7104547YP

GRIP, Handle
(Superseded to 7072212YP)

$7.99

$

Usually ships in 2-12 days

0

16

Murray 1916964SM

LOCKWASHER, 1/4" Spring, YZ
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Murray 1921960SM

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5, BZ

$3.49

$

In Stock, only 1 left!

0

18

Murray 7200004SM

ROD, Handle, R.H.

$54.99

$

Usually ships in 2-12 days

0

19

Murray 7100717YP

ARM, Control Die Cast, RH

$30.99

$

Usually ships in 2-12 days

0

20

Murray 7013874SM

BUSHING

$5.99

$

In Stock, Qty 5

0

21

Murray 7091628SM

WASHER, .64 x .99 x .05 Flat, YZ

$4.49

$

In Stock, only 3 left!

0

22

Murray 7091497SM

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

23

Murray 7900016SM

WASHER, 5/8 ID x 1.00 OD x .065 Nylon

$3.49

$

Usually ships in 2-12 days

0

24

Murray 7091505YP

NUT, 5/8-18 Hex Nyloc, YZ
(Superseded to 703432)

$

$

Not available

25

Murray 7023206YP

SPACER

$8.49

$

Usually ships in 2-12 days

0

26

Murray 5100728SM

DAMPENER, Control
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

27

Murray 7027174SM

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

28

Murray 7091540YP

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, YZ
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

29

Murray 7100714YP

SPACER, Sleeve, RZT

$16.99

$

Usually ships in 2-12 days

0

30

Murray 7090122YP

WASHER, 3/8" Flat (SAE)
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

31

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

32A

Murray 7100743YP

ROD END, (3/8-24 thread)

$10.99

$

In Stock, only 2 left!

0

32B

Murray 7091630SM

NUT, 3/8-24 Hex, GR B, YZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

32C

Murray 7104168YP

ROD, Link Foward/Reverse (3/8-24 thread)

$30.99

$

Usually ships in 2-12 days

0

32D

Murray 7900000SM

PIN, 7/16 x 1" Clevis

$6.99

$

Usually ships in 2-12 days

0

32E

Murray 7090517SM

WASHER, 3/8" Flat

$4.49

$

In Stock, Qty 8

0

32F

Murray 7091594SM

COTTER PIN, 1/2 Self, YZ

$2.99

$

In Stock, only 2 left!

0
