107.277880 (2690640) - Craftsman ZTS7500 Series 44" Zero-Turn Mower, 20hp Kohler (2007) Engine Group - 20HP Kohler Parts Diagram

ZTS7500 Series 44" Zero-Turn Mower, 20hp Kohler

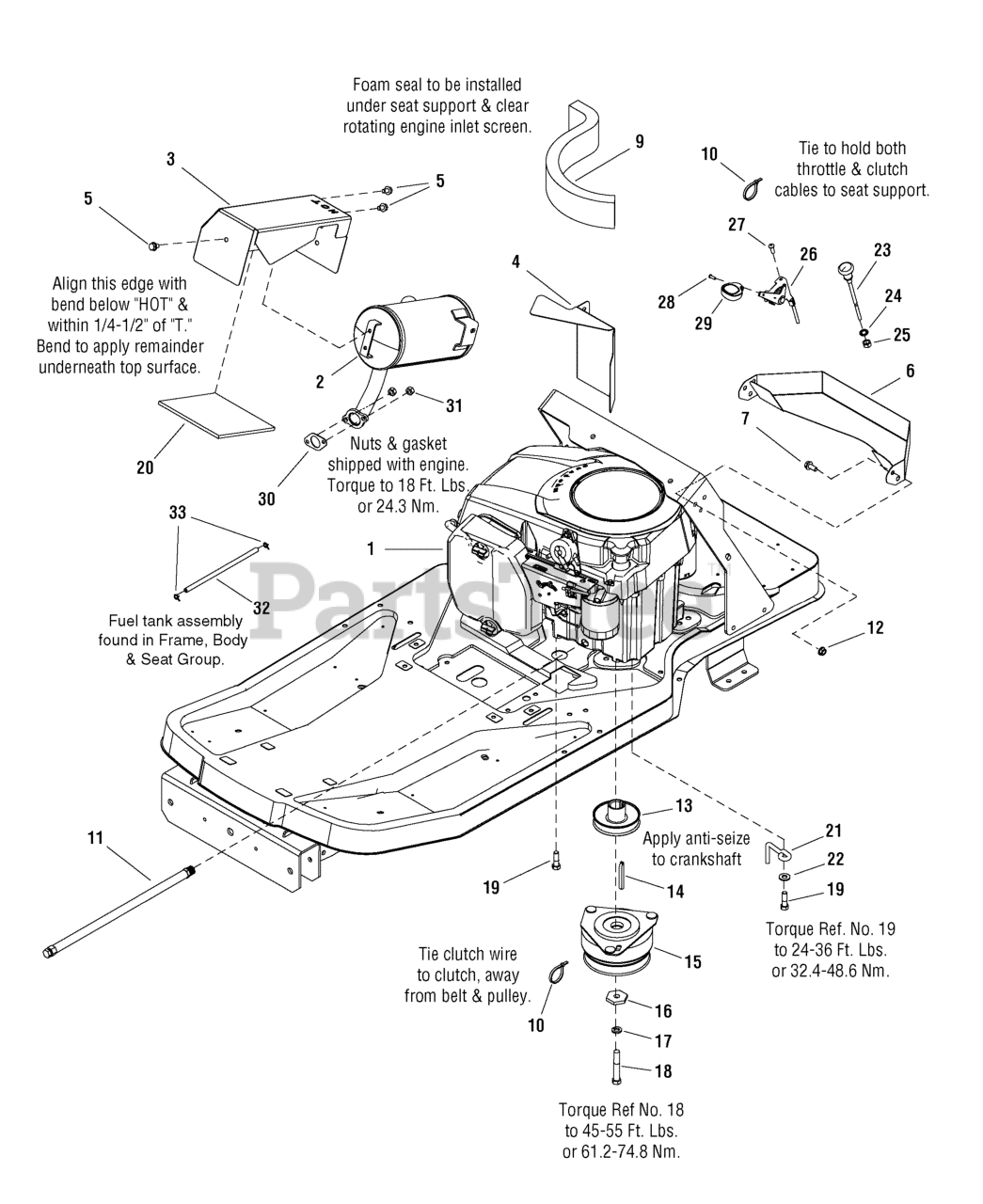

Engine Group - 20HP Kohler Parts Diagram

  • Title

1

ENGINE, 20HP Kohler Courage

Note: (Model - SV600S, Type - 0010)

$

$

Not available

2

Murray 1727809SM

MUFFLER, Kohler 20HP Courage ZT 7000

$295.99

$

Usually ships in 2-12 days

0

3

Murray 1728982SM

SHIELD, Muffler Top Kohler ZT 20/44
(Superseded to 1728050SM)

$70.99

$

Usually ships in 2-12 days

0

4

Murray 1734149ASM

SHIELD, Heat Inner Kohler

$27.99

$

Usually ships in 2-12 days

0

5

Murray 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

6

Murray 1727945ASM

DUCT, Air Inlet Kohler ZT

$43.99

$

Usually ships in 2-12 days

0

7

Murray 1930591SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

9

Murray 1727928SM

SEAL, Foam, 1 x 2-1/2, 12" LG Curved

$19.99

$

Usually ships in 2-12 days

0

10

Murray 2832747SM

TIE, Self-Locking, .09 WD x 3.62 LG

$3.99

$

Usually ships in 2-12 days

0

11

Murray 1726498SM

HOSE, Oil Drain, 3/8 ID 16-1/2 LG

$26.99

$

Usually ships in 2-12 days

0

12

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Murray 1727816SM

PULLEY, 3.74 OD x 1.003 ID x 1.88 LG

$

$

Not available

14

Murray 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

15

Murray 1717664SM

CLUTCH, #504586, Electric, Ogura JD-11
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

16

Murray 1708264SM

WASHER, Hex, .453 ID x 1-1/2 A/F 1/4 TH

$8.99

$

In Stock, Qty 5

0

17

Murray 1918199SM

LOCKWASHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1960648SM

CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5

$6.49

$

Usually ships in 2-12 days

0

19

Murray 2828635SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

20

Murray 1728110SM

INSULATION, Ceramic Fibers

$21.99

$

Usually ships in 2-12 days

0

21

Murray 1734049SM

RETAINER, Clutch

$12.99

$

In Stock, only 2 left!

0

22

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Murray 7100416SM

CHOKE, Cable

$42.99

$

Usually ships in 2-12 days

0

24

Murray 7090390SM

WASHER, Lock Internal Tooth, 3/8
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

25

Murray 7091630SM

NUT, Hex Head, 3/8
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

26

Murray 7075449SM

CONTROL, Throttle

$37.99

$

Usually ships in 2-12 days

0

27

Murray 7090999SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

28

Murray 7091195SM

SCREW, Pan Head Combo Taptite, #10-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

29

Murray 7100529SM

KNOB, Plastic
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

30

GASKET, Muffler

$

$

Not available

31

NUT, Muffler

$

$

Not available

32

Murray 1726594SM

HOSE, Fuel, 11.5"

Note: (See Frame, Body & Seat Group for fuel tank assembly.)

$4.99

$

Usually ships in 2-12 days

0

33

Murray 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0
