107.277860 (2690639) - Craftsman ZTS7500 Series 42" Zero-Turn Mower, 20hp Briggs & Stratton (2007) 42" Mower Deck - Housing & Arbor Group Parts Diagram

ZTS7500 Series 42" Zero-Turn Mower, 20hp Briggs & Stratton

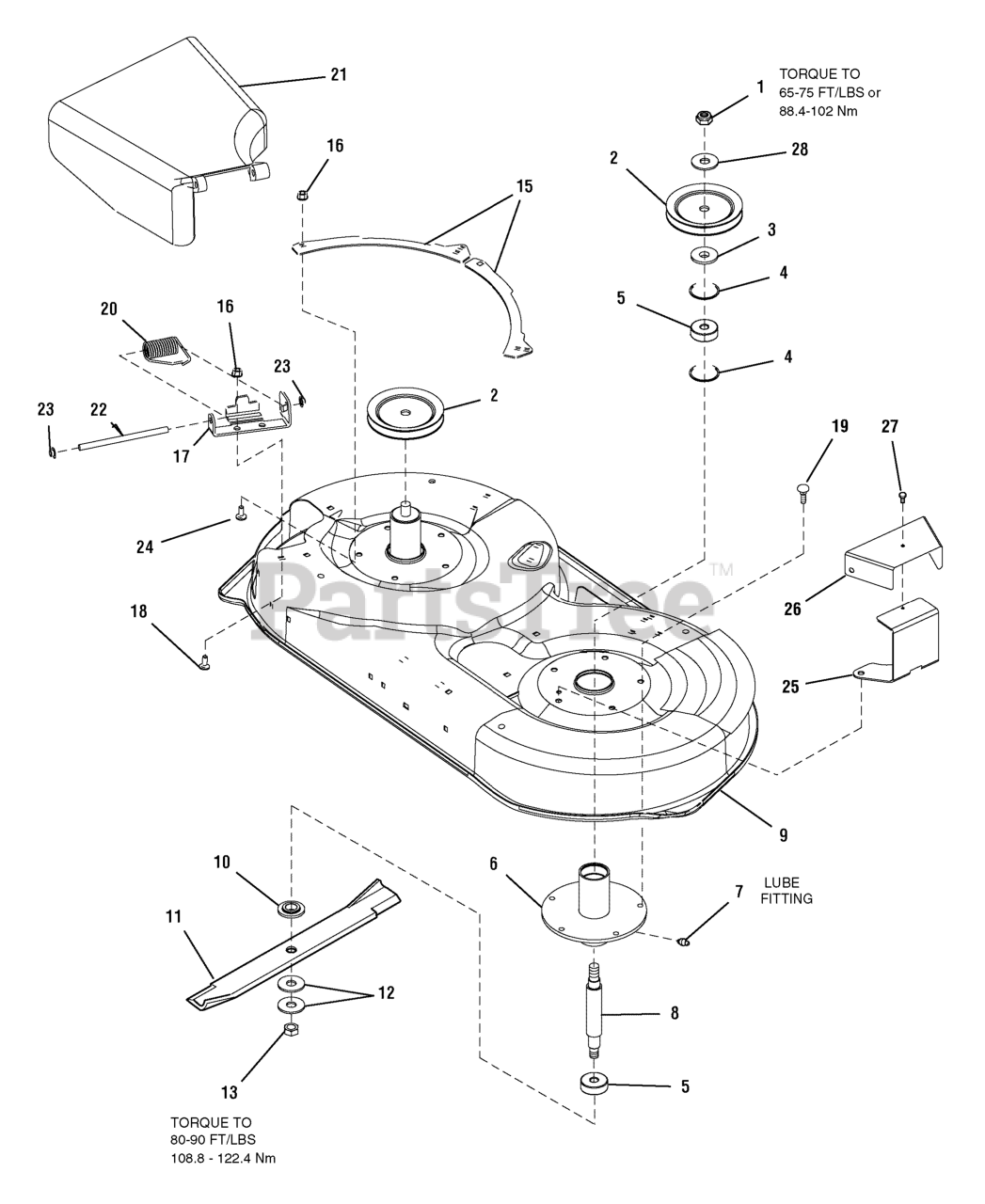

42" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Murray 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

2

Murray 1732354SM

PULLEY, Drive, 5-1/2

$30.99

$

In Stock, only 1 left!

0

3

Murray 7072440SM

SPACER, Pulley

$9.49

$

In Stock, Qty 19

0

4

Murray 7012491SM

RING, Retaining, 1-3/4

$4.49

$

In Stock, Qty 20+

0

5

Murray 2108202SM

BEARING, Spindle

$11.99

$

In Stock, Qty 20+

0

6

Murray 1731372ASM

TUBE & PLATE ASSEMBLY, Spindle
(Superseded to 1731372BMYP)

$98.99

$

In Stock, Qty 11

0

7

Murray 1704314SM

LUBE, Fitting, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

8

Murray 7072537SM

SHAFT, Spindle

$43.99

$

In Stock, Qty 20+

0

9

Murray 1730100ZSM

HOUSING, 42"
(Superseded to 1687791YP)

$

$

Not available

10

Murray 1731917SM

WASHER, Spindle Blade, Powdered Metal

$9.49

$

In Stock, Qty 20+

0

11

Murray 1731898ASM

BLADE, Mower 42"
(Superseded to 1731898BZYP)

$20.99

$

In Stock, Qty 7

0

12

Murray 7024467SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091633SM

NUT, Hex, 9/16

$4.99

$

In Stock, Qty 20+

0

15

Murray 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

16

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

17

Murray 094956E701MA

BRACKET, Hinge

$22.99

$

Usually ships in 2-12 days

0

18

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

19

Murray 1923683SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

20

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

21

Murray 094707MA

DEFLECTOR ASSEMBLY

$108.99

$

In Stock, only 3 left!

0

22

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

23

Murray 1960093SM

NUT, Pushpal
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

24

Murray 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 7

0

25

Murray 1732282ASM

BRACKET, Pulley Cover
(Superseded to 1732282BMYP)

$67.99

$

Usually ships in 2-12 days

0

26

Murray 1732832ASM

COVER, Pulley

$62.99

$

Usually ships in 2-12 days

0

27

Murray 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

28

Murray 7016440SM

WASHER, Belleville

$7.99

$

In Stock, Qty 20+

0
