107.277740 (2690429) - Craftsman ZT7000 Series 50" Zero-Turn Mower, 22hp Briggs & Stratton (2005) Engine Group - 22HP Briggs & Stratton Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, 22hp Briggs & Stratton

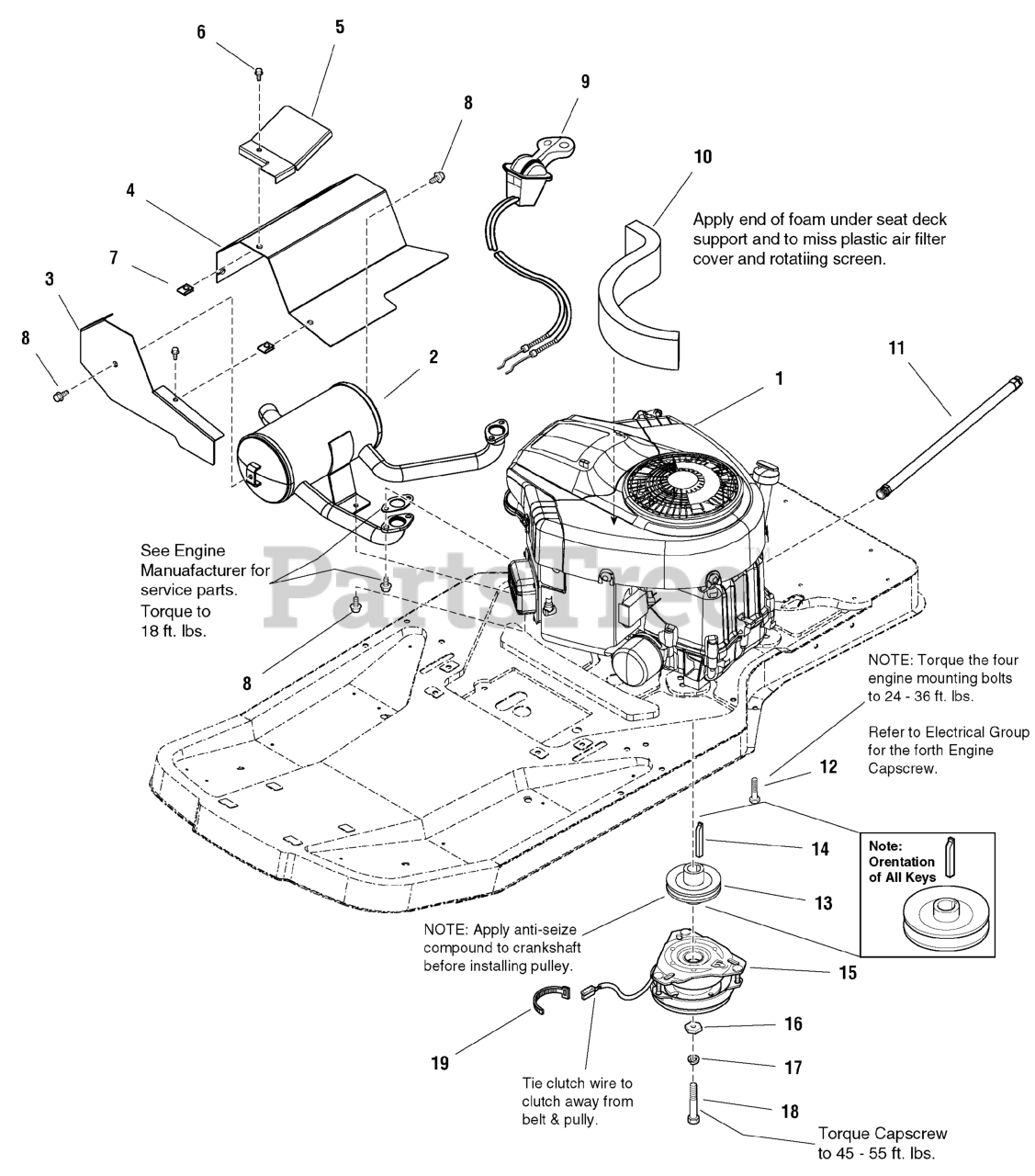

Engine Group - 22HP Briggs & Stratton Parts Diagram

  • Title
1

ENGINE, 22HP, Briggs & Stratton

Note: (Refer to Note: *)

$

$

Not available

2

Murray 1727805SM

MUFFLER
(Superseded to 1734061SM)

$384.99

$

In Stock, only 1 left!

0

3

Murray 1727939ASM

SHIELD, Heat, Muffler Side

$29.99

$

Usually ships in 2-12 days

0

4

Murray 1727938ASM

SHIELD, Heat, Muffler Top

$58.99

$

Usually ships in 2-12 days

0

5

Murray 1728017ASM

SHIELD, Heat, Throttle
(Superseded to 1728017SM)

$7.99

$

Usually ships in 2-12 days

0

6

Murray 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

7

Murray 1960368SM

NUT, Speed Lug Type, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

8

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

9

Murray 1727818SM

CONTROL, Throttle

$106.99

$

Usually ships in 2-12 days

0

10

Murray 1727928SM

SEAL, Foam, 1 x 2-1/2, 12" LG Curved

$19.99

$

Usually ships in 2-12 days

0

11

Murray 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

12

Murray 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2 (For 1692768)

$4.99

$

Usually ships in 2-12 days

0

13

Murray 1727816SM

PULLEY, 3.74 OD x 1.003 ID x 1.88 LG

$

$

Not available

14

Murray 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

15

Murray 1686880SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

16

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

17

Murray 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1960648SM

CAPSCREW, Hex Head Cap, 7/16-20 x 2-3/4, GR5, Black

$6.49

$

Usually ships in 2-12 days

0

19

Murray 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0
