107.277720 (2690428) - Craftsman ZT7000 Series 44" Zero-Turn Mower, 20hp Kohler (2005) Engine Group - 20HP Kohler Parts Diagram

ZT7000 Series 44" Zero-Turn Mower, 20hp Kohler

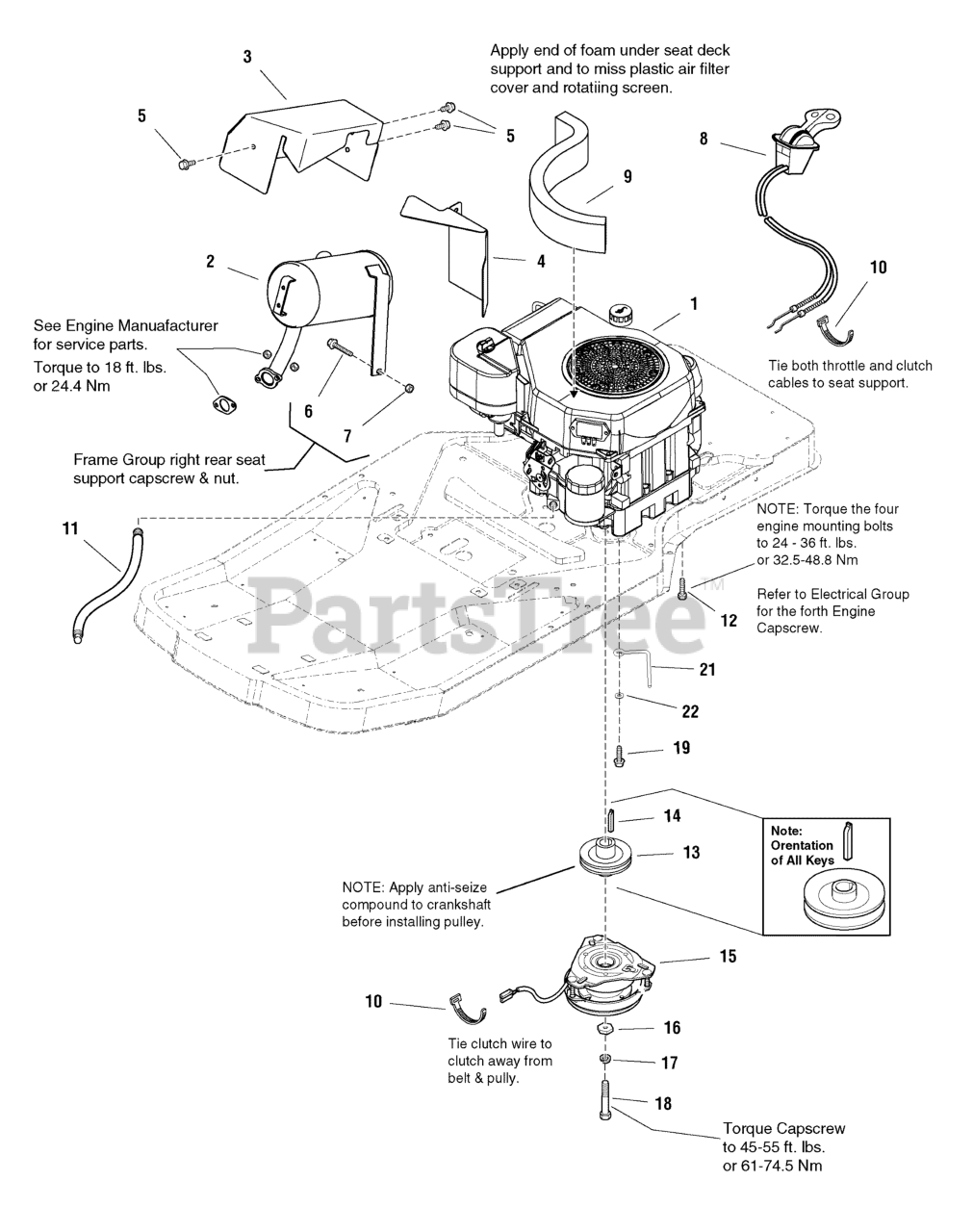

Engine Group - 20HP Kohler Parts Diagram

  • Title

1

ENGINE, 20HP, KOHLER Courage

Note: (Refer to Note: *)

$

$

Not available

2

Murray 1727809SM

MUFFLER, Kohler 20HP Courage ZT 7000

$295.99

$

Usually ships in 2-12 days

0

3

Murray 1728982SM

SHIELD & INSULATION ASSEMBLY, Muffler, Heat Top
(Superseded to 1728050SM)

$70.99

$

Usually ships in 2-12 days

0

4

Murray 1727937ASM

SHIELD, Muffler, Heat Side

$31.99

$

Usually ships in 2-12 days

0

5

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

6

Murray 1930595SM

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

7

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Murray 1727817SM

CONTROL, Throttle Double 42" Long

$115.99

$

Usually ships in 2-12 days

0

9

Murray 1727928SM

SEAL, Foam, 1 x 2-1/2, 12" LG Curved

$19.99

$

Usually ships in 2-12 days

0

10

Murray 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

11

Murray 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

12

Murray 2860361SM

SCREW, Hex Washer Head, Taptite 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

13

Murray 1727816SM

PULLEY, 3.74 OD x 1.003 ID x 1.88 LG

$

$

Not available

14

Murray 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

15

Murray 1686880SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

16

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

17

Murray 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1960648SM

CAPSCREW, Hex Head Cap, 7/16-20 x 2-3/4, GR5, Black

$6.49

$

Usually ships in 2-12 days

0

19

Murray 1923683SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

21

Murray 1734049SM

RETAINER, Clutch

$12.99

$

In Stock, only 2 left!

0

22

Murray 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
