107.277720 (2690428) - Craftsman ZT7000 Series 44" Zero-Turn Mower, 20hp Kohler (2005) Carrier & Transmission Group Parts Diagram

ZT7000 Series 44" Zero-Turn Mower, 20hp Kohler

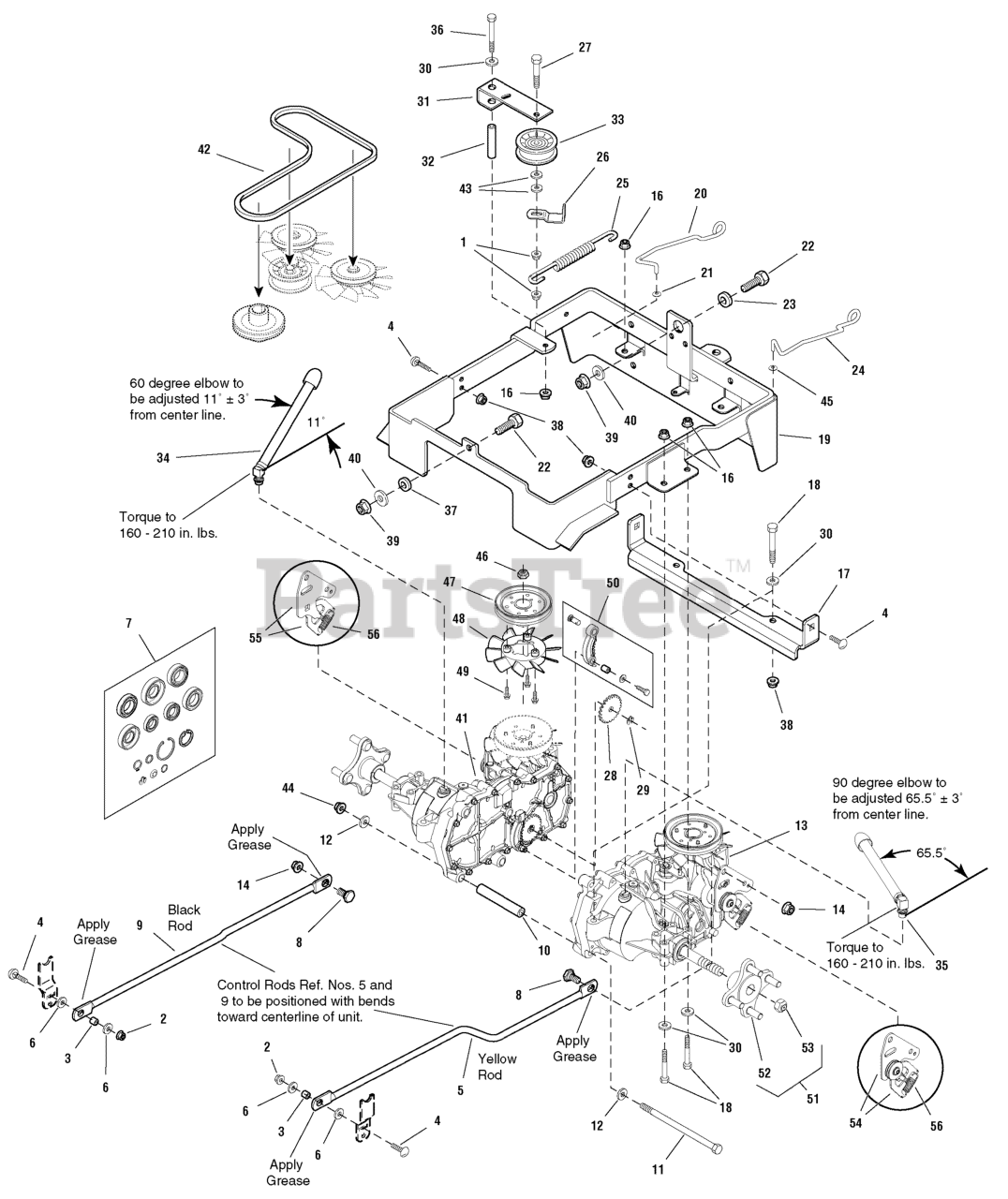

Carrier & Transmission Group Parts Diagram

  • Title

1

Murray 1960687SM

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

2

Murray 1960684SM

NUT, Hex Keps, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

3

Murray 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

4

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

5

Murray 1727555SM

ROD, Control, L.H.

$37.99

$

Usually ships in 2-12 days

0

6

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 1728060SM

HYDRO SEAL KIT

$140.99

$

Usually ships in 2-12 days

0

8

Murray 1727831SM

BOLT, Shoulder, 7/16-14, G5

$8.49

$

Usually ships in 2-12 days

0

9

Murray 1727556SM

ROD, Control, R.H.

$23.99

$

Usually ships in 2-12 days

0

10

Murray 1727795ASM

SPACER

$13.99

$

Usually ships in 2-12 days

0

11

Murray 2860398SM

CAPSCREW, Hex Head, 7/16-14 x 8, G5

$8.99

$

Usually ships in 2-12 days

0

12

Murray 1918267SM

WASHER, 7/16

$3.99

$

In Stock, only 1 left!

0

13

Murray 1727806SM

TRANSMISSION, Hydro Gear, L.H.
(Superseded to 7104656YP)

$1171.99

$

Usually ships in 2-12 days

0

14

Murray 1930650SM

NUT, Hex Flange, 7/16-14, Two-Way Lock

$5.49

$

In Stock, only 4 left!

0

16

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

17

Murray 1727464ASM

SUPPORT, Center Transmission

$43.99

$

Usually ships in 2-12 days

0

18

Murray 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

19

Murray 1732595ASM

FRAME ASSEMBLY, Carrier Transmission

$341.99

$

Usually ships in 2-12 days

0

20

Murray 1727767SM

ROD, Actuator, R.H. E-Coat

$24.99

$

Usually ships in 2-12 days

0

21

Murray 1725550SM

CLIP, Rod End Clevis L.H.

$5.99

$

Usually ships in 2-12 days

0

22

Murray 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4, G5

$4.99

$

In Stock, only 1 left!

0

23

Murray 1719725SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

24

Murray 1727766SM

ROD, Actuator, L.H.

$

$

Not available

25

Murray 1730177SM

SPRING, Extension
(Superseded to 1687303SM)

$51.99

$

In Stock, only 1 left!

0

26

Murray 1677135ASM

GUARD, Belt

$12.99

$

In Stock, Qty 8

0

27

Murray 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, G5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

28

Murray 1728076SM

GEAR, Parking Brake, Transmission

$37.99

$

Usually ships in 2-12 days

0

29

Murray 1716622SM

CLIP, E Transmission Parking Brake

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

31

Murray 1715971ASM

ARM, Idler

$13.99

$

Usually ships in 2-12 days

0

32

Murray 1713588SM

SPACER, Powdered Metal

$8.49

$

Usually ships in 2-12 days

0

33

Murray 1721133SM

PULLEY, Idler

$29.99

$

In Stock, Qty 20+

0

34

Murray 1731909SM

KIT, Breather 60 Degree Elbow

$139.99

$

Usually ships in 2-12 days

0

35

Murray 1731908SM

KIT, Breather 90 Degree Elbow

$125.99

$

Usually ships in 2-12 days

0

36

Murray 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, G5
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

37

Murray 1719683SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

38

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 3/8-16
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

40

Murray 1924361SM

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

41

Murray 1727807SM

TRANSMISSION, Hydro Gear, R.H.
(Superseded to 7104657YP)

$1173.99

$

Usually ships in 2-12 days

0

42

Murray 1732224SM

V-BELT

$

$

Not available

43

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

44

Murray 1960734SM

NUT, Hex Centerlock Jam, 7/16-14

$2.49

$

Usually ships in 2-12 days

0

45

Murray 1717024SM

CLIP, Rod End Clevis R.H.

$7.49

$

In Stock, only 2 left!

0

46

Murray 1930633SM

NUT, Hex Head Center Lock

$3.99

$

Usually ships in 2-12 days

0

47

Murray 1728073SM

PULLEY, 4.5", Transmission

$

$

Not available

48

Murray 1728074SM

FAN, 6", Transmission

$43.99

$

Usually ships in 2-12 days

0

49

Murray 1925592SM

CAPSCREW, Hex Head, Transmission
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

50

Murray 1728075SM

PARKING BRAKE ARM ASSEMBLY, Transmission L.H. or R.H.

$50.99

$

In Stock, only 1 left!

0

51

Murray 1687283SM

HUB REPLACEMENT KIT

$100.99

$

Usually ships in 2-12 days

0

52

Murray 1733870SM

HUB, EZT Transmissions
(Superseded to 1687283SM)

$100.99

$

Usually ships in 2-12 days

0

53

Murray 1733871SM

NUT, EZT Transmissions

$

$

Not available

54

Murray 1735490SM

ARM, Control Kit L.H.

$108.99

$

Usually ships in 2-12 days

0

55

Murray 1735491SM

ARM, Control Kit R.H.

$92.99

$

Usually ships in 2-12 days

0

56

Murray 1735483SM

SPRING, Extension

$16.99

$

In Stock, Qty 6

0
