107.277720 (2690428) - Craftsman ZT7000 Series 44" Zero-Turn Mower, 20hp Kohler (2005) 44" & 50" Mower Deck - Height Adjustment Group Parts Diagram

ZT7000 Series 44" Zero-Turn Mower, 20hp Kohler

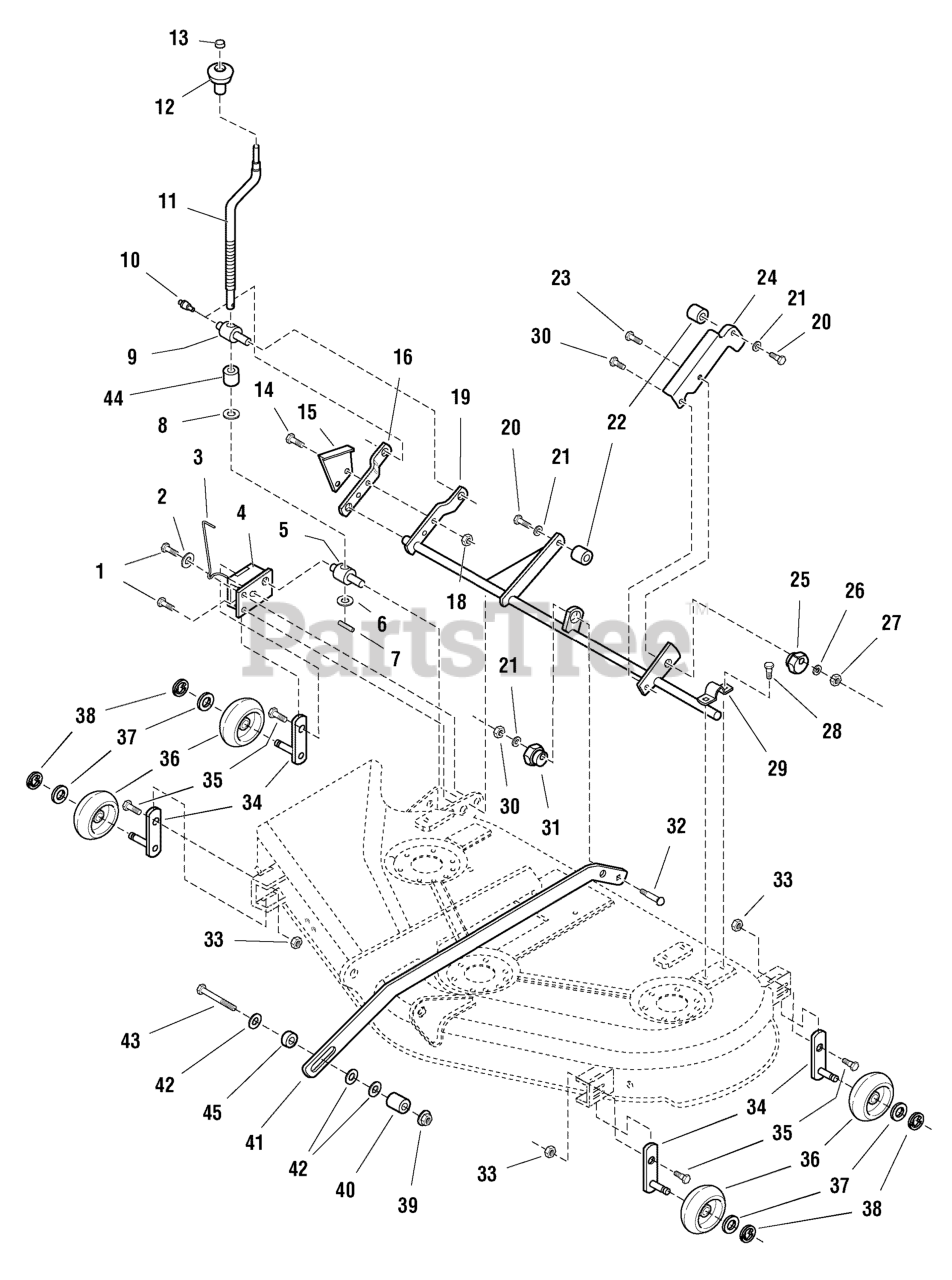

44" & 50" Mower Deck - Height Adjustment Group Parts Diagram

  • Title

1

Murray 1931202SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 5

0

2

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

3

Murray 1704114SM

ROD, Indicator Height of Cut

$16.99

$

In Stock, Qty 9

0

4

Murray 1726424ASM

PLATE & BRACKET ASSEMBLY, Gauge Wheel

$29.99

$

Usually ships in 2-12 days

0

5

Murray 1724009SM

TRUNNION, 1-1/4

$

$

Not available

6

Murray 1704097SM

WASHER, Detent

$4.49

$

In Stock, Qty 11

0

7

Murray 2816001SM

PIN, Spring

$4.49

$

In Stock, Qty 11

0

8

Murray 1960170SM

WASHER, 9/16
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

9

Murray 1715892SM

TRUNNION, 1-1/4

$39.99

$

In Stock, only 2 left!

0

10

Murray 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Murray 1727681SM

CRANK, Height Adjustment

$140.99

$

In Stock, only 1 left!

0

12

Murray 1714084SM

KNOB, Spinner, Soft

$12.99

$

In Stock, only 1 left!

0

13

Murray 1960093SM

NUT, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

14

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

15

Murray 1704116ASM

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

16

Murray 1726409ASM

ARM, Rear

$7.49

$

Usually ships in 2-12 days

0

18

Murray 1931277SM

NUT, Hex Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Murray 1727906ASM

ARM ASSEMBLY, Roller Bar 50"

$116.99

$

Usually ships in 2-12 days

0

19

Murray 1727768ASM

ARM ASSEMBLY, Roller Bar 44"

$102.99

$

Usually ships in 2-12 days

0

20

Murray 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1, G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

21

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

22

Murray 1716010SM

SPACER, Support

$23.99

$

Usually ships in 2-12 days

0

23

Murray 1960655SM

CARRIAGE BOLT, 5/16-18 x 1-1/4, G5
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

24

Murray 1718136ASM

ARM, Rear Adjustable

$20.99

$

Usually ships in 2-12 days

0

25

Murray 1714879SM

CAM, Eccentric, Hex

$7.99

$

Usually ships in 2-12 days

0

26

Murray 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

27

Murray 2860643SM

NUT, Hex Flange Collar Lock , 5/16-18

$3.49

$

In Stock, only 4 left!

0

28

Murray 1664847SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

29

Murray 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

30

Murray 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

31

Murray 1704082SM

NUT, Hex Adjusting, 11/16

$5.49

$

In Stock, Qty 15

0

32

Murray 2118053SM

PIN, Round Head, Drilled, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

33

Murray 1930642SM

NUT, Hex Flange Toplock 1/4-20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

34

Murray 1716020ASM

SHAFT & BAR ASSEMBLY, Roller Fixed Arm

$32.99

$

Usually ships in 2-12 days

0

35

Murray 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

36

Murray 1714760SM

WHEEL, Roller

$6.49

$

In Stock, Qty 20+

0

37

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

38

Murray 2158399SM

E-RING, Retaining Extension
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

39

Murray 1930645SM

NUT, Hex Two-Way Lock Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Murray 1674440SM

SPACER

$18.99

$

In Stock, only 1 left!

0

41

Murray 1728109ASM

ARM, Pitch 44"

$26.99

$

Usually ships in 2-12 days

0

41

Murray 1727917ASM

ARM, Pitch 50"

$12.99

$

Usually ships in 2-12 days

0

42

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

43

Murray 1923701SM

CAPSCREW, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

44

Murray 1709195SM

SPACER, .66 X 7/8 X 1 1/4

$5.99

$

In Stock, Qty 20+

0

45

Murray 1611705SM

SPACER

$4.49

$

In Stock, Qty 19

0
