107.277700 (2277700) - Craftsman ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp (2004) Transmission Group Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp

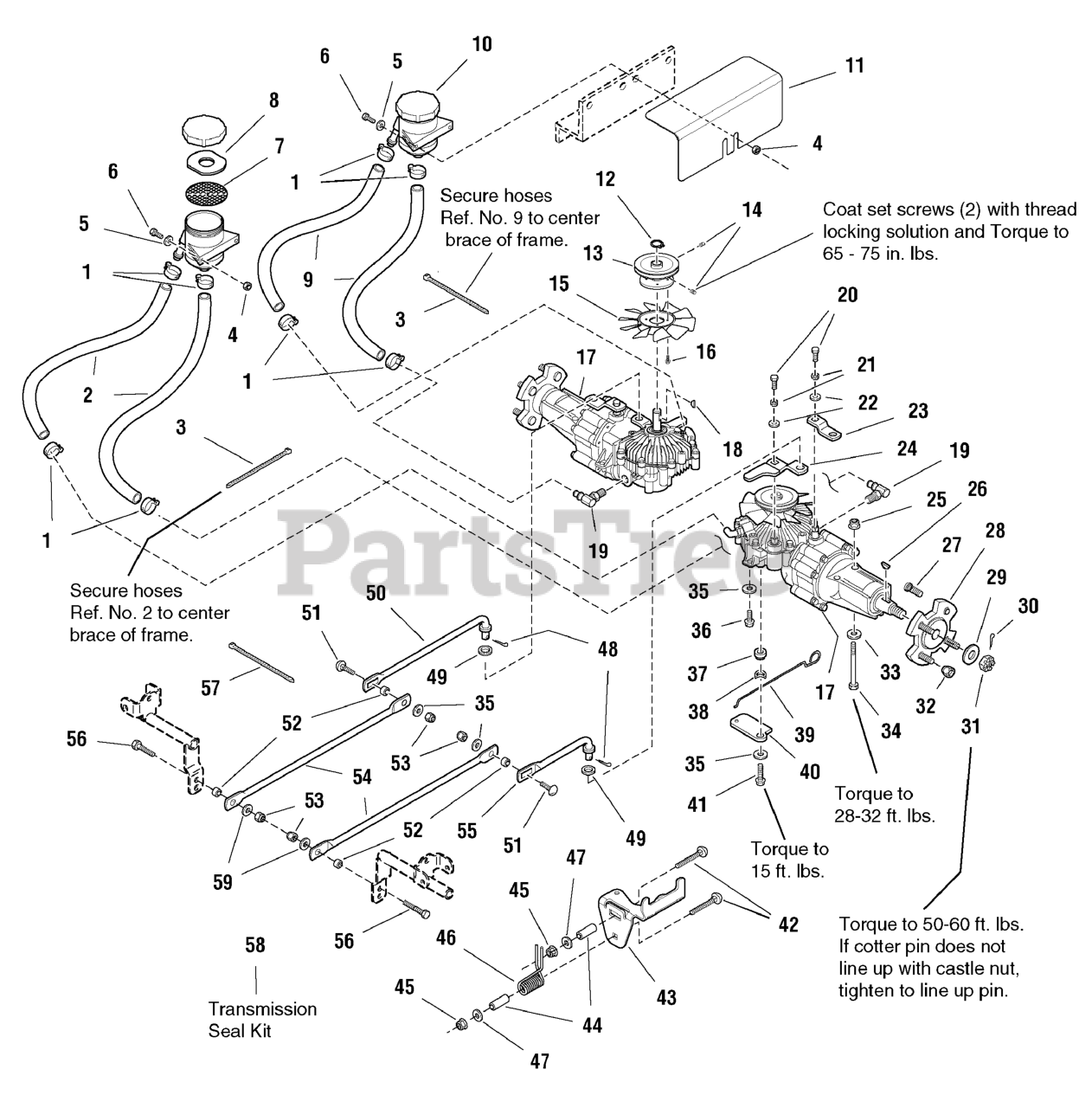

Transmission Group Parts Diagram

  • Title

1

Murray 2833098SM

CLAMP, Hose, Wire Type E

$3.49

$

In Stock, Qty 8

0

2

Murray 1719556SM

HOSE, Hydraulic

$14.99

$

In Stock, only 2 left!

0

3

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

4

Murray 1960294SM

NUT, Hex, Whiz Lock, Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

5

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1921959SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

7

Murray 1719912SM

FILTER, Reservoir

$43.99

$

In Stock, only 2 left!

0

8

Murray 1723164SM

WASHER, Special

$4.49

$

Usually ships in 2-12 days

0

9

Murray 1719557SM

HOSE, Hydraulic

$9.99

$

Usually ships in 2-12 days

0

10

Murray 1702488SM

RESERVOIR, Hydro Expansion

$59.99

$

In Stock, only 1 left!

0

11

Murray 1726494SM

COVER, Reservoir
(Superseded to 1726494ASM)

$8.49

$

Usually ships in 2-12 days

0

12

Murray 2827731SM

RING, Retaining

$3.99

$

In Stock, only 1 left!

0

13

Murray 1719382SM

PULLEY

$68.99

$

Usually ships in 2-12 days

0

14

Murray 1960617SM

SET SCREW, Torx Head Cup Point, 1/4-28 x 1/4, G8

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1719482SM

FAN, 10 Blades, 6" Plastic

$

$

Not available

16

Murray 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 5/8
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

17

Murray 1687181SM

TRANSMISSION ASSEMBLY

Note: (Includes Ref. Nos. 20, 21, 22, 23, 24, 26, 31, 42, 43, 44, 45, 46 & 47)

$1766.99

$

Usually ships in 2-12 days

0

18

Murray 2830672SM

KEY, Hi-Pro

$5.49

$

Usually ships in 2-12 days

0

19

Murray 1719560SM

FITTING, Hose Elbow, 3/8-18

$22.99

$

In Stock, only 2 left!

0

20

Murray 1922234SM

CAPSCREW, Hex Head, 1/4-28 x 5/8, G5

$2.49

$

Usually ships in 2-12 days

0

21

Murray 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Murray 1921319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Murray 1716044SM

ARM, Transmission Brake

$4.49

$

Usually ships in 2-12 days

0

24

Murray 1726500SM

ARM, Control

$13.99

$

Usually ships in 2-12 days

0

25

Murray 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 2805126SM

KEY, #15, 1/4 x 1

$4.99

$

Usually ships in 2-12 days

0

27

Murray 1663805SM

BOLT, Wheel Knurled, 7/16-20 x 1

$5.49

$

Usually ships in 2-12 days

0

28

Murray 1726351SM

PLATE & HUB ASSEMBLY, Rear Wheel

$92.99

$

Usually ships in 2-12 days

0

29

Murray 1911386SM

WASHER, 3/4
(Superseded to 703992)

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1923500SM

PIN, Cotter

$3.99

$

In Stock, only 1 left!

0

31

Murray 1716060SM

NUT, Hex Slotted, 3/4

$16.99

$

In Stock, only 2 left!

0

32

Murray 2177725SM

NUT, Hex, 7/16-20, for Wheel Bolt

$6.49

$

In Stock, only 3 left!

0

33

Murray 1924940SM

WASHER, 5/16
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

34

Murray 1922918SM

CAPSCREW, Hex Head, 3/8-16 x 3-1/4, G5
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

35

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

36

Murray 1960541SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4

$3.49

$

Usually ships in 2-12 days

0

37

Murray 1705590SM

SPACER

$16.99

$

Usually ships in 2-12 days

0

38

Murray 2170157SM

WASHER, Shakeproof, 1/2

$3.49

$

Usually ships in 2-12 days

0

39

Murray 1715957SM

ROD, Actuator

$8.99

$

Usually ships in 2-12 days

0

40

Murray 1715968SM

ACTUATOR, Tow Valve

$6.99

$

Usually ships in 2-12 days

0

41

Murray 1960373SM

CAPSCREW, Hex Washer Head Taptite, 5-16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

42

Murray 1960273SM

CARRIAGE BOLT, 5/16-18 x 2-1/4
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

43

Murray 1726438ASM

SUPPORT, Neutral Return

$11.99

$

Usually ships in 2-12 days

0

44

Murray 1713588SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

45

Murray 1919438SM

NUT, Flange ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

46

Murray 1717165SM

SPRING, Torsion

$7.99

$

Usually ships in 2-12 days

0

47

Murray 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

48

Murray 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

49

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

50

Murray 1715958SM

LINK, Control Rear, R.H.

$13.99

$

Usually ships in 2-12 days

0

51

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

52

Murray 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

53

Murray 1919438SM

NUT, Hex ESNA Light Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

54

Murray 1725945SM

ROD, Control

$15.99

$

Usually ships in 2-12 days

0

55

Murray 1715959SM

LINK, Control Rear, L.H.

$13.99

$

Usually ships in 2-12 days

0

56

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

57

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

58

Murray 1719442SM

* SEAL KIT, Transmission

$

$

Not available
