107.277700 (2277700) - Craftsman ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp (2004) Frame, Body & Seat Group Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp

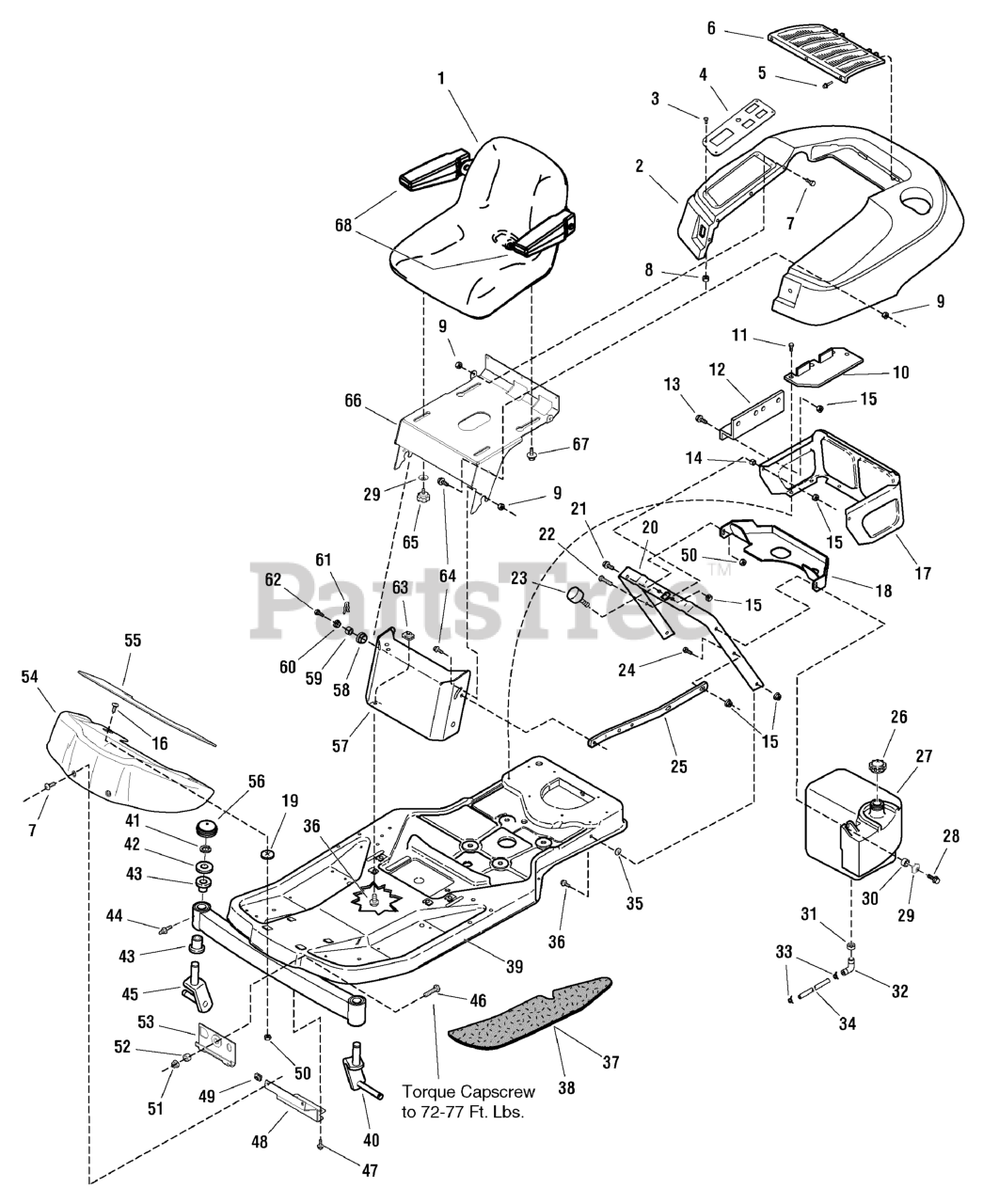

Frame, Body & Seat Group Parts Diagram

  • Title

1

Murray 1726018SM

SEAT ASSEMBLY, wth Arm Rests

Note: (Includes Ref. No. 68)

$744.99

$

In Stock, only 1 left!

0

2

Murray 1726305SM

DECK, Seat
(Superseded to 1734143SM)

$

$

Not available

3

Murray 1722293SM

CAPSCREW, Hex, Socket Head, 1/4-20 x 7/8, G5

$2.49

$

Usually ships in 2-12 days

0

4

Murray 1726369SM

PLATE, Pod Control
(Superseded to 1726369ASM)

$15.99

$

Usually ships in 2-12 days

0

5

Murray 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

6

Murray 1708504SM

SCREEN, Seat Deck
(Superseded to 7102141SM)

$42.99

$

In Stock, only 1 left!

0

7

Murray 1960715SM

SCREW, Truss Head Torx Drive, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

8

Murray 1920397SM

NUT, Hex Lock ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Murray 1960694SM

NUT, Hex Flange ESNA, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

10

Murray 1716027SM

PLATE, Battery

$9.99

$

Usually ships in 2-12 days

0

11

Murray 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2, G5
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

12

Murray 1715961SM

SUPPORT, Reservoir

$14.99

$

Usually ships in 2-12 days

0

13

Murray 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8, G5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

14

Murray 1673796SM

SPACER, Powdered Metal

$24.99

$

Usually ships in 2-12 days

0

15

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Murray 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

17

Murray 1715962ASM

SHROUD, Rear
(Superseded to 7301146AYP)

$68.99

$

Usually ships in 2-12 days

0

18

Murray 1726417SM

DUCT, Air Inlet

$23.99

$

Usually ships in 2-12 days

0

19

Murray 1960518SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

20

Murray 1725982SM

SUPPORT, Seat Deck

$59.99

$

Usually ships in 2-12 days

0

21

Murray 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

22

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

23

Murray 1726390SM

BUMPER, Rubber

$9.99

$

Usually ships in 2-12 days

0

24

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

25

Murray 1708362ASM

BRACE, Tank

$41.99

$

Usually ships in 2-12 days

0

26

Murray 1714020SM

CAP, Fuel Tank

$31.99

$

In Stock, only 2 left!

0

27

Murray 1726397SM

TANK, Fuel

$168.99

$

Usually ships in 2-12 days

0

28

Murray 1930600SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

29

Murray 1960606SM

LOCKWASHER, Pyramidal, Hex, 3/4

$5.49

$

Usually ships in 2-12 days

0

30

Murray 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

31

Murray 1726400SM

BUSHING, Fuel Tank
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

32

Murray 1674792SM

ELBOW, with Screen, Gas Tank To Fuel Line

$15.99

$

In Stock, Qty 13

0

33

Murray 2860112SM

CLAMP, Hose, Wire Type E

$3.99

$

Usually ships in 2-12 days

0

34

Murray 1718678SM

HOSE, Fuel

$

$

Not available

35

Murray 1933988SM

NUT, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

36

Murray 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

37

Murray 1728986SM

PAD, Footrest, R.H.

$10.99

$

Usually ships in 2-12 days

0

38

Murray 1728987SM

PAD, Footrest, L.H.

$10.99

$

In Stock, only 1 left!

0

39

Murray 1729629SM

FRAME & SPINDLES ASSEMBLY

Note: (Includes Ref. Nos. 40, 41, 42, 43, 44 & 45)

$

$

Not available

40

Murray 1715999SM

ARM, Caster, L.H.
(Superseded to 1726377ASM)

$114.99

$

Usually ships in 2-12 days

0

41

Murray 2834712SM

RING, E-Retaining

$4.99

$

In Stock, only 2 left!

0

42

Murray 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

43

Murray 1721682SM

BUSHING

$5.49

$

In Stock, Qty 20+

0

44

Murray 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

45

Murray 1715997SM

ARM, Caster, R.H.
(Superseded to 1726378ASM)

$119.99

$

Usually ships in 2-12 days

0

46

Murray 1920328SM

CAPSCREW, Hex, 1/2-13 x 1-1/2
(Superseded to 703571)

$4.49

$

In Stock, only 1 left!

0

47

Murray 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

48

Murray 1726024ASM

BRACKET, Footrest Support

$28.99

$

Usually ships in 2-12 days

0

49

Murray 1960368SM

LUG NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

50

Murray 1930641SM

NUT, Hex Flange Whiz Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

51

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

52

Murray 1709235SM

SPACER

$9.99

$

Usually ships in 2-12 days

0

53

Murray 1716064ASM

HOOK & WASHER ASSEMBLY

$21.99

$

Usually ships in 2-12 days

0

54

Murray 1726025ZSM

PANEL, Footrest

$159.99

$

Usually ships in 2-12 days

0

55

Murray 1726306SM

PAD, Footrest, Front

$119.99

$

Usually ships in 2-12 days

0

56

Murray 1726504SM

CAP, Hub

$4.99

$

In Stock, only 2 left!

0

57

Murray 1725926SM

PANEL, Front

$

$

Not available

58

Murray 1704626SM

SPACER

$6.99

$

In Stock, only 2 left!

0

59

Murray 1705249SM

SPACER

$

$

Not available

60

Murray 1705248SM

PIVOT, Hood

$

$

Not available

61

Murray 1704628SM

PIN, Quick

$4.49

$

In Stock, only 4 left!

0

62

Murray 1960373SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

63

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

64

Murray 1960295SM

SCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

65

Murray 1726520SM

KNOB, Exterior Thread, 5/16-18 x 1

$5.99

$

In Stock, only 1 left!

0

66

Murray 1725929ASM

SUPPORT, Seat

$

$

Not available

67

Murray 1716654SM

BOLT, Hex Shoulder, 5/16-18 3/4, G5

$5.49

$

In Stock, only 2 left!

0

68

Murray 1687021SM

ARM REST KIT, (L.H. & R.H.)

$240.99

$

Usually ships in 2-12 days

0
