107.277700 (2277700) - Craftsman ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp (2004) Engine Group Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp

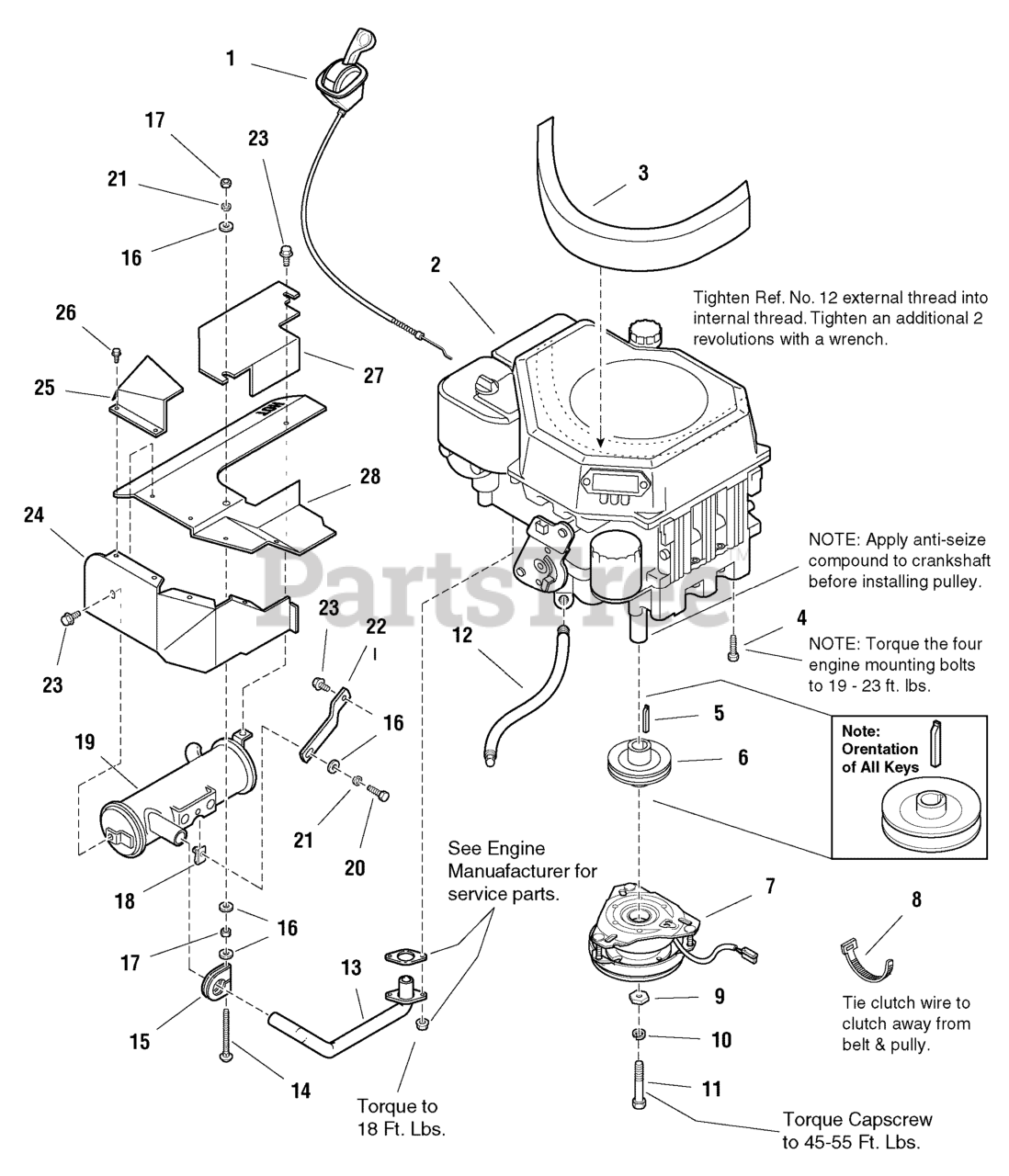

Engine Group Parts Diagram

  • Title

1

Murray 1726398SM

CONTROL, Throttle

$70.99

$

Usually ships in 2-12 days

0

2

ENGINE, 18HP, KOHLER

Note: (Refer to Note: *)

$

$

Not available

3

Murray 1726420SM

SEAL, Foam

$12.99

$

Usually ships in 2-12 days

0

4

Murray 1927187SM

SCREW, Hex Washer Head Taptite, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

5

Murray 1720463SM

KEY, Hi-Pro, 1/4 x 2-1/2

$8.99

$

In Stock, only 1 left!

0

6

Murray 1719385SM

PULLEY ASSY, PTO

$70.99

$

Usually ships in 2-12 days

0

7

Murray 1686880SM

CLUTCH, Electric Ogura
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

8

Murray 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

9

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

10

Murray 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

11

Murray 2860631SM

CAPSCREW, Hex Head, 7/16-20 x 3, G5

$3.99

$

Usually ships in 2-12 days

0

12

Murray 1726498SM

HOSE, Oil Drain

$26.99

$

Usually ships in 2-12 days

0

13

Murray 1713502SM

PIPE, Exhaust

$90.99

$

Usually ships in 2-12 days

0

14

Murray 1960483SM

CARRIAGE BOLT, 5/16-18 x 3-1/4, G5
(Superseded to 1960748SM)

$4.49

$

Usually ships in 2-12 days

0

15

Murray 1676183SM

CLAMP, Muffler, 1.312 Dia.

$4.49

$

Usually ships in 2-12 days

0

16

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

17

Murray 1917372SM

NUT, Hex, 5/16-18 NC-2B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

19

Murray 1708416SM

MUFFLER ASSEMBLY

$198.99

$

Usually ships in 2-12 days

0

20

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

21

Murray 1917356SM

WASHER, Lock Helical Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Murray 1713557ASM

SUPPORT, Muffler

$22.99

$

Usually ships in 2-12 days

0

23

Murray 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

24

Murray 1722621ASM

DUCT, Air, Bottom

$30.99

$

In Stock, only 1 left!

0

25

Murray 1726539SM

SHIELD, Heat
(Superseded to 1726539ASM)

$14.99

$

Usually ships in 2-12 days

0

26

Murray 1960720SM

CAPSCREW, Thread Cutting, # 10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

27

Murray 1726634SM

SHIELD, Muffler, Oil Filter Access Panel
(Superseded to 1726634ASM)

$56.99

$

Usually ships in 2-12 days

0

28

Murray 1726633SM

SHIELD, Muffler
(Superseded to 1726633ASM)

$131.99

$

Usually ships in 2-12 days

0
