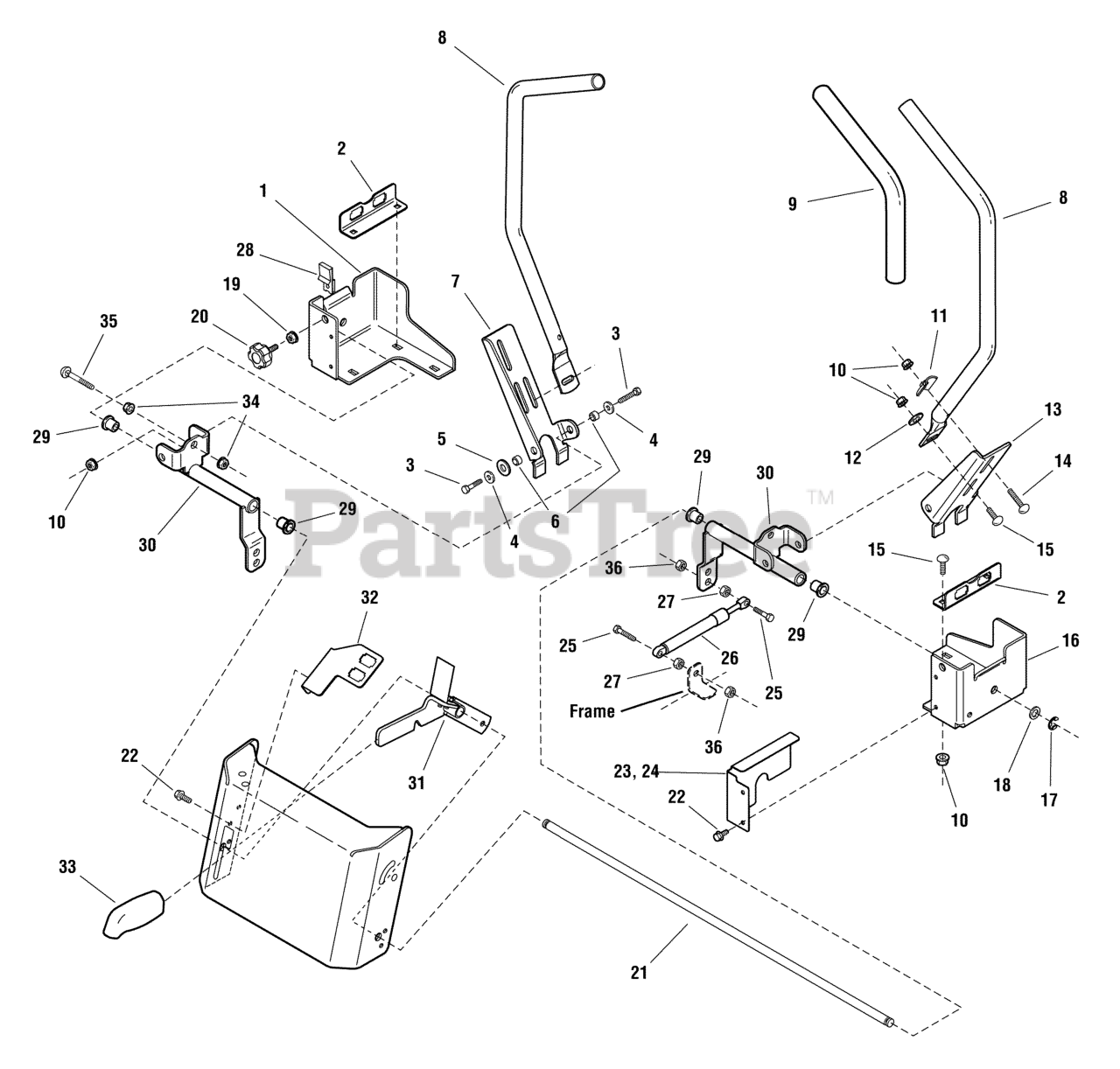

107.277700 (2277700) - Craftsman ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp (2004) Controls Group Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp

Controls Group Parts Diagram

  • Title

1

Murray 1728010ASM

BRACKET, Mounting, R.H.

$86.99

$

Usually ships in 2-12 days

0

2

Murray 1725978SM

BRACKET, Switch
(Superseded to 1727663ASM)

$9.99

$

Usually ships in 2-12 days

0

3

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

4

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

5

Murray 1726445SM

WASHER, Flat Nylon, 1/2

$3.49

$

Usually ships in 2-12 days

0

6

Murray 1710437SM

SPACER

$18.99

$

Usually ships in 2-12 days

0

7

Murray 1725933SM

BRACKET, Tube Mount, R.H.

$

$

Not available

8

Murray 1725934ASM

TUBE, Control Wand

$36.99

$

Usually ships in 2-12 days

0

9

Murray 1726410SM

GRIP, Foam Handle Bar

$11.99

$

In Stock, only 1 left!

0

10

Murray 1960686SM

NUT, Hex Flange ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

11

Murray 1720452SM

CLAMP, Saddle

$12.99

$

In Stock, only 1 left!

0

12

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 1726041SM

BRACKET, Tube Mount, L.H.
(Superseded to 1726041ASM)

$28.99

$

Usually ships in 2-12 days

0

14

Murray 1931338SM

CARRIAGE BOLT, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

15

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

16

Murray 1728009ASM

BRACKET, Mounting, L.H.

$64.99

$

Usually ships in 2-12 days

0

17

Murray 1703805SM

RING, Klipring

$3.49

$

In Stock, Qty 12

0

18

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

19

Murray 1920161SM

NUT, Hex Jam 5/16-18

$4.49

$

In Stock, only 2 left!

0

20

Murray 1726839SM

KNOB, Extension, Threaded, 5/16-18 x 1-1/4

$7.49

$

In Stock, only 2 left!

0

21

Murray 1725927SM

SHAFT, Cross

$33.99

$

Usually ships in 2-12 days

0

22

Murray 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 5/8
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

23

Murray 1726497SM

COVER, Lower Handle, L.H.

$

$

Not available

24

Murray 1726496SM

COVER, Lower Handle, R.H.

$

$

Not available

25

Murray 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

26

Murray 1726308SM

SHOCK ABSORBER

$62.99

$

In Stock, Qty 16

0

27

Murray 1917372SM

NUT, Hex Jam, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

28

Murray 1960717SM

NUT, Speed Lug Type, 5/16-18

$6.49

$

Usually ships in 2-12 days

0

29

Murray 1715025SM

BUSHING

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1725938SM

PIVOT ASSEMBLY, Control

$64.99

$

Usually ships in 2-12 days

0

31

Murray 1725966SM

HANDLE ASSEMBLY, Brake
(Superseded to 1725966ASM)

$38.99

$

Usually ships in 2-12 days

0

32

Murray 1726441SM

SUPPORT, Switch

$

$

Not available

33

Murray 1722302SM

HANDLE

$8.49

$

In Stock, Qty 10

0

34

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Murray 1960723SM

CARRIABE BOLT, 5/16-18 x 2-1/4, G5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

36

Murray 1919438SM

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
