107.277700 (2277700) - Craftsman ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp (2004) 50" Mower Deck - Clutch & Support Group Parts Diagram

ZT7000 Series 50" Zero-Turn Mower, Hydro, 18hp

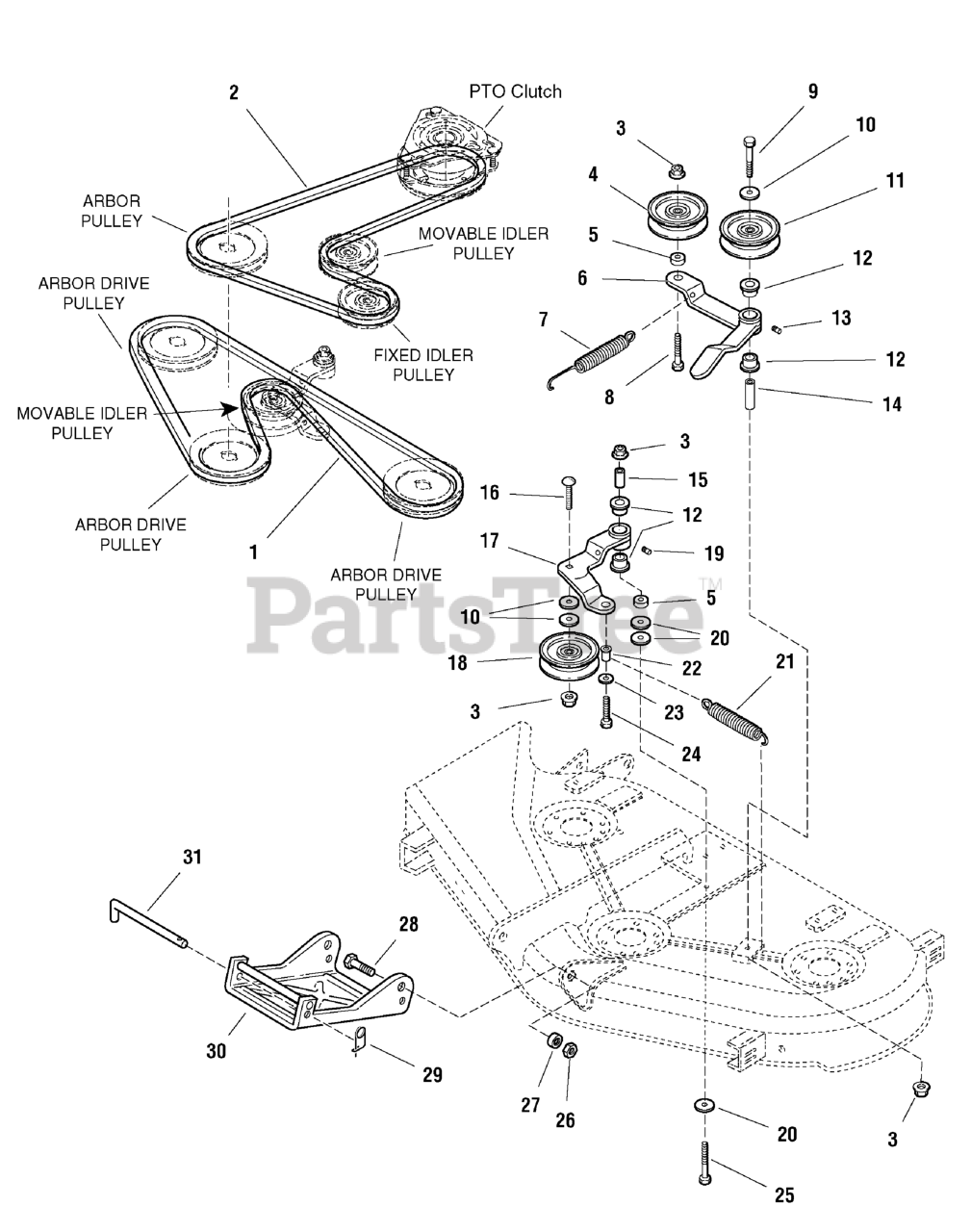

50" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Murray 1726472SM

V-BELT, Mower Drive

$47.99

$

In Stock, only 1 left!

0

2

Murray 1726471SM

V-BELT, P.T.O.

$45.99

$

In Stock, only 1 left!

0

3

Murray 1960339SM

NUT, Hex Flange, 3/8-16

$

$

Not available

4

Murray 2171247SM

PULLEY, Idler

$51.99

$

In Stock, Qty 20+

0

5

Murray 1667811SM

SPACER, Powdered Metal

$3.49

$

In Stock, Qty 20+

0

6

Murray 1726814SM

LEVER & HANDLE ASSEMBLY
(Superseded to 1726815ASM)

Note: (Includes Ref. Nos. 13 & 14)

$110.99

$

Usually ships in 2-12 days

0

7

Murray 1714062SM

SPRING, Extension

$

$

Not available

8

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

9

Murray 1922918SM

CAPSCREW, 3/8-16 x 3-1/4
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

10

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Murray 1706510SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

12

Murray 1676148SM

BUSHING

$5.99

$

In Stock, Qty 20+

0

13

Murray 2812808SM

FITTING, Lube, 1/4-20 Tapered

$4.49

$

In Stock, Qty 20+

0

14

Murray 1657242SM

SPACER, Hardened

$10.99

$

In Stock, Qty 10

0

15

Murray 1674669SM

SPACER, .39 X 5/8 X 1.15

$11.99

$

In Stock, Qty 20+

0

16

Murray 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4, G5

$4.49

$

In Stock, Qty 10

0

17

Murray 1718561SM

LEVER ASSEMBLY, Idler

Note: (Includes Ref. Nos. 12 & 20)

$50.99

$

Usually ships in 2-12 days

0

18

Murray 1724387SM

PULLEY, Idler

$35.99

$

In Stock, Qty 20+

0

19

Murray 2821133SM

FITTING, Lube, 1/4 Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

20

Murray 1924356SM

WASHER, 3/8
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

21

Murray 1656936SM

SPRING, Extension

$9.99

$

In Stock, Qty 20+

0

22

Murray 1701159SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

23

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

24

Murray 1933958SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/6

$4.49

$

In Stock, only 1 left!

0

25

Murray 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

26

Murray 1919439SM

NUT, Hex Lock ESNA Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

27

Murray 1713791SM

SPACER, Powdered Metal

$14.99

$

In Stock, only 1 left!

0

28

Murray 1922605SM

CAPSCREW, 3/8-16 x 1-1/4, G8
(Superseded to 703969)

$4.99

$

Usually ships in 2-12 days

0

29

Murray 2176012SM

PIN, Retaining
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

30

Murray 1726010ASM

HITCH & ROD ASSEMBLY

$109.99

$

Usually ships in 2-12 days

0

31

Murray 1726012SM

ROD, Hitch

$12.99

$

In Stock, only 1 left!

0
