107.250070 (2691088-00) - Craftsman CTX9500 Series 54" Lawn Tractor, 30hp (2012) Transmission Service Parts - Tuff Torq K71E without Diff Lock (1721404) Parts Diagram

CTX9500 Series 54" Lawn Tractor, 30hp

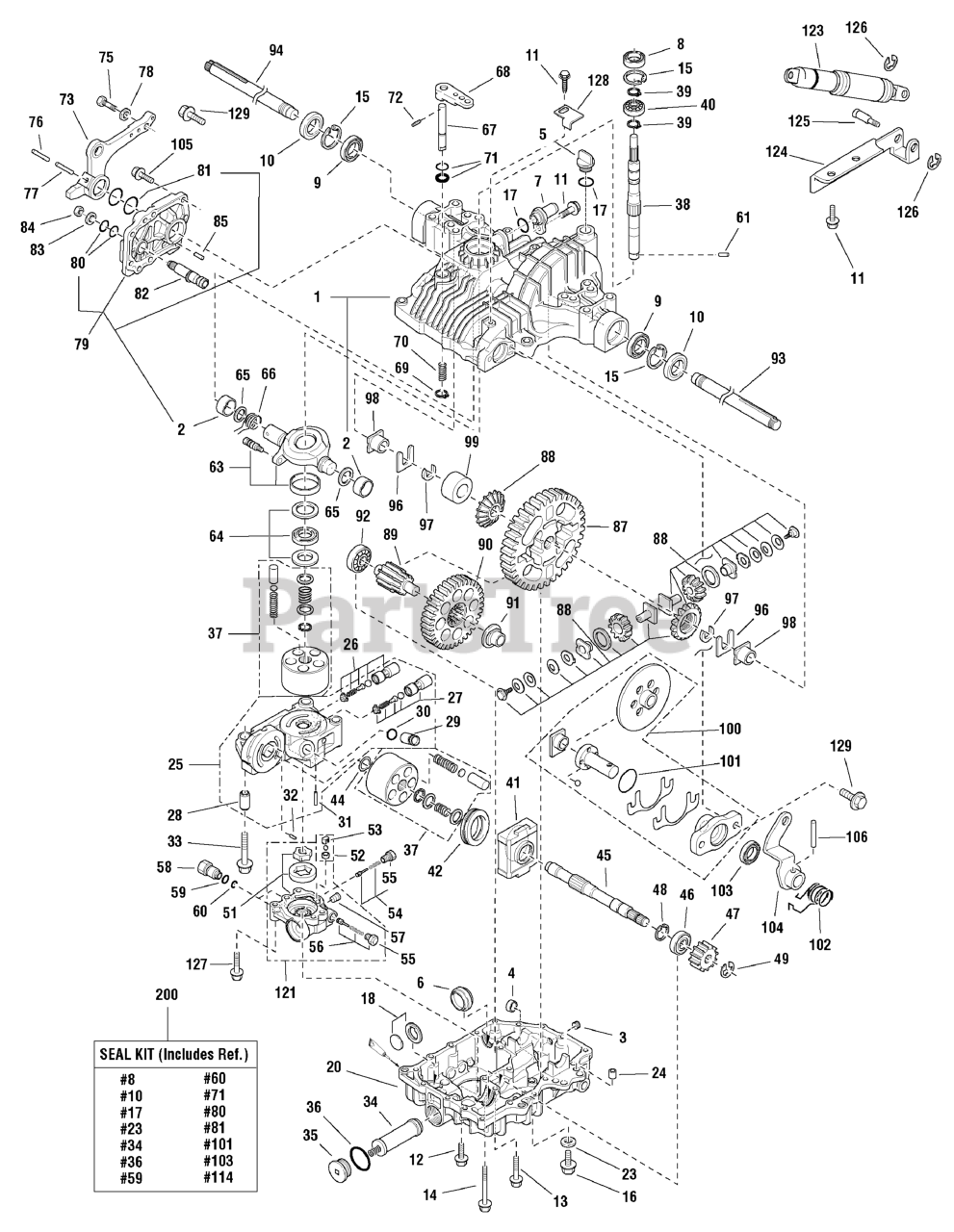

Transmission Service Parts - Tuff Torq K71E without Diff Lock (1721404) Parts Diagram

  • Title

1

*UPPER HOUSING, Complete

$

$

Not available

2

BEARING, 28 x 15

$

$

Not available

3

Murray 1720758SM

TAPER PLUG, 1/8

$4.99

$

Usually ships in 2-12 days

0

4

BORE PLUG, 17

$

$

Not available

5

Murray 1720760SM

CAP, Oil, 20

$

$

Not available

6

FILTER

$

$

Not available

7

Murray 1720762SM

FITTING

$10.99

$

Usually ships in 2-12 days

0

8

Murray 1720782SM

SEAL

$17.99

$

Usually ships in 2-12 days

0

9

BEARING

$

$

Not available

10

SEAL

$

$

Not available

11

Murray 1720785SM

SCREW, Tapping, 8 x 25

$3.99

$

Usually ships in 2-12 days

0

12

SCREW, Tapping, 8 x 30

$

$

Not available

13

*SCREW, Tapping, 8 x 45

$

$

Not available

14

BOLT, 8 x 75

$

$

Not available

15

Murray 1720787SM

RING, 47

$4.49

$

Usually ships in 2-12 days

0

16

Murray 1720788SM

BOLT, 10 x 12

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1707786SM

PACKING, P18

$6.49

$

Usually ships in 2-12 days

0

18

MAGNET, Complete

$

$

Not available

20

LOWER HOUSING, Complete

$

$

Not available

23

Murray 1720796SM

WASHER, Seal 10

$

$

Not available

24

PIPE, 13 x 11.3

$

$

Not available

25

*CENTER CASE, Complete

$

$

Not available

26

*VALVE, (A-1 SET)

$

$

Not available

27

*VALVE, (A-2 SET)

$

$

Not available

28

KNOCK PIN, 15.5 x 30

$

$

Not available

29

PLUG, 16 x 25

$

$

Not available

30

PACKING

$

$

Not available

31

*PIN, 8 x 14

$

$

Not available

32

PIN, 3 x 9.8

$

$

Not available

33

BOLT, 10 x 75

$

$

Not available

34

FILTER

$

$

Not available

35

Murray 1720807SM

CAP, (M40)

$14.99

$

Usually ships in 2-12 days

0

36

Murray 1720808SM

PACKING

$5.49

$

Usually ships in 2-12 days

0

37

*CYLINDER BLOCK, Complete

$

$

Not available

38

Murray 1723782SM

PUMP SHAFT

$111.99

$

Usually ships in 2-12 days

0

39

Murray 1720811SM

RING, 17

$3.99

$

Usually ships in 2-12 days

0

40

Murray 1720812SM

BEARING, 6303

$24.99

$

Usually ships in 2-12 days

0

41

*HOUSING

$

$

Not available

42

*BEARING, 51207

$

$

Not available

44

WASHER, 18 x 31 x 1

$

$

Not available

45

*SHAFT MOTOR

$

$

Not available

46

BEARING 6004 SH2 U

$

$

Not available

47

*MOTOR GEAR

$

$

Not available

48

*RING, Snap, 20

$

$

Not available

49

RING, E15

$

$

Not available

51

*PUMP CASE, Complete

$

$

Not available

52

*3RD CHECK, Complete

$

$

Not available

53

*HOLDER, (Seat)

$

$

Not available

54

*VALVE, (Imp Complete)

$

$

Not available

55

*PLUG

$

$

Not available

56

*VALVE, (Charge Complete)

$

$

Not available

57

PLUG, PT 1/8

$

$

Not available

58

CONNECTOR

$

$

Not available

59

O-RING

$

$

Not available

60

PACKING, 6.1

$

$

Not available

61

Murray 1720832SM

PIN, 3.2 x 21

$3.99

$

Usually ships in 2-12 days

0

63

*SWASH PLATE, Complete

$

$

Not available

64

*BEARING, Complete

$

$

Not available

65

*WASHER

$

$

Not available

66

*SPRING (N/C)

$

$

Not available

67

*SHAFT (BYPASS)

$

$

Not available

68

*LEVER (BYPASS)

$

$

Not available

69

RING

$

$

Not available

70

SPRING

$

$

Not available

71

PACKING

$

$

Not available

72

PIN, 3.0A*20

$

$

Not available

73

Murray 1720840SM

CONTROL LEVER

$96.99

$

Usually ships in 2-12 days

0

75

Murray 1720841SM

BOLT

$6.99

$

Usually ships in 2-12 days

0

76

Murray 1720842SM

PIN, 6.0A x 50

$4.49

$

Usually ships in 2-12 days

0

77

Murray 1720843SM

PIN, 3.5A x 50

$4.49

$

Usually ships in 2-12 days

0

78

Murray 1720844SM

WASHER, 10

$3.49

$

Usually ships in 2-12 days

0

79

*SIDE COVER SET

$

$

Not available

80

PACKING, P14

$

$

Not available

81

PACKING, P28

$

$

Not available

82

*FULCRUM, (ECCENT)

$

$

Not available

83

Murray 1708689SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

84

Murray 1708692SM

NUT 12

$2.99

$

Usually ships in 2-12 days

0

85

*PIN, 8 x 16

$

$

Not available

87

*FINAL GEAR

$

$

Not available

88

DIFFERENTIAL GEAR KIT

$

$

Not available

89

*SHAFT, (F PINION)

$

$

Not available

90

*REDUCTION GEAR

$

$

Not available

91

*BUSHING, 15

$

$

Not available

92

*BEARING, 6203SH2

$

$

Not available

93

*AXLE SHAFT, Left

$

$

Not available

94

*AXLE SHAFT, Right

$

$

Not available

96

THRUST WASHER

$

$

Not available

97

RING

$

$

Not available

98

*BUSHING

$

$

Not available

99

*COLLAR, (Diff. Lock)

$

$

Not available

100

BRAKE KIT

$

$

Not available

101

*PACKING, G35

$

$

Not available

102

SP, (RETURN)

$

$

Not available

103

SEAL, TC173007

$

$

Not available

104

*ARM, (BRAKE)

$

$

Not available

105

*BOLT, 8 x 35

$

$

Not available

106

PIN, 6.0A x 4.0

$

$

Not available

121

PUMP CASE S/A

$

$

Not available

123

Murray 1718039SM

SHOCK ABSORBER

$240.99

$

In Stock, only 1 left!

0

124

Murray 1731903SM

STAY

$17.99

$

Usually ships in 2-12 days

0

125

Murray 1724705SM

PIN

$3.49

$

Usually ships in 2-12 days

0

126

Murray 1732579YP

E-Ring

$4.99

$

Usually ships in 2-12 days

0

127

BOLT, 8 x 45

$

$

Not available

128

Murray 1721188SM

STOPPER, Brake

$22.99

$

Usually ships in 2-12 days

0

129

BOLT, 8 x 25

$

$

Not available

200

Murray 1727539SM

SEAL KIT, K71H, E, J, L

$228.99

$

Usually ships in 2-12 days

0

201

*KIT, Repair

$

$

Not available
