107.250070 (2691088-00) - Craftsman CTX9500 Series 54" Lawn Tractor, 30hp (2012) Seat & Seat Deck Group - EVAP Compliant Parts Diagram

CTX9500 Series 54" Lawn Tractor, 30hp

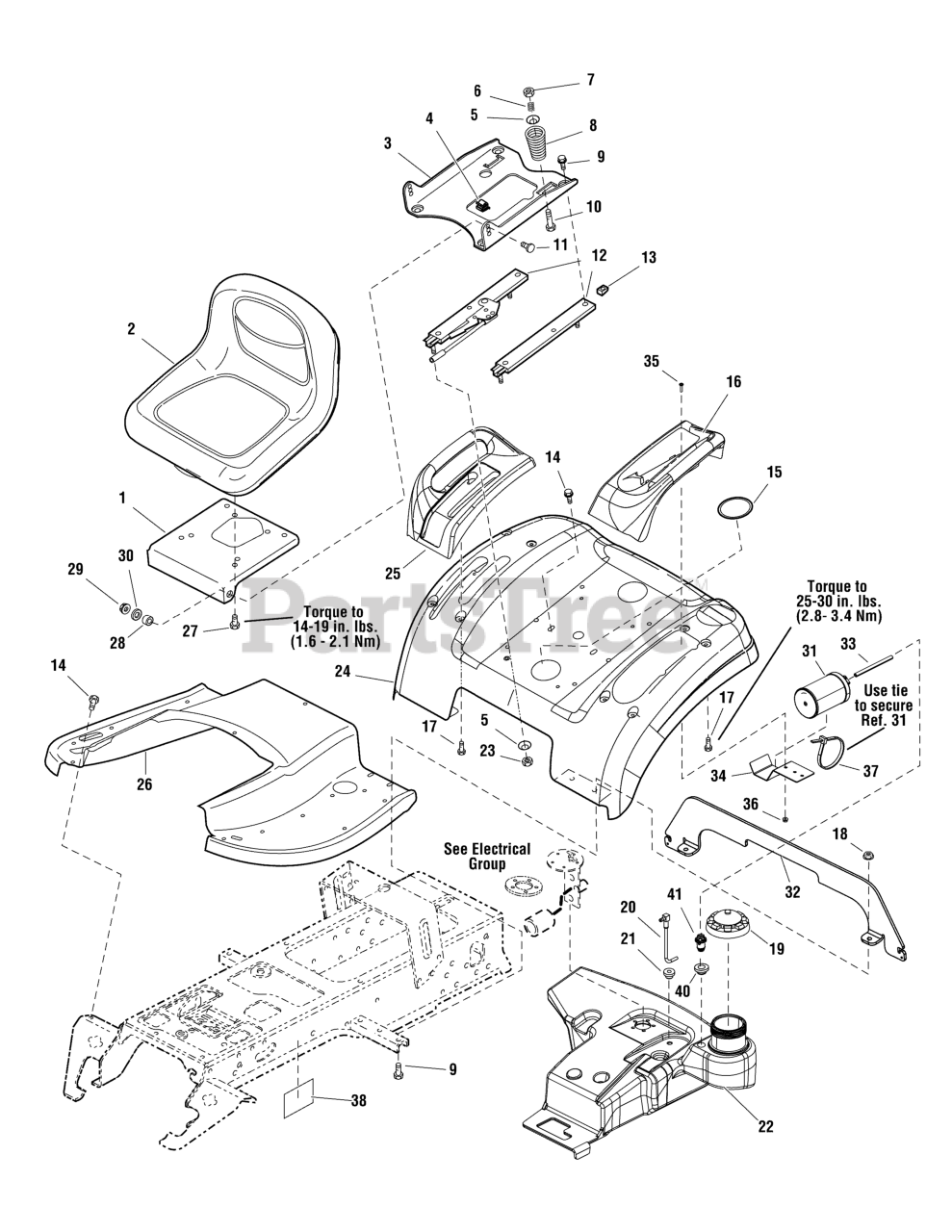

Seat & Seat Deck Group - EVAP Compliant Parts Diagram

  • Title

1

Murray 1722129ASM

BRACKET, 1-5/8 x 1-3/4

$62.99

$

Usually ships in 2-12 days

0

2

Murray 1753728YP

SEAT, 18"

$591.99

$

Usually ships in 2-12 days

0

3

Murray 1722128ASM

SUPPORT, Seat

$87.99

$

Usually ships in 2-12 days

0

4

Murray 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

5

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

6

Murray 1714263SM

SPRING, Compression

$4.99

$

In Stock, only 1 left!

0

7

Murray 1919438SM

NUT, Hex Lock, ESNA Light, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Murray 1717051SM

SPRING, Compression

$13.99

$

In Stock, Qty 20+

0

9

Murray 1930591SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

10

Murray 1931339SM

BOLT, Carriage, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

11

Murray 1931350SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

12

Murray 1722356SM

SLIDE, Seat

$62.99

$

In Stock, only 1 left!

0

13

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

14

Murray 1930601SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

15

Murray 1722309SM

PLUG, Plastic

$5.99

$

In Stock, Qty 11

0

16

Murray 1729711SM

POD, with Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

17

Murray 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

18

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Murray 5103005YP

CAP, Gas
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 6

0

20

Murray 1722340SM

TUBE & ELBOW ASSEMBLY

$34.99

$

Usually ships in 2-12 days

0

21

Murray 1654930SM

BUSHING, 3/8 x 9/16 x 5/8, Rubber

$7.99

$

In Stock, Qty 20+

0

22

Murray 1751622YP

TANK, Fuel

Note: (Incl. Ref. Nos. 39, 40 & 41)

$365.99

$

Usually ships in 2-12 days

0

23

Murray 1960636SM

NUT, Hex KEPS, 5/16-18

$4.99

$

In Stock, only 1 left!

0

24

Murray 1722106ZYP

DECK, Seat

$387.99

$

Usually ships in 2-12 days

0

25

Murray 1722108SM

POD, RH with 2 Slots
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

26

Murray 1722105ZYP

TUNNEL

$239.99

$

Usually ships in 2-12 days

0

27

Murray 770697

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1

$

$

Not available

28

Murray 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$5.99

$

In Stock, only 2 left!

0

29

Murray 1930645SM

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Murray 1751599YP

CARBON CANISTER, 300CC

$59.99

$

Usually ships in 2-12 days

0

32

Murray 1727949ASM

SUPPORT, Mower Hanger

$95.99

$

Usually ships in 2-12 days

0

33

Murray 7700552X5YP

HOSE, Vapor
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

34

Murray 1752099AYP

BRACKET, Canister Mounting

$20.99

$

Usually ships in 2-12 days

0

35

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

36

Murray 1960591SM

NUT, KEPS Lock, #10-24

$3.49

$

In Stock, Qty 8

0

37

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

38

DECAL, EVAP

$

$

Not available

40

Murray 799624

GROMMET

Note: (Included with Ref. No. 22)

$8.99

$

In Stock, Qty 15

0

41

Murray 7104638YP

REMOTE VENT ASSEMBLY

Note: (Included with Ref. No. 22)

$

$

Not available
