107.250070 (2691088-00) - Craftsman CTX9500 Series 54" Lawn Tractor, 30hp (2012) Lift Group - Hydraulic Lift with Power Steering Parts Diagram

CTX9500 Series 54" Lawn Tractor, 30hp

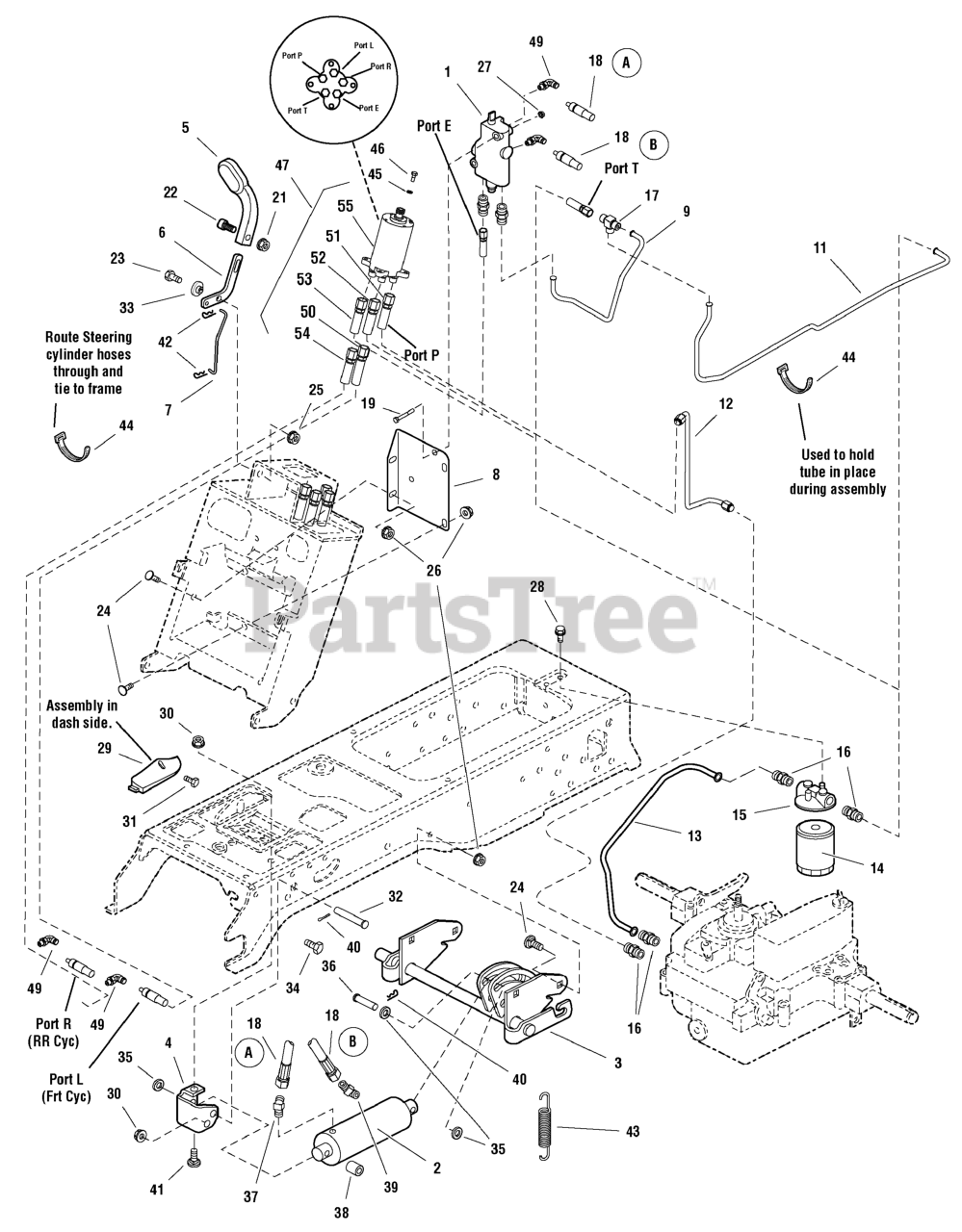

Lift Group - Hydraulic Lift with Power Steering Parts Diagram

  • Title

1

Murray 1717558SM

CONTROL VALVE, Single Spool

$670.99

$

Usually ships in 2-12 days

0

2

Murray 1722266SM

CYLINDER, Hydraulic

$524.99

$

Usually ships in 2-12 days

0

3

Murray 1727436ASM

SHAFT ASSEMBLY, Lift

$256.99

$

Usually ships in 2-12 days

0

4

Murray 1722113ASM

SUPPORT, Cylinder

$27.99

$

Usually ships in 2-12 days

0

5

Murray 1722146SM

HANDLE, Lift

$14.99

$

Usually ships in 2-12 days

0

6

Murray 1721901SM

LEVER, Hydraulic

$8.99

$

Usually ships in 2-12 days

0

7

Murray 1727557SM

ROD, Curved Link

$13.99

$

In Stock, Qty 7

0

8

Murray 1721904ASM

SUPPORT, Control

$23.99

$

Usually ships in 2-12 days

0

9

Murray 1722135SM

TUBE, Hydraulic, 5 Bends

$53.99

$

Usually ships in 2-12 days

0

11

Murray 1722138SM

TUBE, Hydraulic, 8 Bends

$139.99

$

Usually ships in 2-12 days

0

12

Murray 1733727SM

TUBE, Hydraulic 3 Bends

$74.99

$

Usually ships in 2-12 days

0

13

Murray 1733427SM

TUBE, Hydraulic

Note: (Used only on 4WD Hydro Lift units)

$68.99

$

Usually ships in 2-12 days

0

13

Murray 1722297SM

TUBE, Hydraulic, 5 Bends

$70.99

$

In Stock, only 1 left!

0

14

Murray 1719168SM

FILTER, Oil
(Superseded to 1719168YP)

$26.99

$

In Stock, Qty 20+

0

15

Murray 1719169SM

BASE, Oil Filter

$56.99

$

Usually ships in 2-12 days

0

16

Murray 1722123SM

FITTING, Straight

$9.99

$

Usually ships in 2-12 days

0

17

Murray 1733211SM

FITTING, Tee, 3 Ports / Hydraulic Hose

$43.99

$

Usually ships in 2-12 days

0

18

Murray 1733216SM

HOSE ASSEMBLY, Hydraulic

$79.99

$

Usually ships in 2-12 days

0

19

Murray 1921963SM

CAPSCREW, Hex Head, 1/4-20 x 2 G5

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Murray 1960666SM

SCREW, Torx Plus Socket Head 1/4-20 x 7/8

$4.49

$

In Stock, only 1 left!

0

23

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

24

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

25

Murray 1919438SM

NUT, Hex Lock ESNA Light 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

26

Murray 1960636SM

NUT, Hex KEPS 5/16-18

$4.99

$

In Stock, only 1 left!

0

27

Murray 2828372SM

NUT, Hex KEPS 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

28

Murray 1931646SM

SCREW, Hex Whiz Lock Flange, 1/4-20 x 1/2

$4.49

$

In Stock, only 2 left!

0

29

Murray 1722285SM

COVER, Dash ABS

Note: (SEE NARRATIVE)

$6.99

$

Usually ships in 2-12 days

0

30

Murray 1960637SM

NUT, Hex KEPS 3/8-16

$3.49

$

In Stock, only 1 left!

0

31

Murray 1722607SM

SCREW, Pan Head Torque, #8-16 x 1/2, Plastite

$3.99

$

In Stock, only 1 left!

0

32

Murray 1722147SM

PIN, Clevis

$8.49

$

In Stock, only 1 left!

0

33

Murray 1723244SM

SPACER, Pivot

$7.99

$

Usually ships in 2-12 days

0

34

Murray 1921210SM

CAPSCREW, Hex Head 3/8-16 x 1 G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

35

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

36

Murray 1722819SM

PIN, Flat Head Drilled

$6.99

$

In Stock, only 2 left!

0

37

Murray 1722122SM

FITTING, Elbow 1/2

$

$

Not available

38

Murray 1722148SM

SPACER

$11.99

$

Usually ships in 2-12 days

0

39

Murray 1722141SM

FITTING, Elbow 1/2

$17.99

$

Usually ships in 2-12 days

0

40

Murray 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

41

Murray 1931350SM

BOLT, Carriage, 3/8-16 x 1, G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

42

Murray 1923360SM

PIN, Cotter 5/8 x 3/4
(Superseded to 703892)

$3.49

$

In Stock, only 1 left!

0

43

Murray 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

44

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

45

Murray 1916964SM

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

46

Murray 2860444SM

CAPSCREW, Hex Head

$2.99

$

Usually ships in 2-12 days

0

47

Murray 1734134SM

POWER STEERING ASSEMBLY, 32CC, 5 Ports

Note: (Includes Ref. Nos. 50,51,52,53,54 & 55)

$1094.99

$

Usually ships in 2-12 days

0

49

Murray 1733230SM

FITTING, Hose Elbow Perma Push 9/16-18

$103.99

$

Usually ships in 2-12 days

0

50

Murray 1733212SM

HOSE ASSEMBLY, 46"

Note: Port L

$104.99

$

In Stock, only 2 left!

0

51

Murray 1733780SM

HOSE ASSEMBLY, 26"

Note: Port P

$113.99

$

Usually ships in 2-12 days

0

52

Murray 1733214SM

HOSE ASSEMBLY, 18"

Note: Port T

$66.99

$

Usually ships in 2-12 days

0

53

Murray 1733215SM

HOSE ASSEMBLY, 20"

Note: Port E

$100.99

$

Usually ships in 2-12 days

0

54

Murray 1733413SM

HOSE ASSEMBLY, 50"

Note: Port R

$106.99

$

In Stock, only 1 left!

0

55

Murray 1732449SM

POWER STEERING UNIT, 32CC, 5 Ports

$

$

Not available
