107.250070 (2691088-00) - Craftsman CTX9500 Series 54" Lawn Tractor, 30hp (2012) Frame Group - Power Steering Parts Diagram

CTX9500 Series 54" Lawn Tractor, 30hp

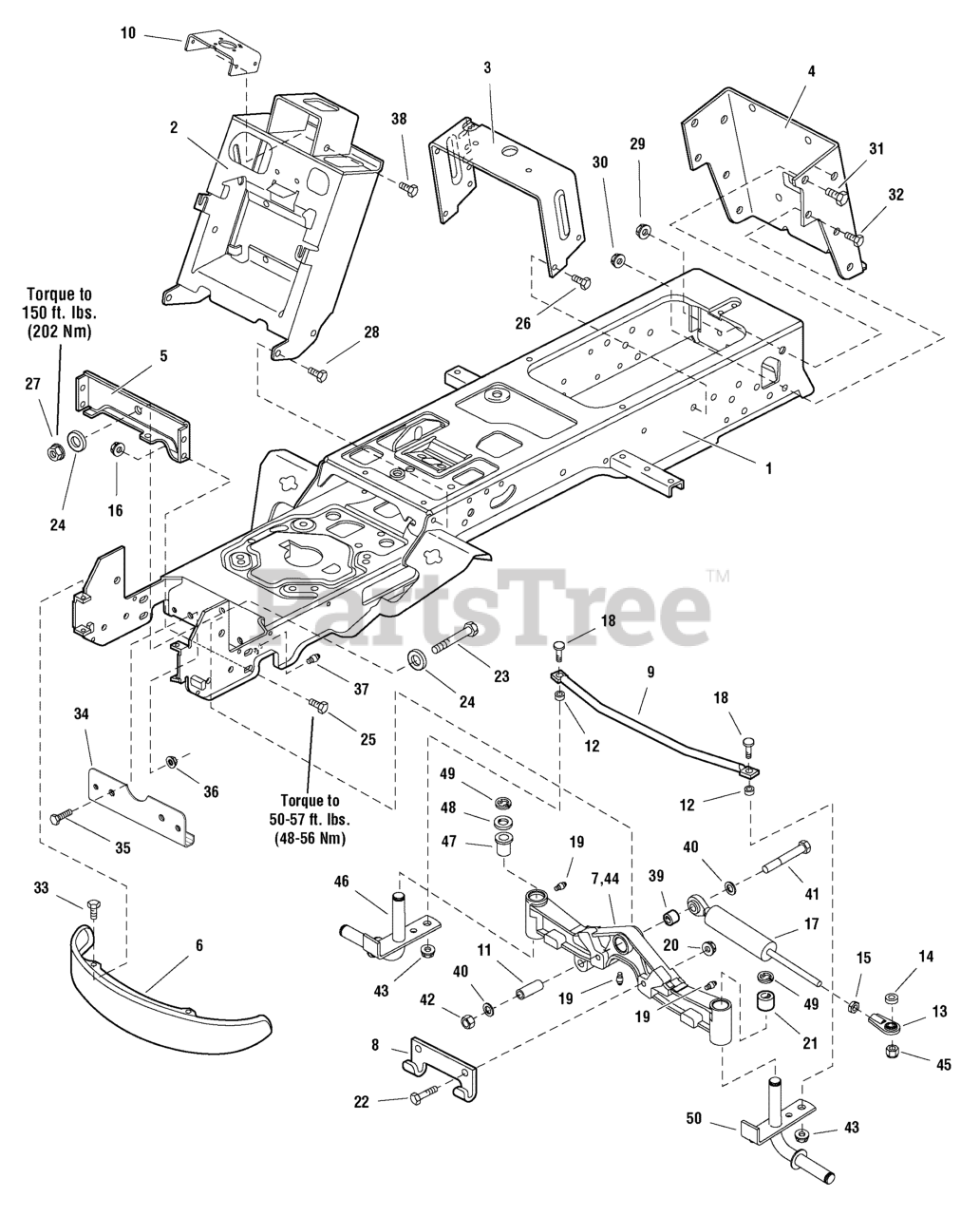

Frame Group - Power Steering Parts Diagram

  • Title

1

Murray 1733765A

FRAME ASSEMBLY, Front & Rear
(Superseded to 1733765ASM)

$922.99

$

Usually ships in 2-12 days

0

2

Murray 1733139A

TOWER & SUPPORT ASSEMBLY
(Superseded to 1733139ASM)

$233.99

$

Usually ships in 2-12 days

0

3

Murray 1723528A

SUPPORT, Seat Deck
(Superseded to 1723528ASM)

$23.99

$

Usually ships in 2-12 days

0

4

Murray 1722602A

BACKPLATE, Hitch
(Superseded to 1722602ASM)

$122.99

$

Usually ships in 2-12 days

0

5

Murray 1722212A

PLATE, Axle Support
(Superseded to 1722212ASM)

$33.99

$

Usually ships in 2-12 days

0

6

Murray 1721805A

BUMPER
(Superseded to 1721805ASM)

$59.99

$

Usually ships in 2-12 days

0

7

Murray 1732937A

AXLE, SPINDLES & BUSHINGS ASSEMBLY
(Superseded to 1732937ASM)

Note: (Includes Ref. Nos. 19, 21, 44, 45, 46, 47, 48, 49 & 50)

$308.99

$

Usually ships in 2-12 days

0

8

Murray 1721918A

HOOK, "J"
(Superseded to 1721918ASM)

$31.99

$

In Stock, Qty 9

0

9

Murray 1732759A

ROD, Tie, Flat Ends
(Superseded to 1732759ASM)

$

$

Not available

10

Murray 1733044A

SUPPORT, Steering Unit
(Superseded to 1733044ASM)

$23.99

$

Usually ships in 2-12 days

0

11

Murray 1721752

SPACER, Powdered Metal
(Superseded to 1721752SM)

$14.99

$

In Stock, Qty 18

0

12

Murray 1611705

SPACER
(Superseded to 1611705SM)

$4.49

$

In Stock, Qty 17

0

13

Murray 1702779

JOINT, Ball, 1/2-20 Thread
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 12

0

14

Murray 1719725

SPACER
(Superseded to 1719725SM)

$9.99

$

Usually ships in 2-12 days

0

15

Murray 1919262

NUT, Hex Jam, 1/2-20
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

16

Murray 1930645

NUT, Hex Flange, 3/8-16 Two-Way Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Murray 1732439

CYLINDER, Hydraulic Steering
(Superseded to 1737057YP)

$512.99

$

Usually ships in 2-12 days

0

18

Murray 1931350

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

19

Murray 1704314

FITTING, Lube 1/4 Drive
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

20

Murray 1930650

NUT, Hex Flange 7/16-14 Two Way Lock
(Superseded to 1930650SM)

$5.49

$

In Stock, only 4 left!

0

21

Murray 1732208

SPACER, Powdered Metal
(Superseded to 1732208SM)

$7.99

$

In Stock, only 1 left!

0

22

Murray 1927531

CAPSCREW, Hex Head 7/16-14 x 2 G8
(Superseded to 1927531SM)

$5.49

$

In Stock, Qty 5

0

23

Murray 2860645

CAPSCREW, Hex Head 5/8-11 x 3-1/2 G5
(Superseded to 2860645SM)

$8.99

$

In Stock, only 3 left!

0

24

Murray 1960035

WASHER, 5/8
(Superseded to 1960035SM)

$4.49

$

In Stock, only 2 left!

0

25

Murray 1933260

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

26

Murray 1664847

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

27

Murray 2860646

NUT, Hex Flange 5/8-11 Two Way Lock
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

28

Murray 1923683

SCREW, Hex Washer Head Taptite 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

29

Murray 2860668

NUT, Hex Flange 1/2-13 Whiz Lock
(Superseded to 2860668SM)

$2.49

$

Usually ships in 2-12 days

0

30

Murray 1928352

NUT, Hex Flange 3/8-16 Whiz Lock Large
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

31

Murray 1923114

CAPSCREW, Hex Head 1/2-13 x 1 G5
(Superseded to 1923114SM)

$3.99

$

In Stock, only 2 left!

0

32

Murray 1921210

CAPSCREW, Hex Head 3/8-16 x 1 G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

33

Murray 1960086

SCREW, Truss Head Torx Drive 5/16-18 x 7/8
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

34

Murray 1724801A

PLATE, Axle "U" Form
(Superseded to 1724801ASM)

$26.99

$

In Stock, only 1 left!

0

35

Murray 1930591

SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

36

Murray 1931277

NUT, Hex Flange 5/16-18 Whiz Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

37

Murray 2821133

FITTING, Lube 1/4 Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

38

Murray 1924856

SCREW, Hex Washer Head Taptite 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

39

Murray 1733912A

SPACER
(Superseded to 1733912ASM)

$13.99

$

Usually ships in 2-12 days

0

40

Murray 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

41

Murray 1960713

CAPSCREW, Hex Head
(Superseded to 1960713SM)

$11.99

$

Usually ships in 2-12 days

0

42

Murray 1960714

NUT, Hex Toplock
(Superseded to 1960714SM)

$5.99

$

Usually ships in 2-12 days

0

43

Murray 1960339

NUT, Hex Flange, Machine Lock 3/8-16
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

44

Murray 1733851

AXLE, Front Casting
(Superseded to 1733851SM)

$145.99

$

Usually ships in 2-12 days

0

45

Murray 1960355

NUT, Hex Lock ESNA Heavy 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

46

Murray 1732939

SPINDLE & ARM ASSEMBLY, R.H.
(Superseded to 1732939AYP)

$70.99

$

Usually ships in 2-12 days

0

47

Murray 1721682

BUSHING, Axle
(Superseded to 1721682SM)

$5.49

$

In Stock, Qty 20+

0

48

Murray 1919394

WASHER, 1
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

49

Murray 2832577

RING, Retaining, Extension
(Superseded to 2832577SM)

$4.49

$

In Stock, Qty 20+

0

50

Murray 1734202

SPINDLE & ARM ASSEMBLY, L.H.
(Superseded to 1734531ASM)

$

$

Not available
