107.250060 (2691087-00) - Craftsman CTX9500 Series 52" Lawn Tractor, 26hp (2012) Transmission SERVICE PARTS - Tuff Torq K66L (1733941) Parts Diagram

CTX9500 Series 52" Lawn Tractor, 26hp

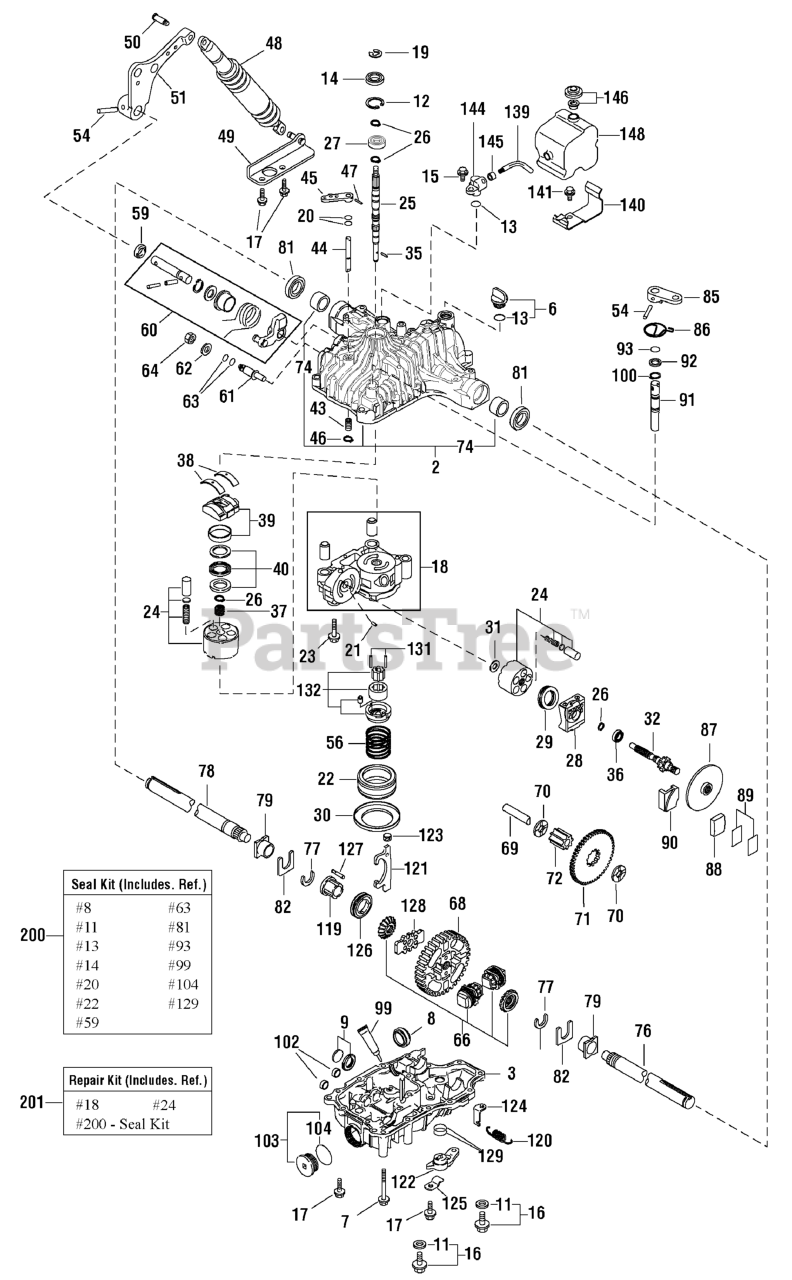

Transmission SERVICE PARTS - Tuff Torq K66L (1733941) Parts Diagram

  • Title

1

Murray 1721952SM

TRANSAXLE, Tuff Torq K66L
(Superseded to 1733941SM)

$2592.99

$

Usually ships in 2-12 days

0

2

*KIT, Upper Case

$

$

Not available

3

Murray 1724694SM

HOUSING, Lower

$259.99

$

Usually ships in 2-12 days

0

6

Murray 1724696SM

CAP, M20B

$8.99

$

Usually ships in 2-12 days

0

7

Murray 1718226SM

CAPSCREW, 8 x 75

$4.49

$

Usually ships in 2-12 days

0

8

Murray 1720761SM

FILTER

$42.99

$

Usually ships in 2-12 days

0

9

Murray 1718065SM

MAGNET, Complete

$14.99

$

Usually ships in 2-12 days

0

11

Murray 1720796SM

WASHER, Seal, 10

$

$

Not available

12

Murray 1708650SM

RING, Snap, C 35

$4.99

$

Usually ships in 2-12 days

0

15

Murray 1724695SM

BOLT, 8 x 20

$1.99

$

Usually ships in 2-12 days

0

16

*KIT, Drain Bolt

$

$

Not available

17

Murray 1707789SM

SCREW, Tapping, 8 x 30

$6.99

$

Usually ships in 2-12 days

0

18

Murray 1724697SM

CASE, Center

$512.99

$

Usually ships in 2-12 days

0

19

Murray 1718076SM

E-RING, 15

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1718070SM

PIN, 3 x 9.8

$

$

Not available

22

Murray 1725633SM

FILTER

$95.99

$

Usually ships in 2-12 days

0

23

Murray 1724698SM

BOLT, 10 x 65

$4.99

$

Usually ships in 2-12 days

0

24

*KIT, Cylinder Block

$

$

Not available

25

*SHAFT, Pump

$

$

Not available

26

Murray 1708672SM

RING, Snap, S15

$5.49

$

Usually ships in 2-12 days

0

27

Murray 1708673SM

BEARING

$24.99

$

Usually ships in 2-12 days

0

28

*HOUSING, Motor

$

$

Not available

29

Murray 1708675SM

BEARING, Thrust

$83.99

$

Usually ships in 2-12 days

0

30

*CAP, Filter

$

$

Not available

31

Murray 1718084SM

WASHER, 12 x 24 x 1

$4.49

$

Usually ships in 2-12 days

0

32

Murray 1724701SM

MOTOR SHAFT/GEAR (10T)

$210.99

$

Usually ships in 2-12 days

0

35

Murray 1722223SM

PIN, 3 x 13.8

$2.99

$

Usually ships in 2-12 days

0

36

Murray 1724702SM

BEARING, 6302DUC3

$29.99

$

Usually ships in 2-12 days

0

37

Murray 1708669SM

SPRING, Pump

$3.99

$

Usually ships in 2-12 days

0

38

Murray 1708677SM

BEARING, Thrust

$25.99

$

Usually ships in 2-12 days

0

39

*ASSEMBLY, Swash Plate

$

$

Not available

40

*KIT, Thrust Bearing

$

$

Not available

43

*SPRING, 25

$

$

Not available

44

*SHAFT, Bypass

$

$

Not available

45

Murray 1720418SM

LEVER, Bypass

$14.99

$

Usually ships in 2-12 days

0

46

Murray 1718061SM

RING, Snap, 10

$

$

Not available

47

*SPRING PIN 3.0A x 20

$

$

Not available

48

Murray 1718039SM

SHOCK ABSORBER, K65

$240.99

$

In Stock, only 1 left!

0

49

Murray 1724704SM

STAY

$30.99

$

Usually ships in 2-12 days

0

50

Murray 1724705SM

PIN

$3.49

$

Usually ships in 2-12 days

0

51

Murray 1724706SM

CONTROL LEVER A

$

$

Not available

54

Murray 1718100SM

PIN, Roll, 6 x 40
(Superseded to 1960588SM)

$4.49

$

In Stock, only 1 left!

0

56

*CHARGE SPRING

$

$

Not available

60

*KIT, Control Shaft

$

$

Not available

61

Murray 1721184SM

FULCRUM

$41.99

$

Usually ships in 2-12 days

0

62

Murray 1708689SM

WASHER, 12

$3.99

$

Usually ships in 2-12 days

0

64

Murray 1708692SM

NUT 12

$2.99

$

Usually ships in 2-12 days

0

66

*KIT, Differential Gear

$

$

Not available

68

*GEAR, Final

$

$

Not available

69

*SHAFT, Final Pinion

$

$

Not available

70

Murray 1724715SM

WASHER, 15 x 35 x 3.2

$3.99

$

Usually ships in 2-12 days

0

71

Murray 1724716SM

GEAR, Reduction

$71.99

$

Usually ships in 2-12 days

0

72

Murray 1724717SM

PINION, Final

$109.99

$

Usually ships in 2-12 days

0

74

Murray 1724693SM

BUSHING, 25.4

$6.99

$

Usually ships in 2-12 days

0

76

*SHAFT, Axle, Left

$

$

Not available

77

Murray 1720859SM

RING, Retaining, 23

$3.99

$

Usually ships in 2-12 days

0

78

*SHAFT, Axle, Right

$

$

Not available

79

Murray 1720860SM

BUSHING, 25.4

$8.49

$

Usually ships in 2-12 days

0

81

Murray 1718264SM

SEAL, S25.4 x 42 x 8

$24.99

$

In Stock, Qty 6

0

82

Murray 1720858SM

WASHER, Thrust

$12.99

$

In Stock, only 1 left!

0

85

Murray 1724721SM

LEVER, Brake

$32.99

$

Usually ships in 2-12 days

0

86

Murray 1724722SM

SPRING, Brake Return

$10.99

$

Usually ships in 2-12 days

0

87

Murray 1724723SM

DISK, Brake

$21.99

$

Usually ships in 2-12 days

0

88

*SHOE, Brake

$

$

Not available

89

Murray 1724725SM

KIT, Shim

$3.99

$

Usually ships in 2-12 days

0

90

Murray 1724726SM

BRAKE ACTUATOR

$8.99

$

Usually ships in 2-12 days

0

91

*SHAFT, Brake

$

$

Not available

92

Murray 1724728SM

WASHER, 16 x 23 x 1.6

$6.49

$

Usually ships in 2-12 days

0

99

*SEALANT

$

$

Not available

100

Murray 1707912SM

RING, Snap

$3.49

$

In Stock, only 2 left!

0

102

*FLANGE PLUG 20

$

$

Not available

103

*CAP KIT

$

$

Not available

104

*O-RING, 1A 24040

$

$

Not available

119

*COLLAR 25.4

$

$

Not available

120

Murray 1724741SM

SLIDER, Differential Lock

$13.99

$

Usually ships in 2-12 days

0

121

*FORK, Differential Lock

$

$

Not available

122

*LEVER, Differential Lock

$

$

Not available

123

*LEVER PIVOT

$

$

Not available

124

Murray 1724734SM

HOOK, Spring

$7.49

$

Usually ships in 2-12 days

0

125

Murray 1724735SM

PLATE, Arm

$8.49

$

Usually ships in 2-12 days

0

126

Murray 1724736SM

SLIDER, Differential Lock

$67.99

$

Usually ships in 2-12 days

0

127

*PIN, Differential Lock

$

$

Not available

128

*PLATE, Differential Lock

$

$

Not available

131

*SPRING PIN, 4 x 18

$

$

Not available

132

*KIT, Charge Pump

$

$

Not available

139

*PIPE

$

$

Not available

140

*BRACKET, Tank

$

$

Not available

141

Murray 1707890SM

SCREW, Tapping, 8 x 20

$3.49

$

In Stock, only 1 left!

0

144

*FITTING

$

$

Not available

145

Murray 1724745SM

SEAL, 8

$5.49

$

In Stock, only 1 left!

0

146

*VENT VALVE, 15

$

$

Not available

148

Murray 1724742SM

TANK, Reservoir

$

$

Not available

200

Murray 1731977YP

SEAL KIT

$262.99

$

Usually ships in 2-12 days

0

201

*KIT, Repair

Note: (Used on K66C, L, S & Y)

$

$

Not available
